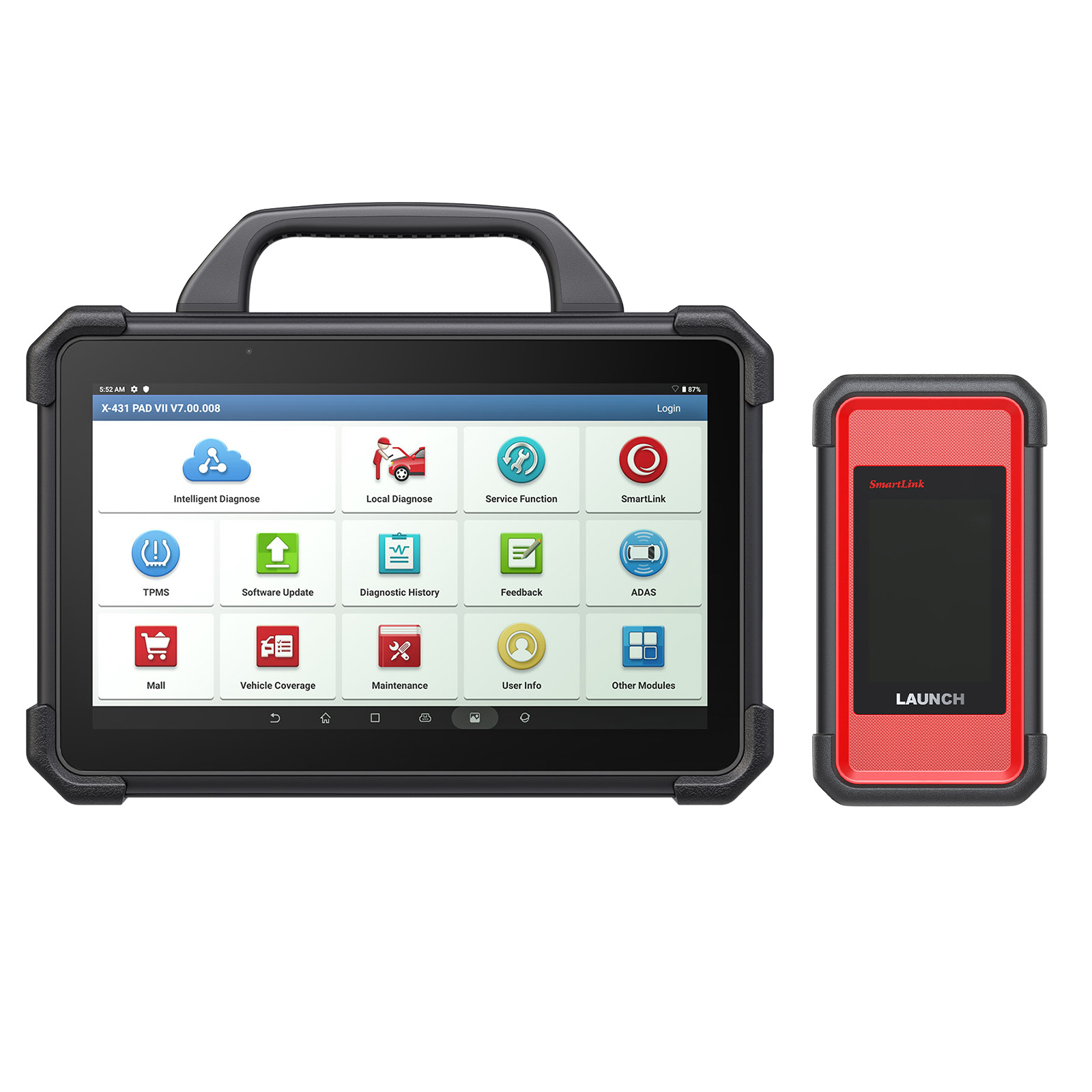

2024 Launch PAD VII Elite PAD7 with Smartlink C VCI Automotive Diagnostic Tool Support Online Coding and Programming

Original 2024 Launch X-431 PAD VII Elite PAD 7 with Smartlink C VCI Automotive Diagnostic Tool Support Online Coding and Programming

NEW-released ultimate scan tool LAUNCH X431 PAD VII ELITE is an unexpected high-end diagnostic tool from LAUNCH, comes with the ADAS calibration function, 60+ service functions, TPMS service, and 8 extended modules functions. New Smartlink C VCI powers technicians a new diagnostic level without the limitation of diagnostic functions, tools, and vehicle types.

2024 Launch X-431 PAD VII Elite PAD 7 Highlights:

1. With 2 Years Free Update Online
2. Global Version Without IP Limitation
3. Topology mapping gives a visual checking on DTCs and all systems communication status, Guided function for VW and AUDI.
4. Support Commercial Vehicle and Passenger Car Diagnose ( need extra HD software ), Support J2534, CAN FD, DoIP.
5. Full System Vehicle Coverage for U.S., Asian and European Markets Over 110 Brands, Which is Continually Updated.
6. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
7. Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. Support Advanced Coding and Programming functions: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru. (Can’t perform in United States, Canada and Spain)
9. The New Module “MALL” is Now Available for All Users to Expand and Upgrade Their X-431 PAD VII Elite with More Diagnosis Software.
10. The X-431 PAD VII Elite supports ADAS calibration and eight extended modules:

•  X431 ADAS Moblie/ ADAS PRO, ADAS Activation Card
•  X431 XPROG-3 GIII Key Matching
•  X431 WIFI Printer
•  Launch VSP-600 Video Scope
•  X431 TSGUN or Launch X431 i-TPMS
•  LAUNCH X431 O2-2 Oscilloscope Scopebox and Launch X-431 Sensorbox S2-2.
•  BST360 battery tester.

Newly Added Functions:

• Online ECU Programming: Easily reprogram ECU modules on 30+ vehicle brands.

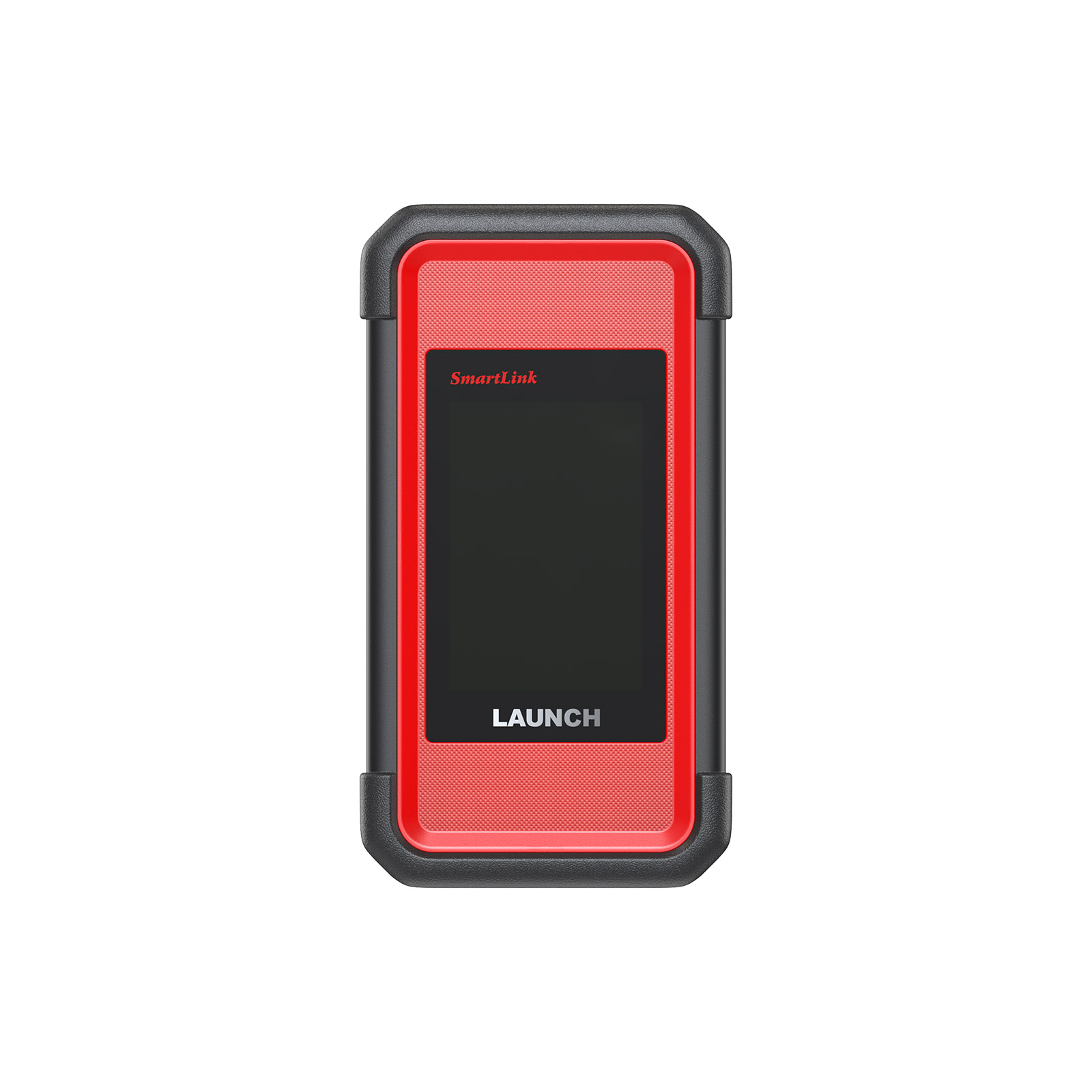

• 3-in-1 SmartLink C Device: Work as VCI to obtain vehicle data; Provide dual diagnostic modes; Act as a J2534 programming device.
• New Protocols: J2534/D-PDU/RP1210 & CAN 2.0/CAN FD/DoIP for faster diagnostics.
• Topology Mapping: Visually show you all system relationships and DTC in color topology.
• OBD PIN Detection: Detect the vehicle protocols and OBDII pin voltage status to help technicians judge the OBD2 interface.
• Diagnostic Plan: Provides a plan to guide you on how to repair based on the currently detected fault codes.
• User Information: A large amount of diagnostic data is well stored in this module, including Reports, Order, Live Data Stream, etc.

Hot Diagnostic Functions:

• 60+ Reset Functions: Cover various Reset/Relearn/Match/Calibration for 99% of cars.
• Wider Coverage: Serve commercial vehicles and 99% of passenger cars (up to 200 brands).
• Higher Updating Frequency: Timely one-click updating could fix all the bugs and bring newer models.
• VAG Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and make basic settings.
• Bi-directional Control: Quickly pinpoint the vehicle problems of windows, doors, sunroof, etc.

Super Hardware Configuration:

• [5G WiFi Communication] automatically connects within 20 meters, far better than traditional BT connection in transmission rate, diagnostic distance, and anti-interference.
• [Universal Physical Interfaces] include USB Type C, USB Type A, Micro-SD, Micro-SIM slot (LTE version), etc.
• [Core Processor + Android 9.0 OS] enhance the diagnostic speed of the multi-task process.
• [8+256GB Memory] ensures the smooth multi-task operation and keeps all the customer information, diagnostic data & files, and repair recordings.
• [13.3′ Touchscreen with 1920*1080] gives you a smoother view experience.
• [IP65 + Corner Protectors] more waterproof and more resistant to falls

Notes:
1. After 2 Years, Software Subscription click here
2. Can Not Support Online Programming In Spain, Canada, Portugal, Other Countries Won’t Have This Problem
3. PAD VII Elite Can Support ADAS Calibration, But Clients Need To Buy the ADAS Devices To Make It. Without ADAS Devices, Can Not Do ADAS Calibration by PAD VII Elite Only

Superior Hardware Make Diagnosis Faster Than Ever

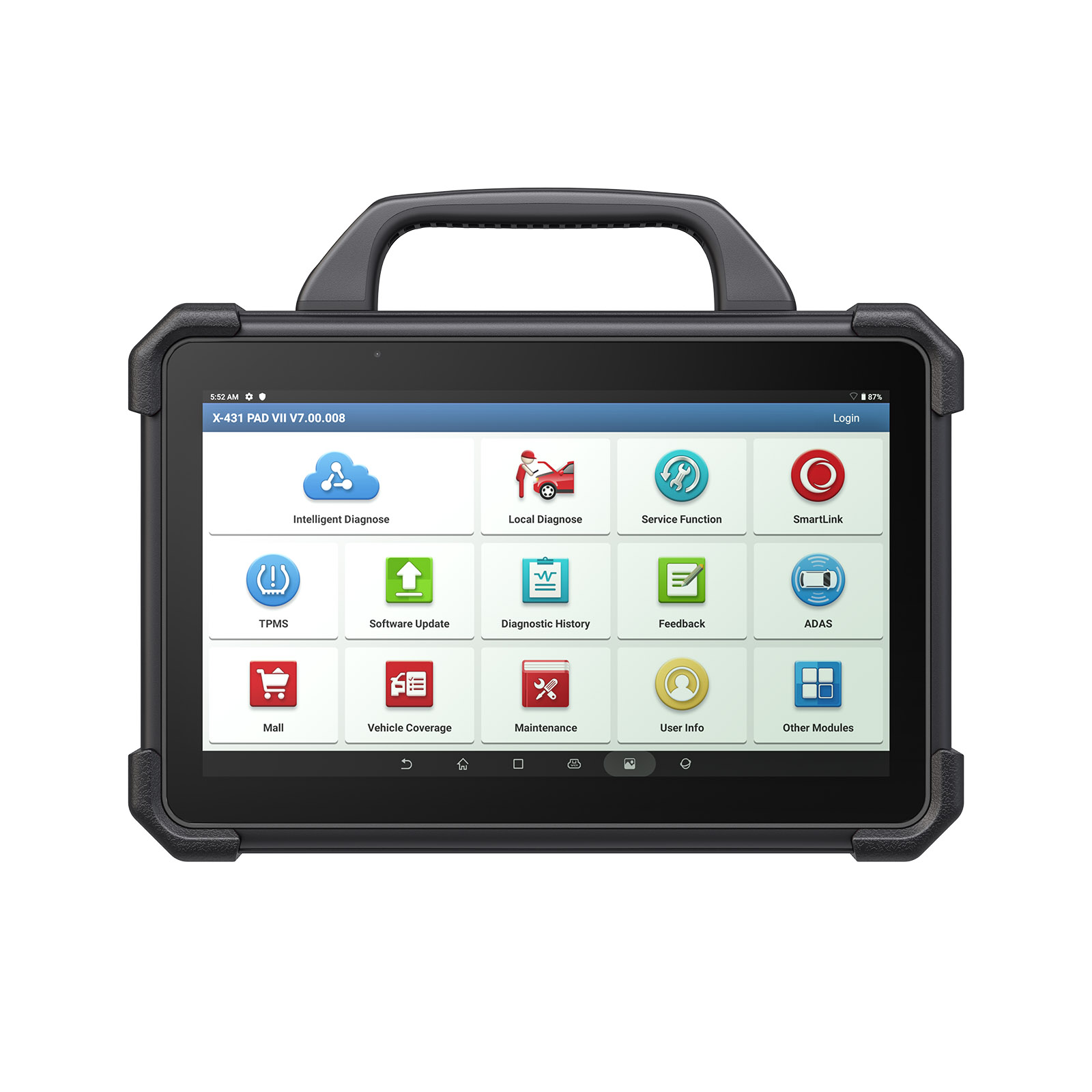

X-431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 60 service functions. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII makes your intelligent diagnosis faster than ever.  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII improves the connection between scanner and VCI into ‘Dual WiFi’ connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.

Launch X431 PAD VII Elite Features:

1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated
2. Upgrade and expand the X-431 PAD VII with more software and service via the new module ‘MALL’ as demanded
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
4. Topology mapping gives a visual checking on DTCs and all systems communication status
5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
7. Intelligent diagnostic enable identify VIN automatically and access system quickly
8. Guided function for VW and AUDI
9. Optional ADAS calibration function increases more revenue
10. Advanced coding and programming function
11. An extended solutio to support TPMS service
12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
13. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
14. The basic functions include read & clear DTC, Bi-directional control, live data graph, wireless software update etc.
15. Build-in repair information and training video modules help to track and fix issue fast

Vehicles Coverage:

Passenger Vehicles:

1. Australian:  AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo

Heavy Duty Vehicles (Optional):

Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Functions:

1. ALL System Diagnosis

Powerful all system diagnostic functions (intelligent diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly

2. Revolutionary Topology Module Mapping + 60+ Advanced Maintenance Services + 35+ Reset & Relearn Services

Revolutionary Topology Module Mapping

• It is the first application of topology module mapping in the field of automotive diagnostics. In terms of visual aspect, LAUNCH X431 PAD VII shows different health statuses in different colors and shows the structure of communication between modules. In the aspect of ease of use, it enables you to press the system module to access the system and display the relevant DTCs.

60+ Advanced Maintenance Services:

• Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW / Audi / Skoda / Seat; **NO extra costs.
• Component Matching: Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
• Online Parameterization: Reset all adaptive data in target systems after ECU module replacement; compatible with VW / Audi / Skoda / Seat.
• Online Calibration: For some car systems’ calibration; compatible with VW / Audi / Skoda / Seat.
• Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.
• Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.
• Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
• Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
• And many more are coming soon.

35+ Reset & Relearn Services

Cover the majority of makes and models worldwide up to 2019/2020/2022 for Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, Gear Learning, AFS Reset, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.

Smartlink Remote Diagnosis Introduction

SmartLink Remote Diagnostics is a brand new remote diagnostic technology that better links remote assistance demanders with professional technicians through the bridge role of SmartLink remote diagnostic service open platform. Professional technicians can carry out remote diagnostic operations on PCs (with J2534 driver and OEM software installed) to assist in the completion of remote diagnostics after users use SmartLink C connector as a J2534 Pass Thru device and connect it to the Ethernet.

3. Advanced ECU Coding and Online Coding

Reliable ECU Data Backup, Faster Recovery & Less Downtime

• When customizing your vehicle, there is always a question: will it be able to revert the changes in case of human error, system failure, or data loss that bricks the vehicle computer?
• This is where the “Backup/Recovery ECU Data” function can prove to be very useful.
• Unlike traditional car scanner backup methods that can be labor intensive and inconsistent, LAUNCH X431 PADVII provides a simple mechanism to back up all your ECU programming & coding data.
• It allows you to make a copy of your current Coding, Adaptations, and other info (such as Advanced ID and Live Data) of a selected control module, and save them as a file into your scan tool as a backup.
• To restore coding or programming values, just select the backup file you need and you’ll effortlessly get reverted back to the old settings/coding in a control module.
• For now this function is compatible with Ben.z all series, and B.M.W F/G/I chassis.
• **NOT universally compatible. Function menus may depend on vehicle’s make, model and year.

Programming Online for Benz & BMW, Save Your Labor Greatly

• LAUNCH stores the Benz & BMW’s massive programming data in the cloud, rather than relying solely on a hard drive, so you won’t lose access if something happens to your hard drive.
• More, LAUNCH PADVII saves time to guide your programming directly. Unlike any scan tools before, it practically anticipates your next move by guiding you through every step you need to find the solution patch while avoiding the steps you don’t, within a highly intuitive user interface that’s simple to learn and operate.
• With this automatic Online Programming, you’ll have the confidence to tackle more challenges than ever before. The only requirements are a stable & solid internet connection, and an external battery charger for your successful operation.

>> Can I use the diagnostic tool to program Au.d.i, VW, Porsche … besides Benz and BMW?

• Answer: Yes, provided you have installed, downloaded the manufacturer’s programming software, and paid for the valid subscription.
• With SmartLink C VCI Box (compatible with J2534-1 & -2; value of 2000+ bucks), you can cost-effectively add new OEM applications for 30+ car brands, with no need to purchase separate, expensive OE scan tools for each brand.

>> What happens if I don’t program a new ECU after installing it on my car?

• Answer: Nothing will happen, because the system doesn’t know how to react, since the PROM that governs the circuits of ECU “what to do” is blank.
• It cannot command the injectors to open or the coil(s) to fire. It cannot command the fuel pump to send fuel. It cannot read the external temperature, or even the temperature of the coolant, because there are no instructions defining what is hooked to the ECU, and there is no information to tell the system when to open the injectors, or for how long.

4. ADAS calibration Function and Extend 8 Module Functions

Optional ADAS calibration function increases more revenue.

5. Expanded Vehicle Coverage With Extra Adapters

Meanwhile, the X-431 PAD VII also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice

6. Multiple Advanced Functions Greatly Improve Work Efficiency

FCA Secure Gateway

LAUNCH X431 PAD VII automotive diagnostic scanner provides a trustworthy authority for technicians, car dealers, automotive engineers, and service shops to undo the SGW and perform all the necessary repair procedures.

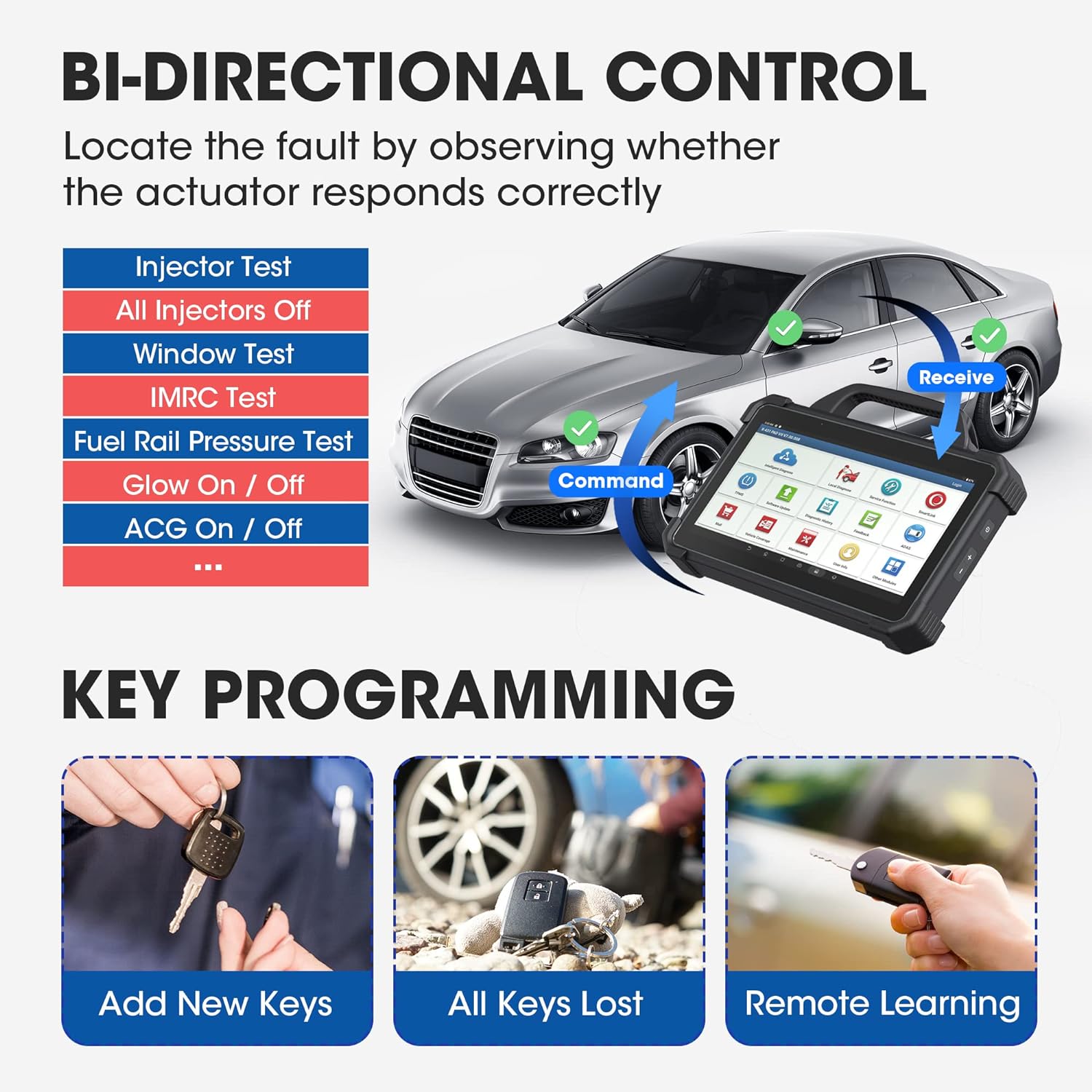

Active Test / Bidirectional Control

LAUNCH X431 PAD VII performs the active test, which bypasses the onboard control systems to send commands to modules to perform specific tests. By monitoring their responses, you can precisely locate the faults, and shorten the troubleshooting time without tearing the vehicle apart. It can:

• Rolling up / down a window;
• Turning the fuel pump on and off;
• Cycling the a/c clutch on and off;
• …

Pin Detection

This module allows you to detect the voltage of the vehicle OBD II diagnostic socket pins and the supported protocol types to help technicians judge the OBD II diagnostic interface.

Note: Before performing this function, please make sure that SmartLink C is properly connected to the vehicle’s DLC port.

Comparison Among X431 Pad III, X431 Pad V and X431 Pad VII

Item Name	X431 PAD III V2.0	X431 PAD V	X431 PAD VII
Configuration
Display	10.1” / IPS 1920*1200	10.1” / IPS 1920*1200	13.3”  / 1920 x 1080 IPS
CPU	2.0GHz Octa-core	2.0GHz Octa-core	2.0GHz Octa-core
Memory	2GB	4GB	8GB
Storage	64GB	64GB	256GB
Camera	8MP Rear + 2MB Front	13MP Rear + 8MB Front	13MP Rear + 8MB Front
VCI Connector	DBScar IV	Smartbox 3.0	Smartlink C
VCI Connection	Bluetooth	2.4GHz & 5GHz dual WiFi	2.4GHz & 5GHz dual WiFi
Battery	15000mAh	9360mAh	71.1Wh (≈19000mAh)
Adjustable Supporting Holder	√	√	√
IP65 Waterproof & Dustproof		√	√
Quick Charge Technology		√	√
Charging Sation		√
Push Push Design

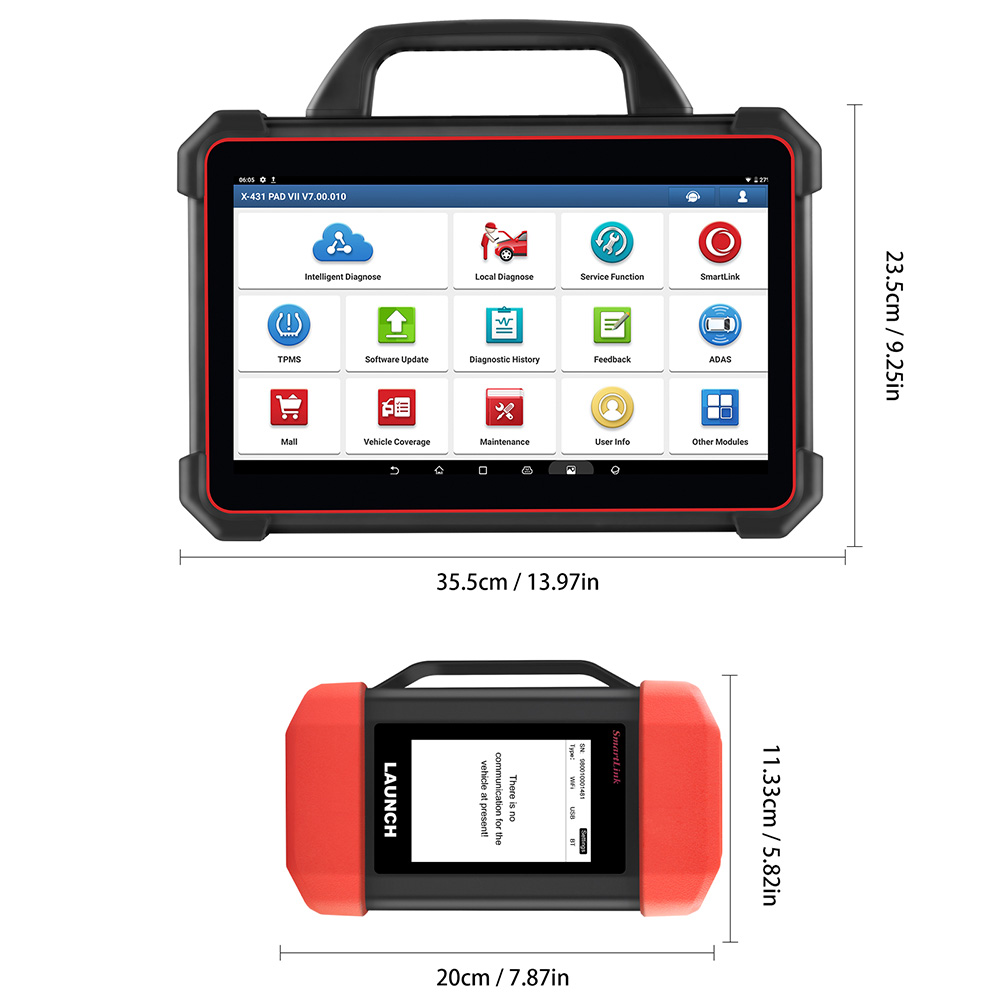

Size	317 * 202 * 53	320 * 211 * 46	353 * 236 * 71
Features
Operating System	Android 5.1.1	Android 7.1	Android 9.0
Full System Diagnosis	√	√	√
OBDII Full Function	√	√	√
Tech-to-Tech Remote Diangosis	√	√	√
Smartlink Remote Diagnosis			√
Auto VIN Identification	√	√	√
Bi-Directional Control	√	√	√
Advanced Coding	√	√	√
VW&AUDI Guided Function	√	√	√
J2534		√	√
DoIP		√	√
RP1210/D-PDU		√	√
Advanced Programming	√	√	√
Complete TPMS Service	with X-431 TSGUN	with X-431 TSGUN	with X-431 TSGUN
Advanced Key Programming	with X-PROG 3	with X-PROG 3	with X-PROG 3
ADAS Calibration	Optional	Optional	Optional
Software Upgrade	WiFi	WiFi	WiFi
Vehicle Coverage	Passenger Cars                                        Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional	Passenger Cars                                        Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional	Passenger Cars                                        Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional
Service Functions	21	26	32 by local diagnosisGet More by Smartlink Remote Diagnosis
Service Function
Brake Reset	√	√	√
Oil Reset	√	√	√
SAS Reset	√	√	√
Battery Match	√	√	√
ABS Bleeding	√	√	√
Elec. Throttle RLRN	√	√	√
TPMS Reset	√	√	√
DPF Regeneration	√	√	√
Gear Learning	√	√	√
Immobilizer	√	√	√
Injector Coding	√	√	√
Sunroof Initialization	√	√	√
SUS Reset	√	√	√
AFS Reset	√	√	√
Gearbox Learning	√	√	√
Adblue Reset	√	√	√
Coolant Bleeding	√	√	√
EGR Adaption	√	√	√
Nox Sensor Reset	√	√	√
Seats Call Bration	√	√	√
Tyre Reset	√	√	√
Windows Calibration		√	√
A/F Reset		√	√
Stop/Start Reset		√	√
Transport Mode		√	√
Language Change		√	√
AC System Relearn			√
ACC Calibration			√
Engine Power Balance Monitoring			√
GPF Regeneration			√
Rotation Angle Sensor Calibration			√
High-Voltage Battery Health Detection			√
More Reset Services			via Smartlink Remote Diagnosis
Compatible Modules
X-431 ADAS PRO	√	√	√
X-431 ADAS Mobile	√	√	√
X-PROG3 Immobilizer	√	√	√
X-PROG Immobilizer	√	√	√
BST360 Battery Tester	√	√	√
WiFi Printer	√	√	√
X-431 TSGUN TPMS device	√	√	√
VSP600 Videoscope	√	√	√
X-431 O2-1 Osciloscope	√	√	√
X-431 S2-2 Sensorbox	√	√	√
HDIII Module	√

Specification:

A. Display Tablet

Item	X-431 PAD VII
Operation System	Andorid 9.0
CPU	Octa-core processor, 2GHz
Display	13.3 inch IPS capacitive touch screen with 1920 x 1080 resolution
Memory	8GB
Storage	256GB
Camera	13MP rear-facing camera (Auto focus), Front 8MP
WiFi	Dual Band 2.4 & 5GHz
Connectivity	Wi-Fi: 2.4G/5GHz dual frequency Universal serial BUS ports (1 x Type-C + 1 x Type-A)
HDMI	MicroHDMI out
Speaker	Two 1.5W speakers
Storage Temperature	-20℃ ~ 70℃
Working Temperature	0℃~50℃

B. SmartLink C Device

Item	Description
Working voltage	DC 9V ~ 36V
Typical power consumption	≤ 6W
Communication via	Bluetooth, Wi-Fi or data cable connection
Operating Temperature	-10℃ ~ 50℃

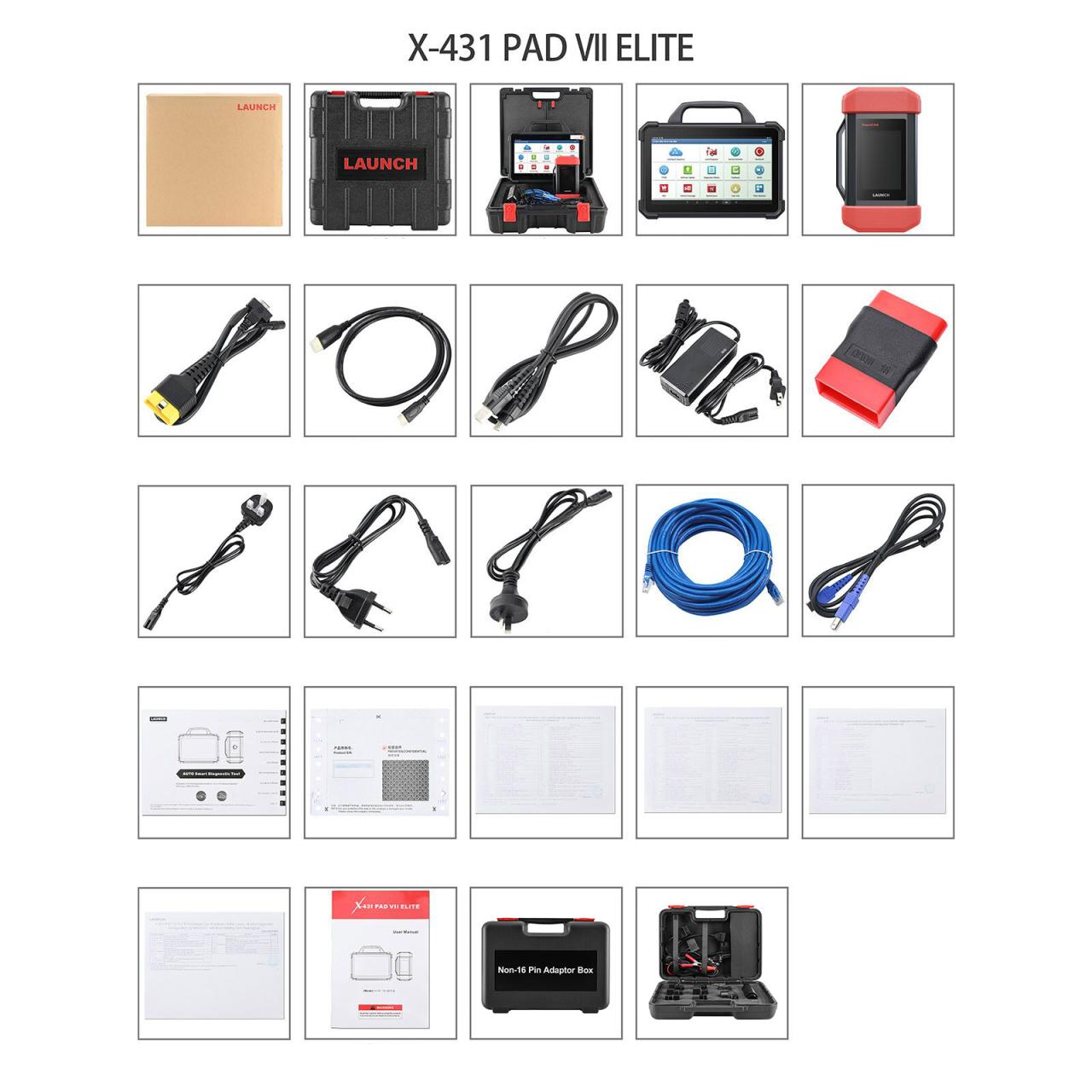

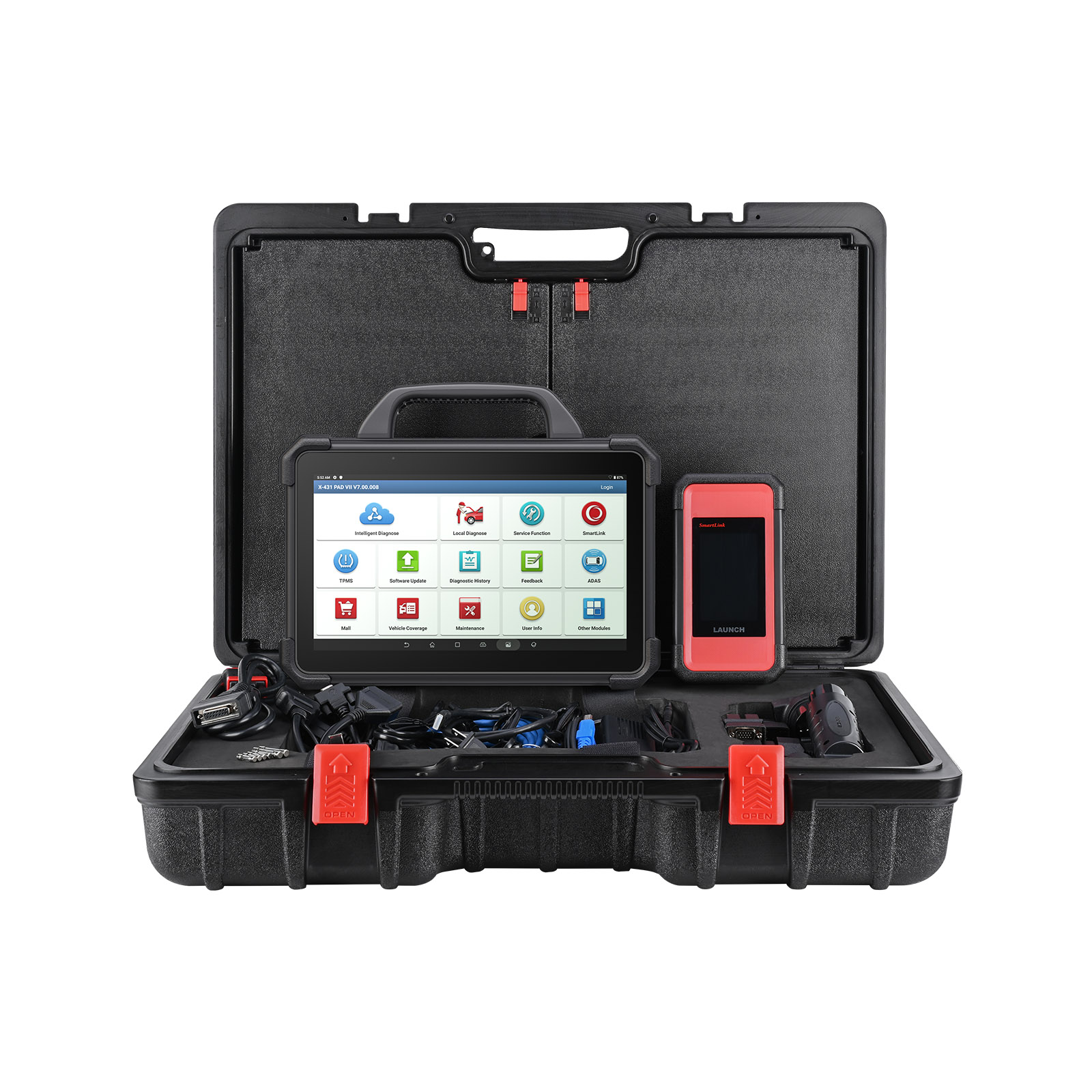

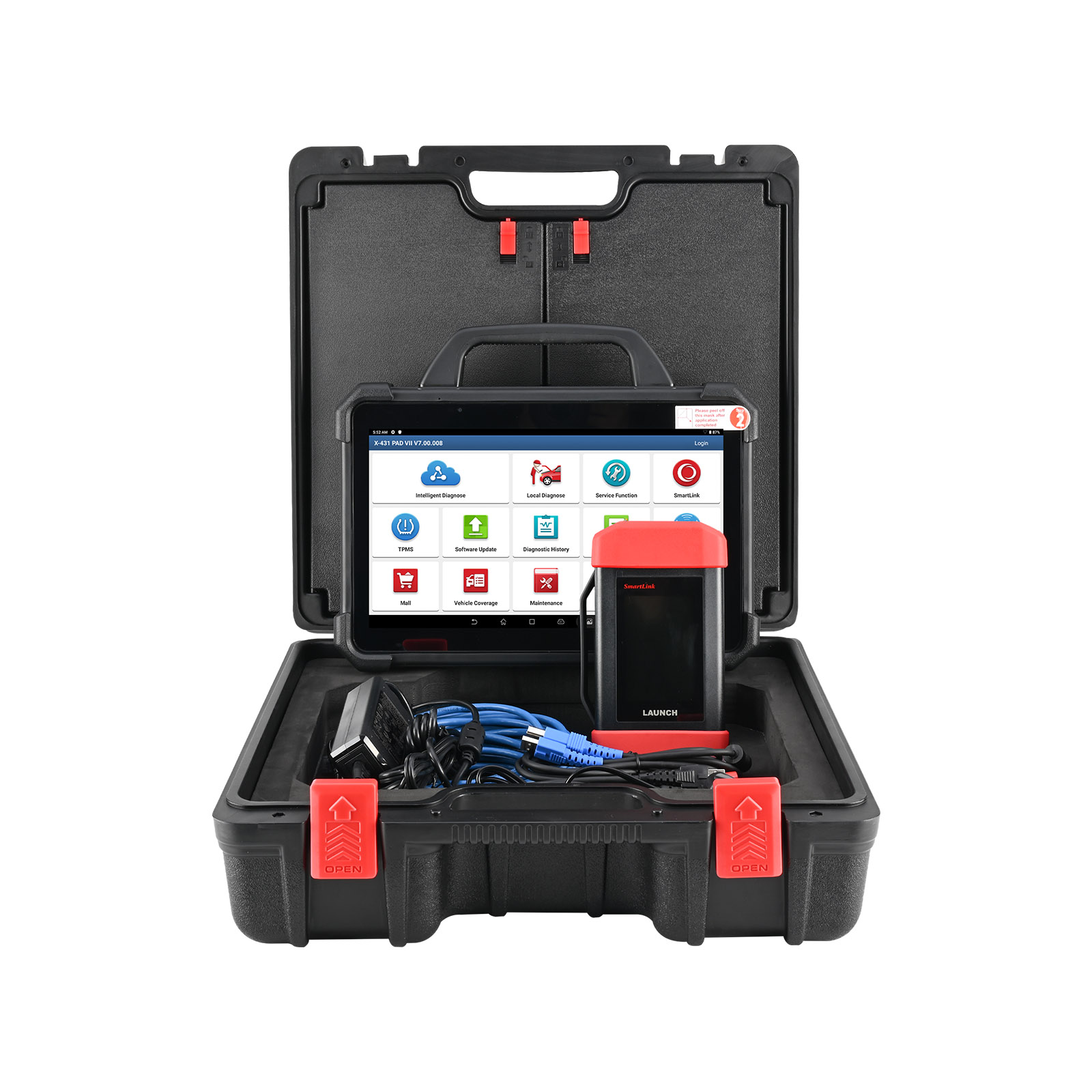

Package List:

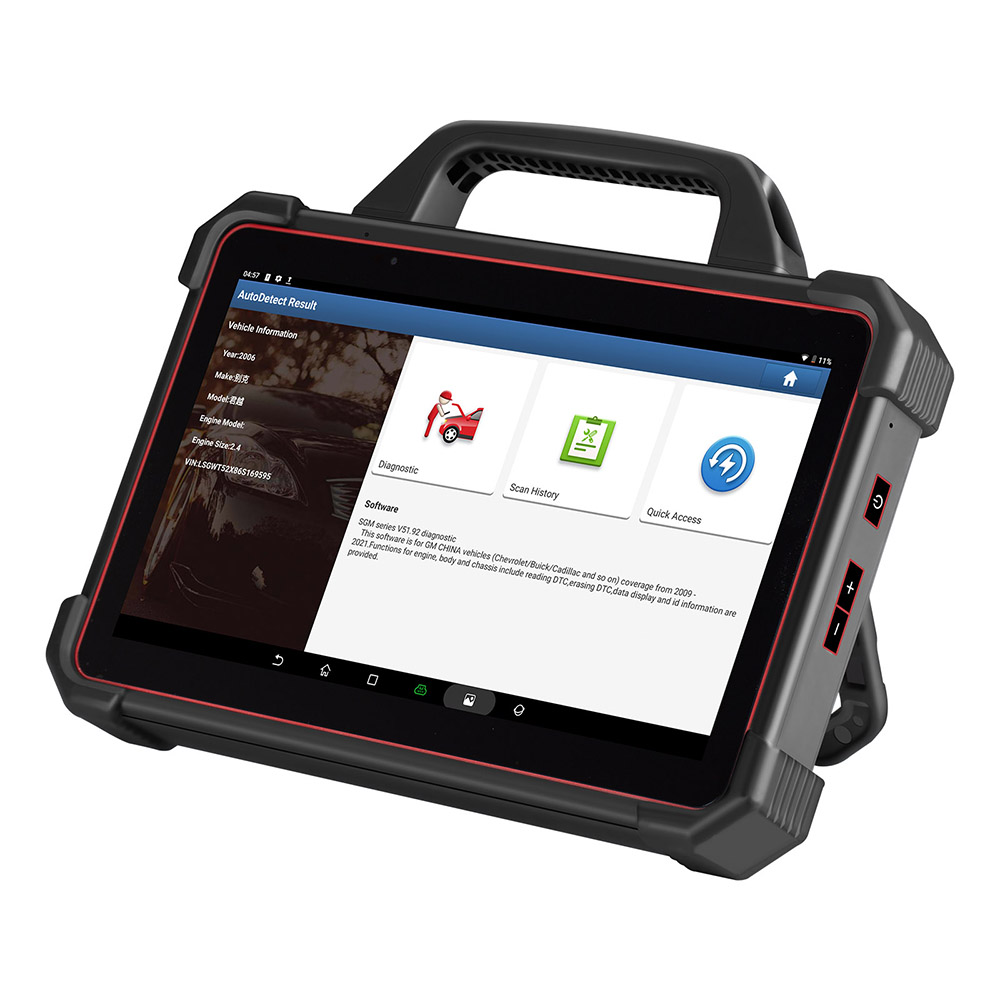

1x X-431 PAD VIImain unit
1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable
1x Non-16pin connector converting cabel
1x Password envelope

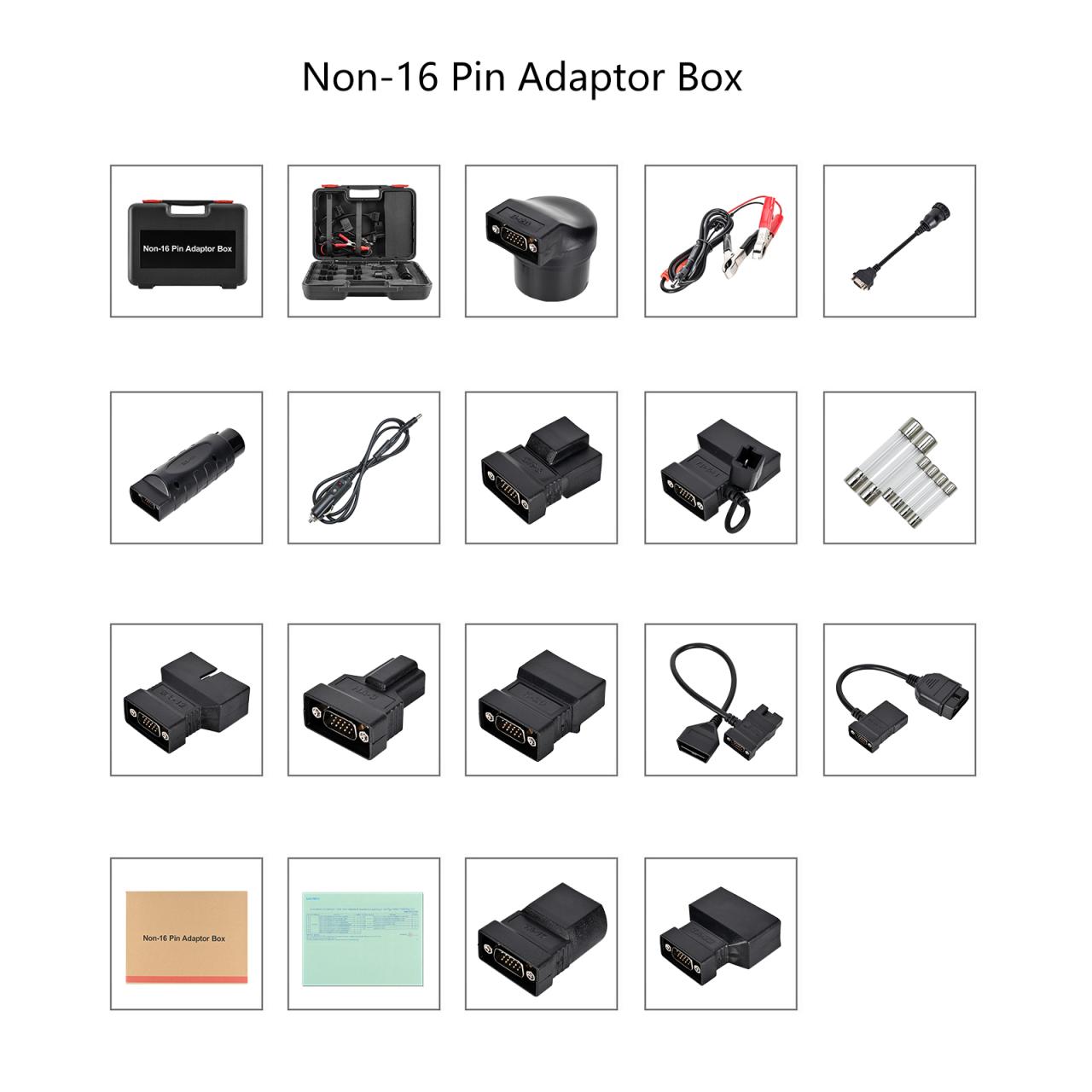

1x Non-16pin connectors set
