Launch X431 ECU Programmer Gearbox Connectors Package for Launch ECU Programmer and X-Prog3
$290.00
Launch X431 ECU Programmer Gearbox Connectors Package, ECU Module Cloning Device for X-prog3, Launch X431 ECU Programmer X-prog3 PC Adapter
The Launch X431 X-PROG3 gearbox clone adapters kit can save time for customers who use jumper wires to connect to the ECU. They only need to find the corresponding cable and plug it into the corresponding ECU to clone directly.
Compatible device: PC Adapter for X-prog3, Launch X-prog3 , X431 ECU programmer

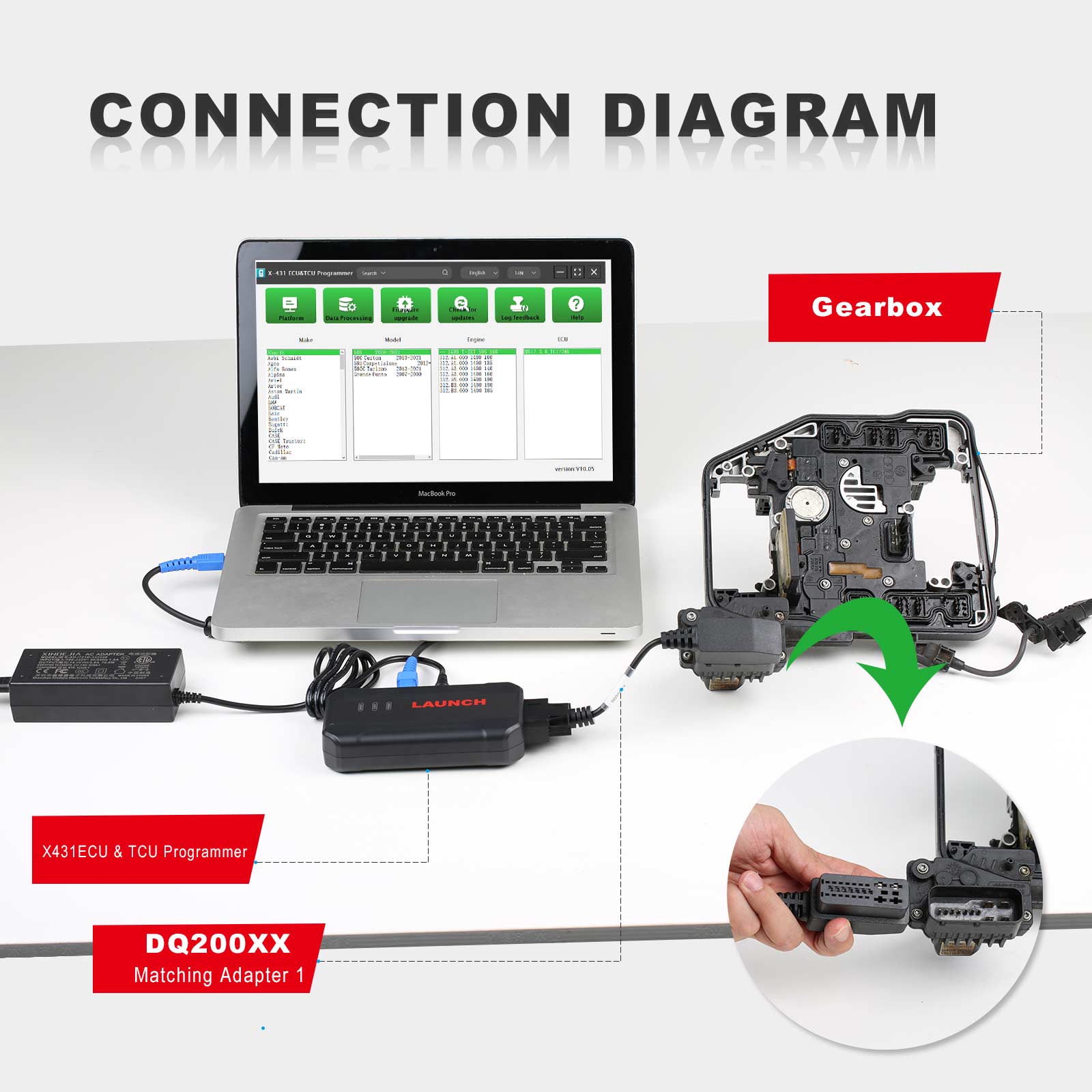

Connection Diagram:
X-prog3 connection
X431 ECU Programmer connection
X prog3 PC Adapter Connection

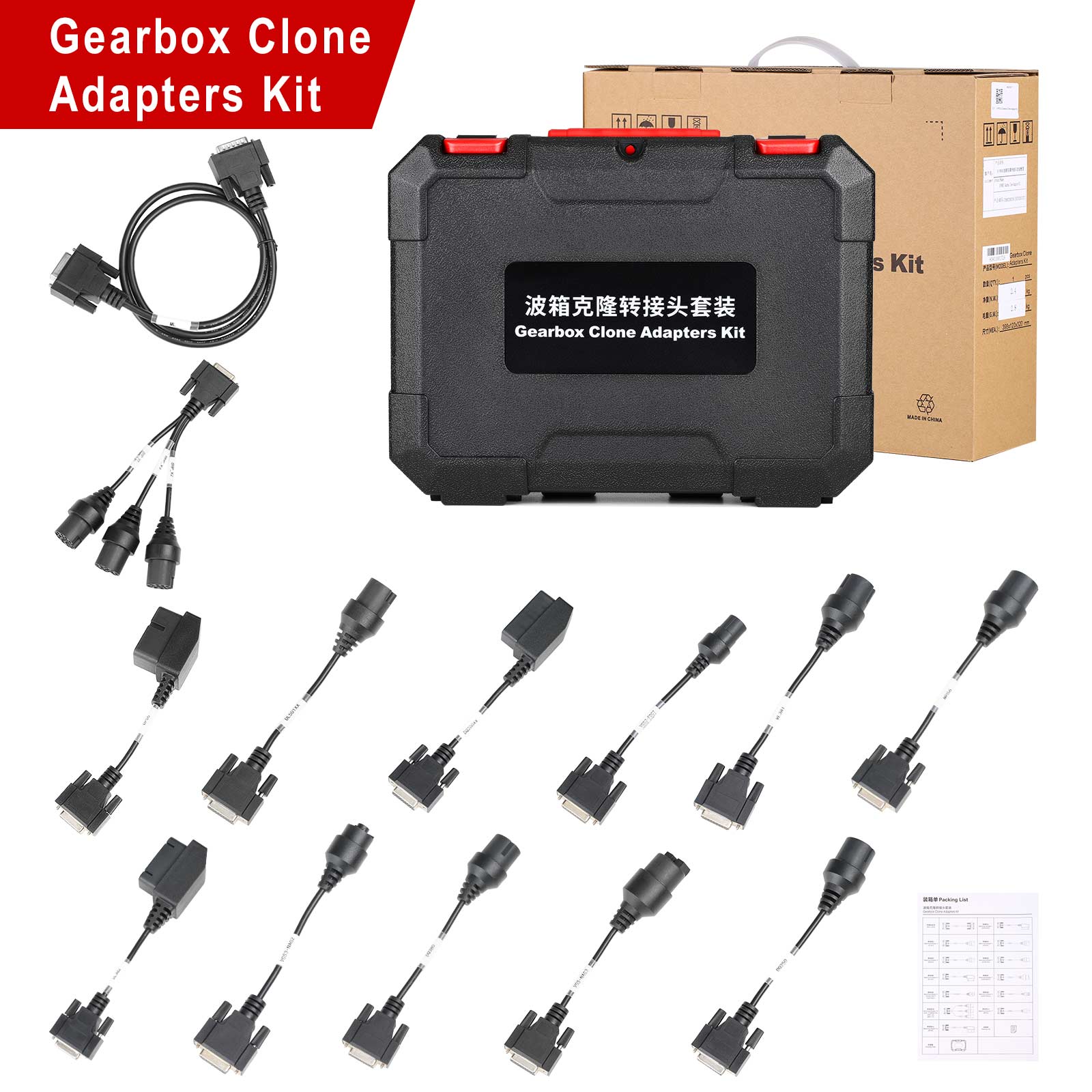

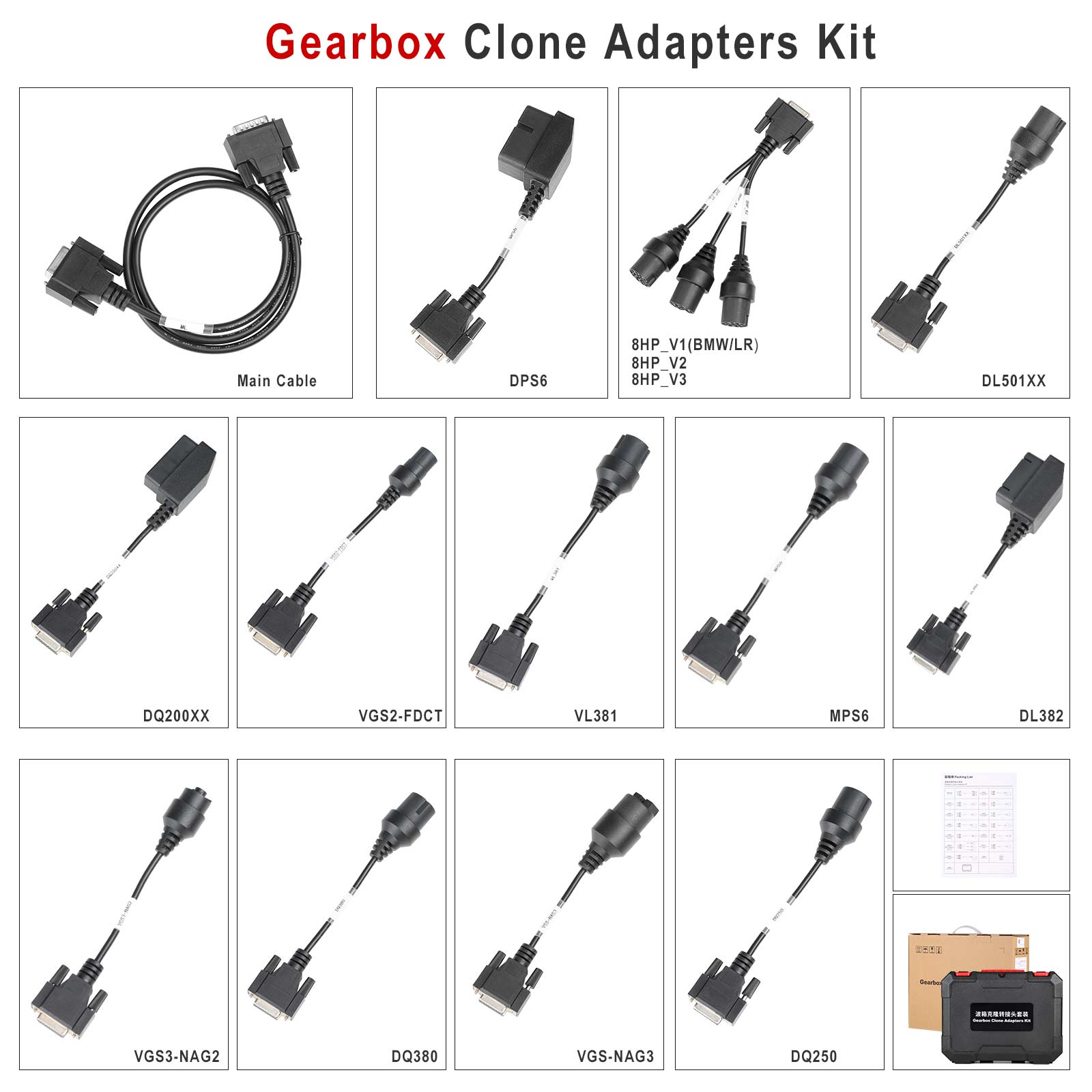

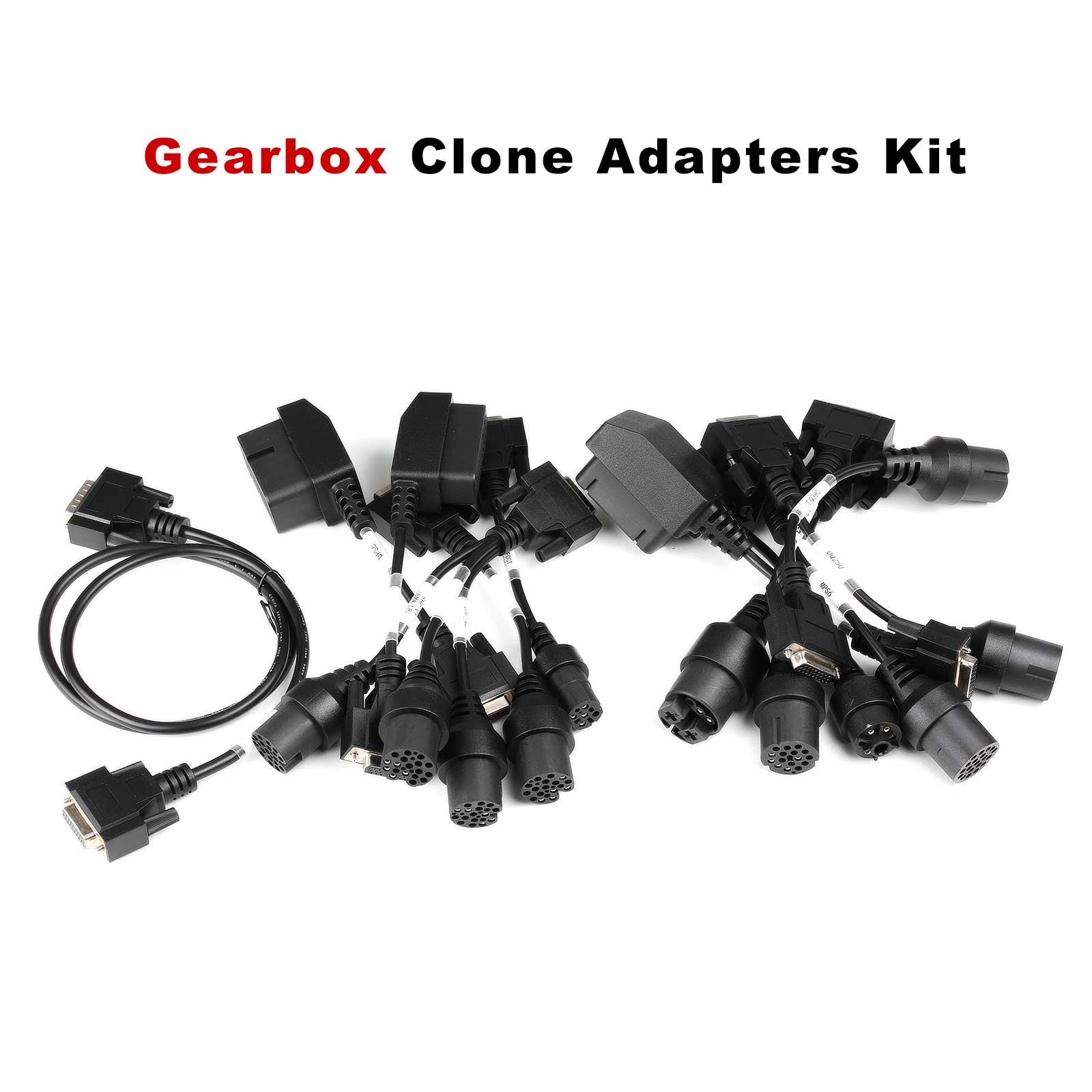

Launch X431 ECU Module Cloning Device Connectors Package
| Accessory Name |
Material code |
function | |

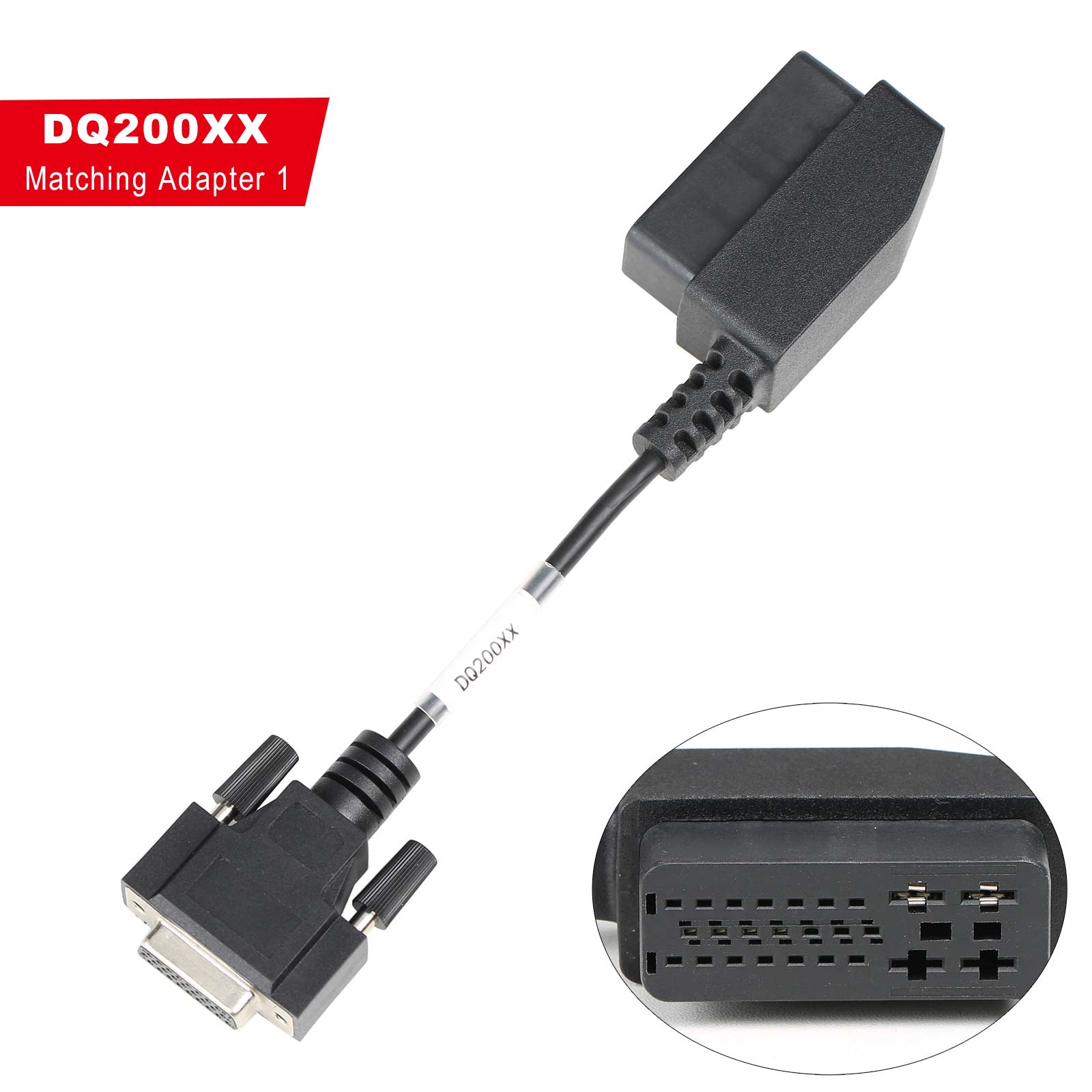

| 1 | X-PROG3 Adapter Cable 1 (DQ200XX) | 307110077 | Used to connect the DQ200XX gearbox, and available models include VW, Audi, etc. |

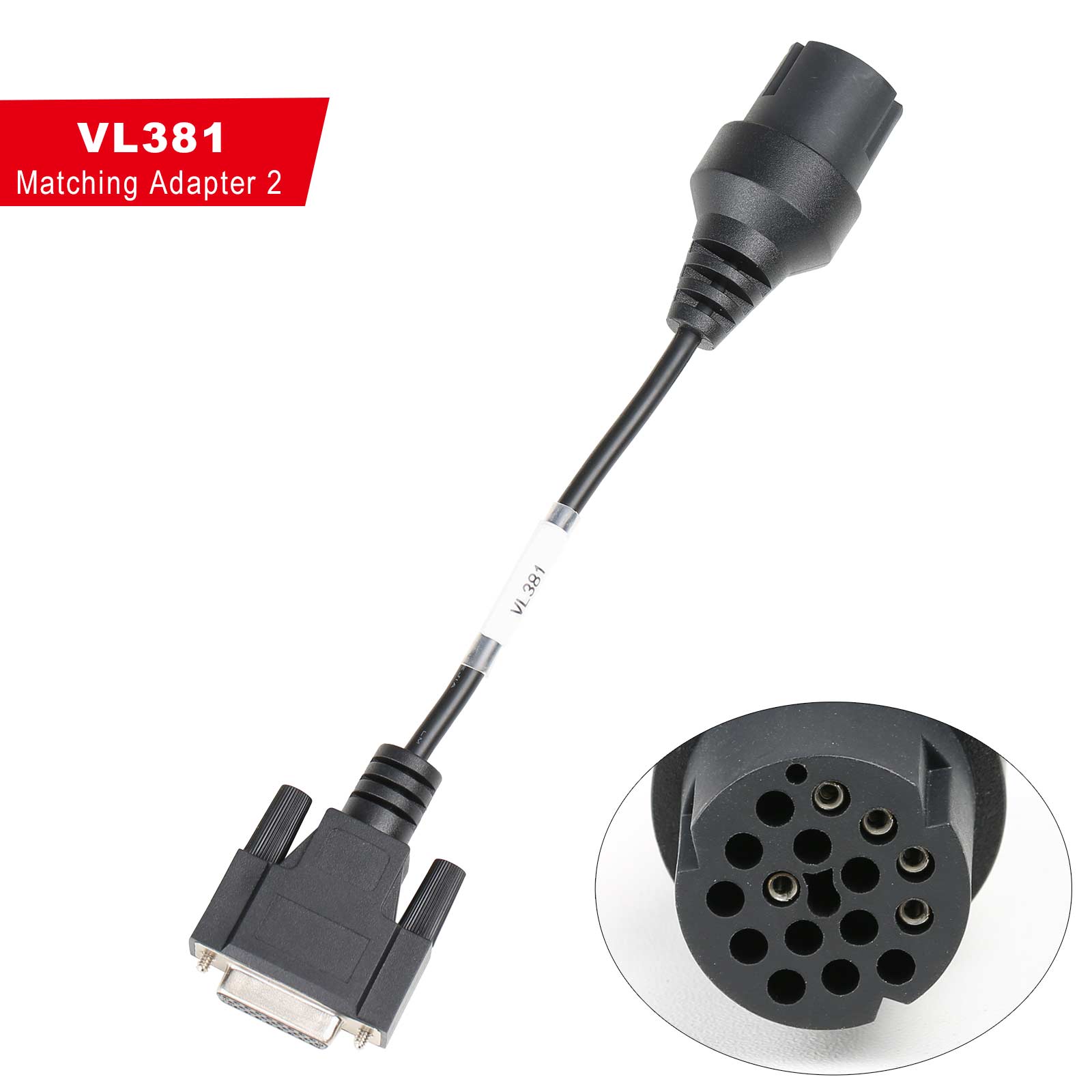

| 2 | X-PROG3 Adapter Cable 2 (VL381) | 307110078 | Used to connect the VL381 gearbox, and available models include VW, Audi, etc. |

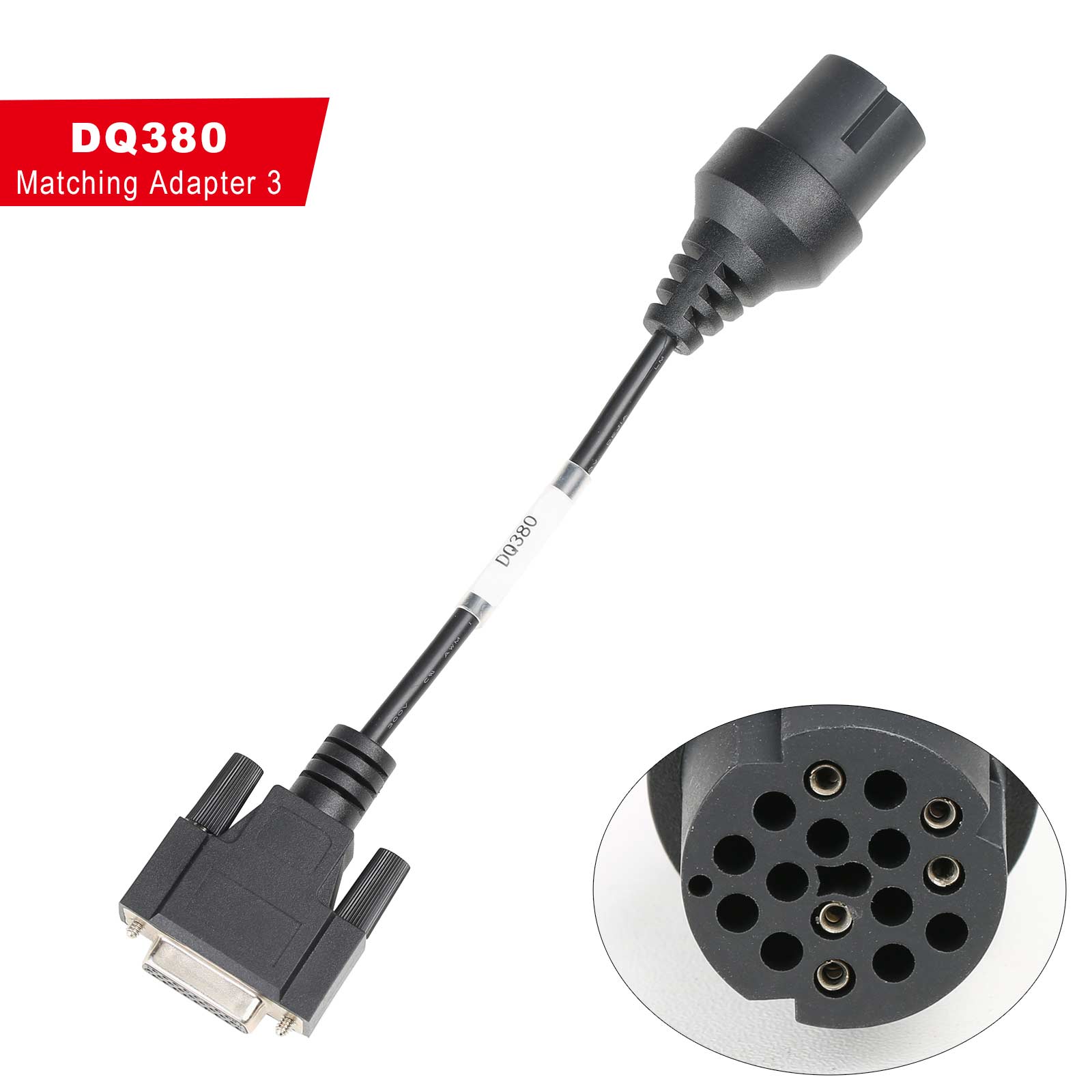

| 3 | X-PROG3 Adapter Cable 3 (DQ380) | 307110079 | Used to connect the DQ380/DQ381/DQ500 gearbox, and available models include VW, Audi, etc. |

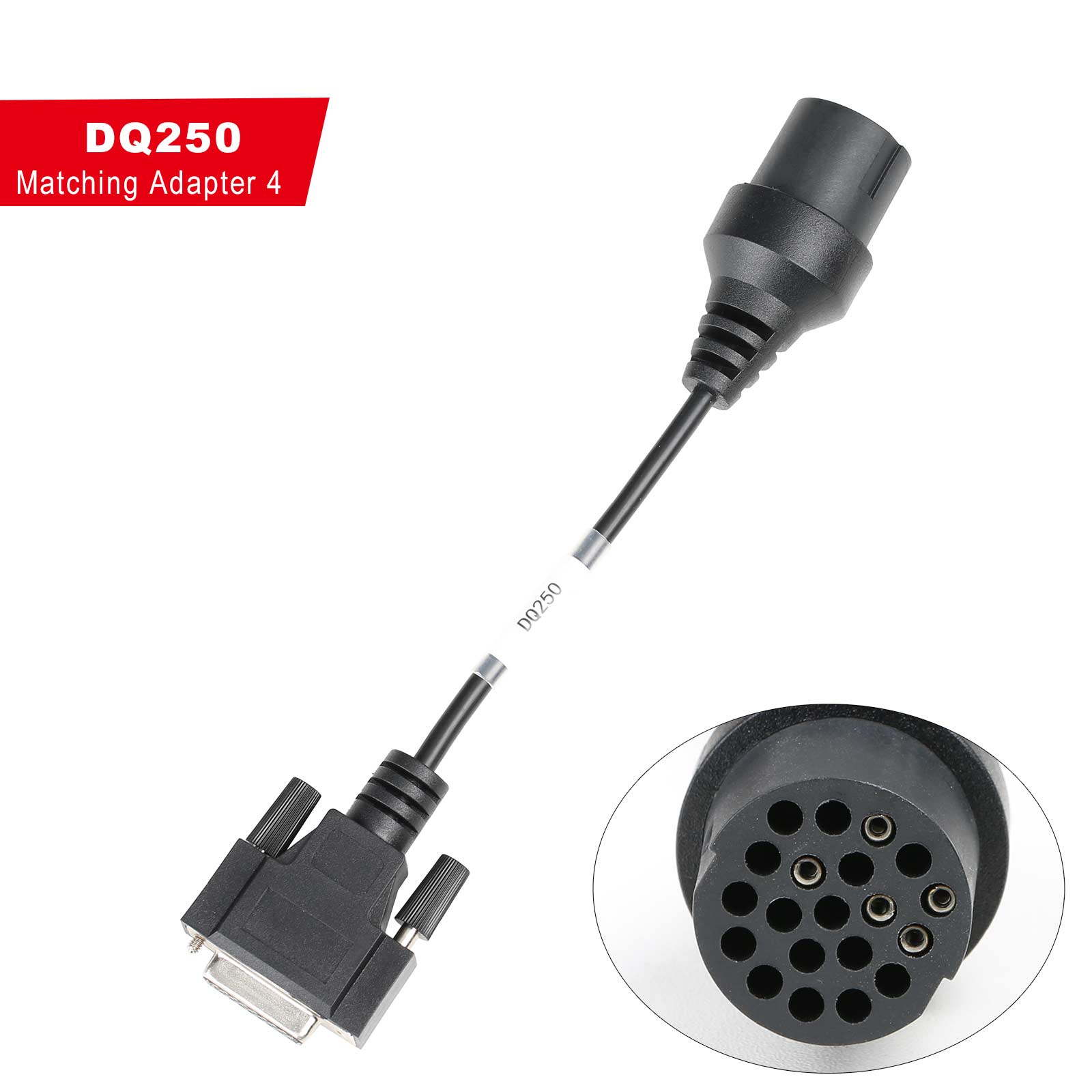

| 4 | X-PROG3 Adapter Cable 4 (DQ250) | 307110080 | Used to connect the DQ250 gearbox, and available models include VW, Audi, etc. |

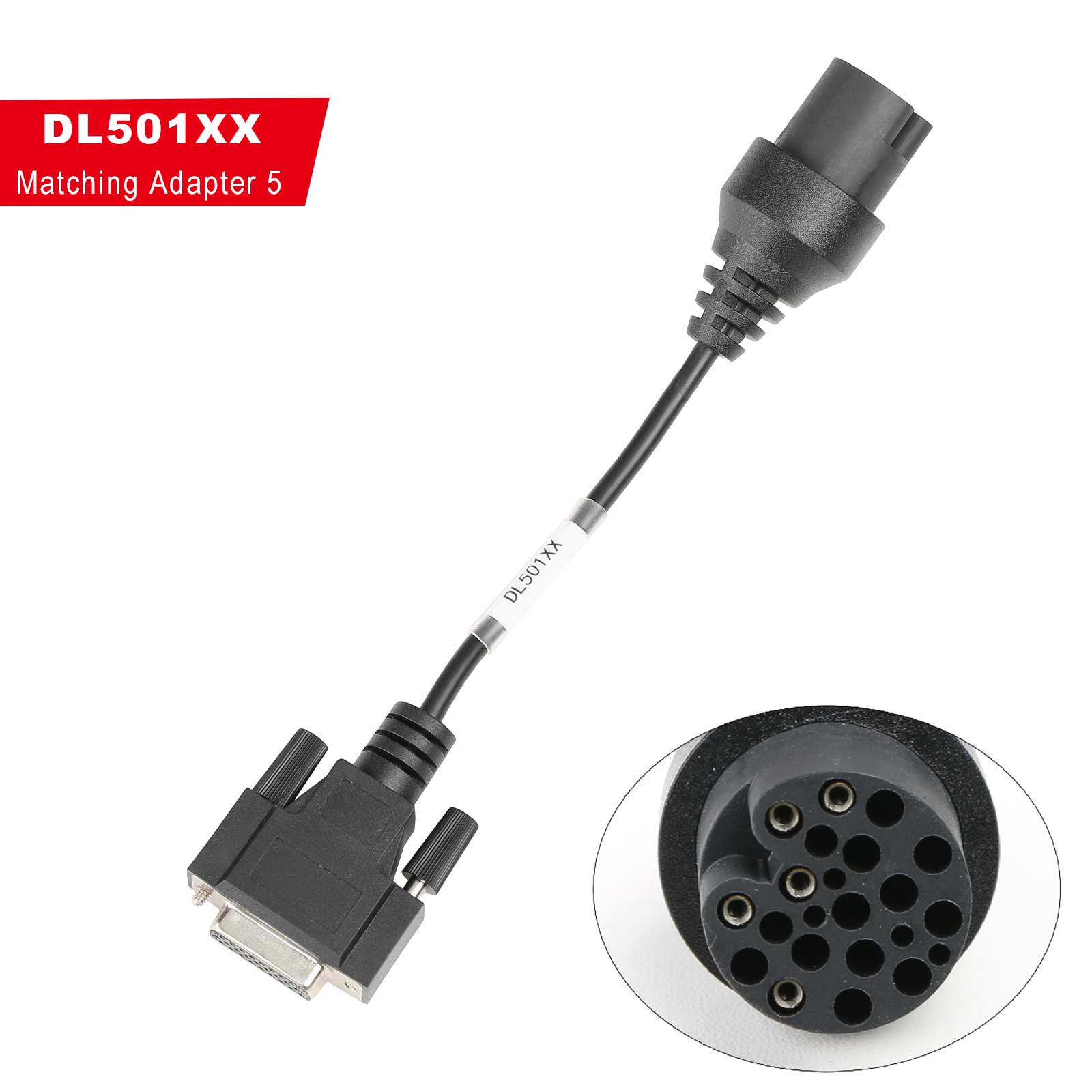

| 5 | X-PROG3 Adapter Cable 5 (DL501) | 307110081 | Used to connect the DL501XX gearbox, and available models include VW, Audi, Porsche, etc. |
|
6 |

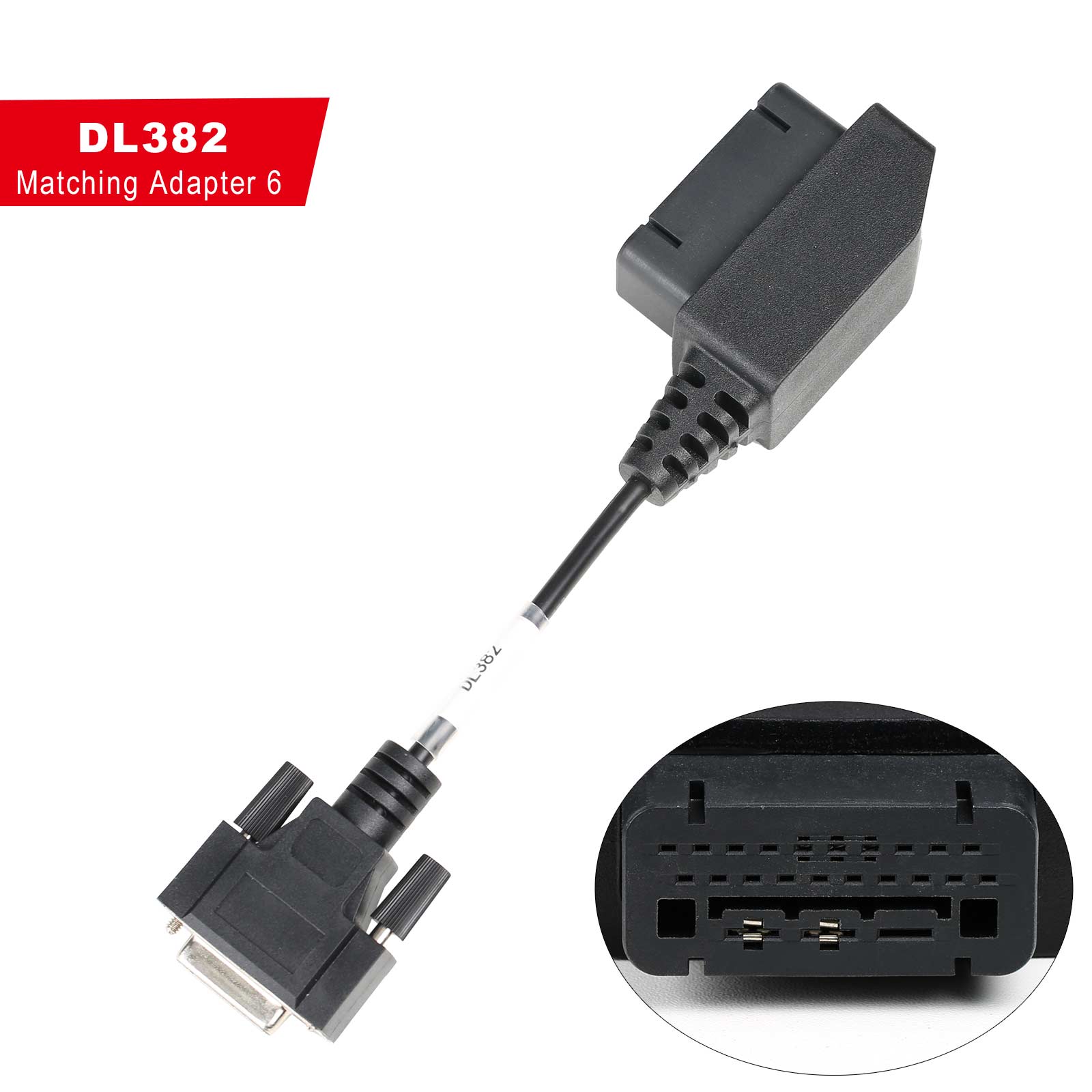

X-PROG3 Adapter Cable 6 (DL382) | 307110082 | Used to connect the DL382 gearbox, and available models include VW, Audi, etc. |

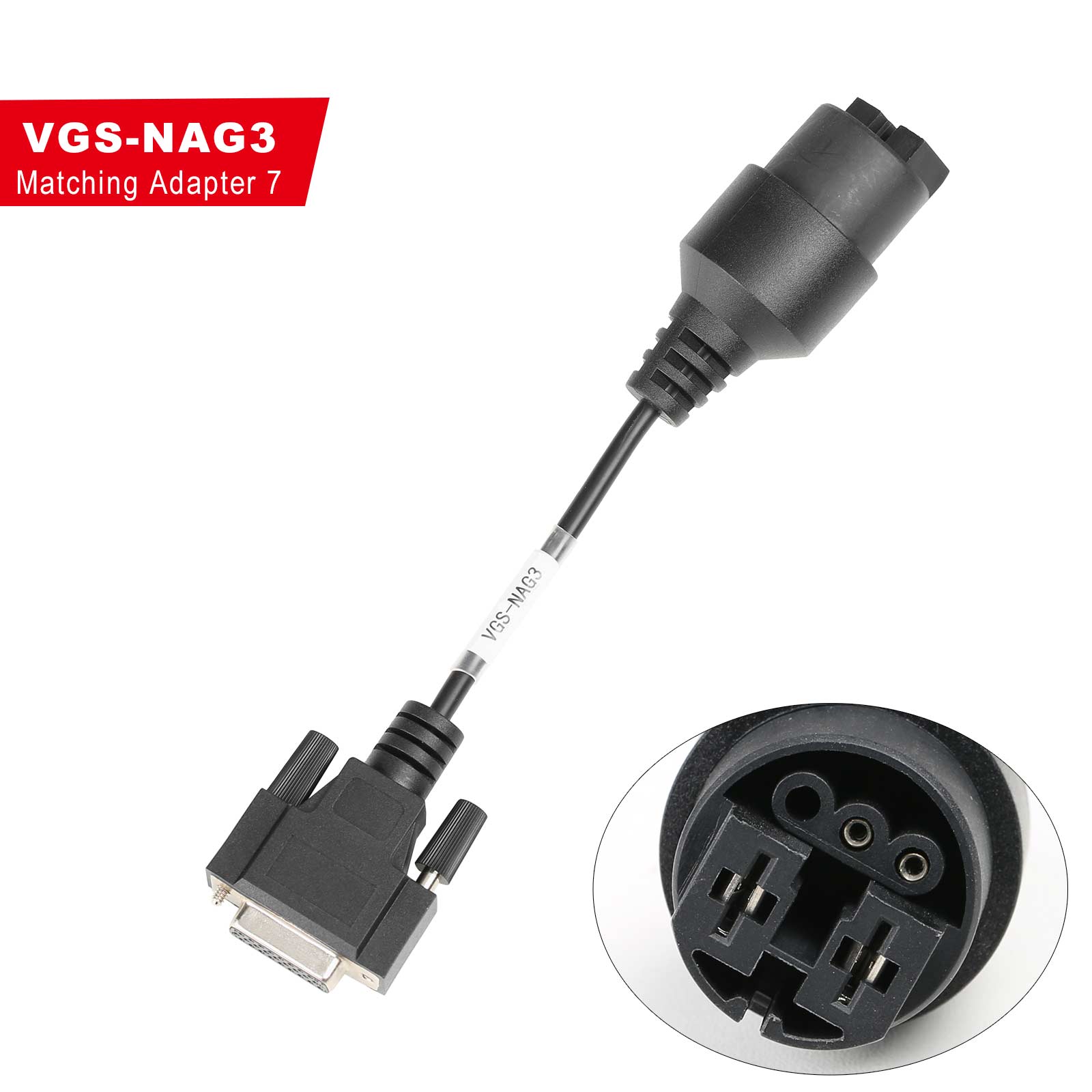

| 7 | X-PROG3 Adapter Cable 7 (VGS-NAG3) | 307110083 | Used to connect the VGS-NAG3 gearbox, and available models include Benz, Nissan, etc. |

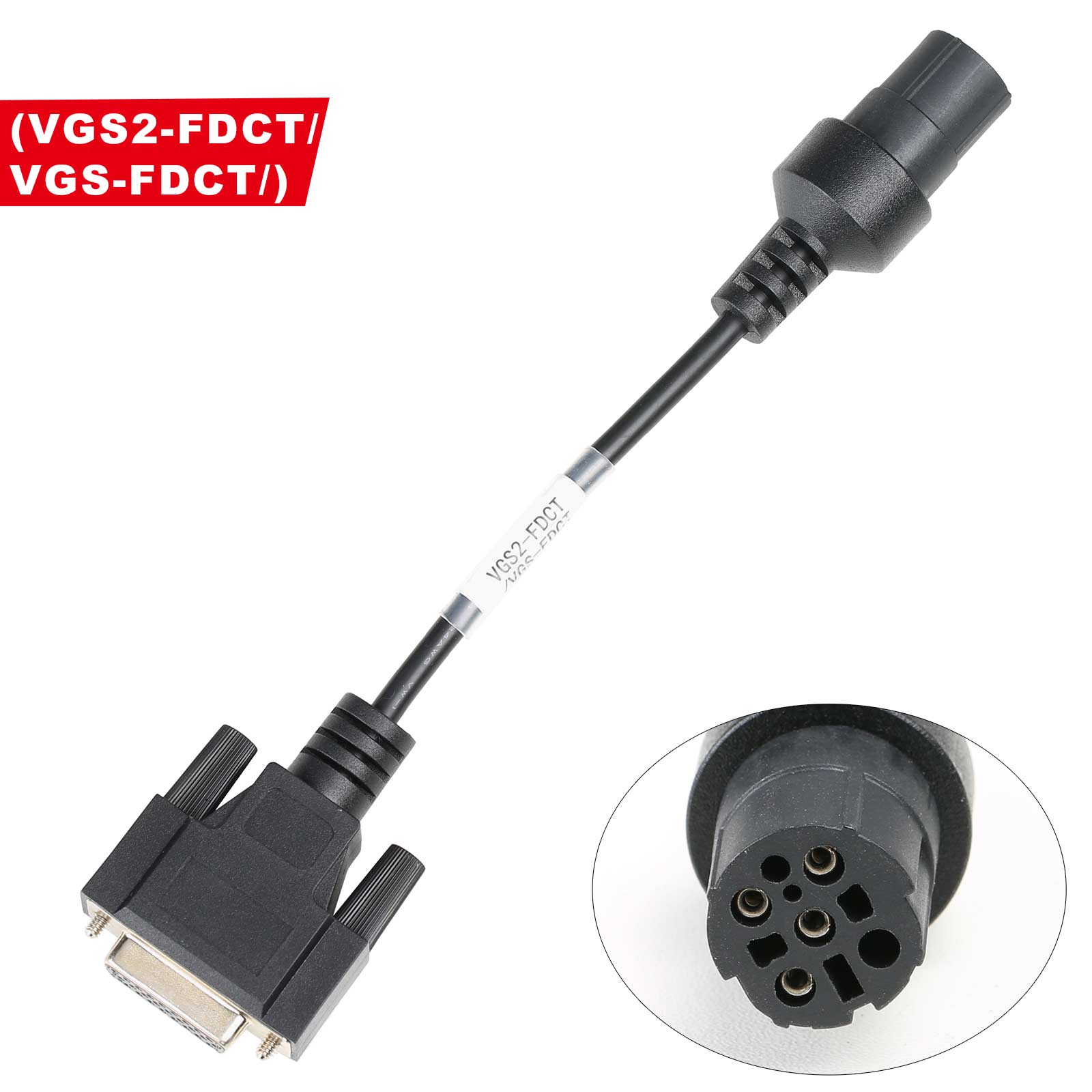

| 8 | X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT) | 307110084 | Used to connect the VGS-FDCT/VGS2-FDCT gearbox, and available models include Benz, Infiniti, etc. |

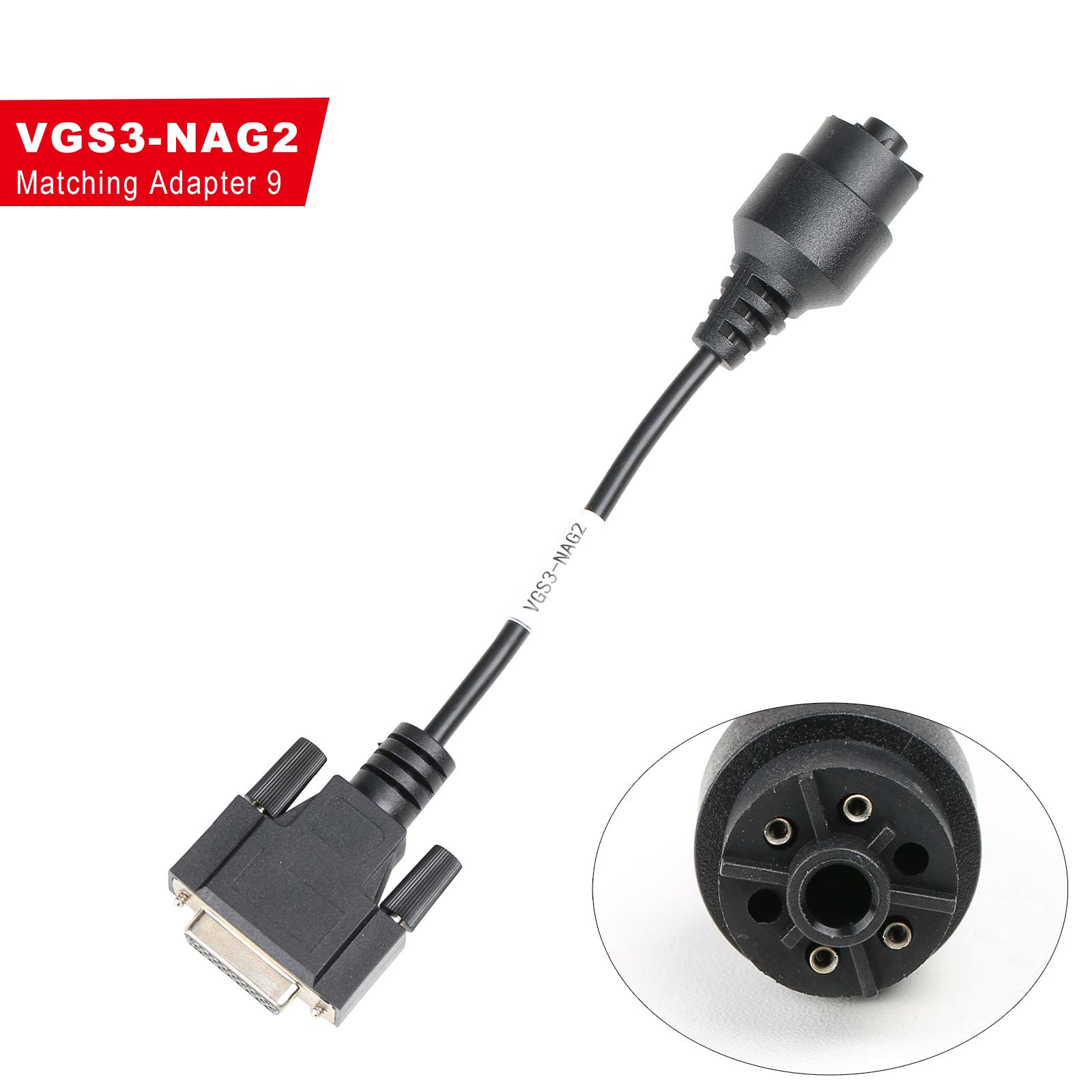

| 9 | X-PROG3 Adapter Cable 9 (VGS3-NAG2) | 307110085 | Used to connect the VGS3-NAG2 gearbox, and available models include Benz, etc. |

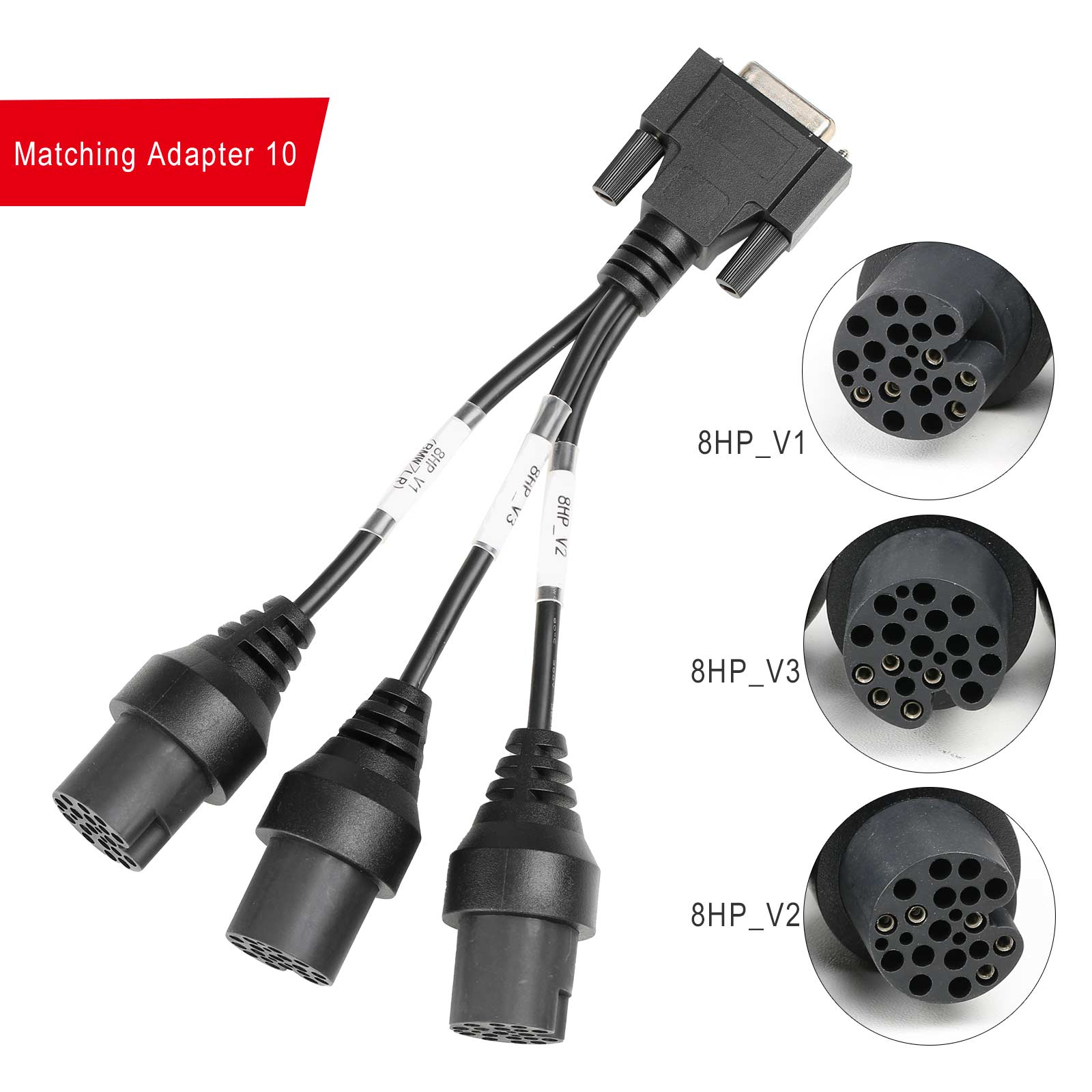

| 10 | X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3) | 307110086 | Used to connect the 8HPXX/AL450/AL551/AL552 gearbox, and available models include BMW, Land Rover, Jaguar, Dodge, Alpina, Chrysler, Rolls Royce, Alfa Romeo, Aston Martin, Great Wall, Jeep, Lamborghini, Maserati, Iveco, etc. |

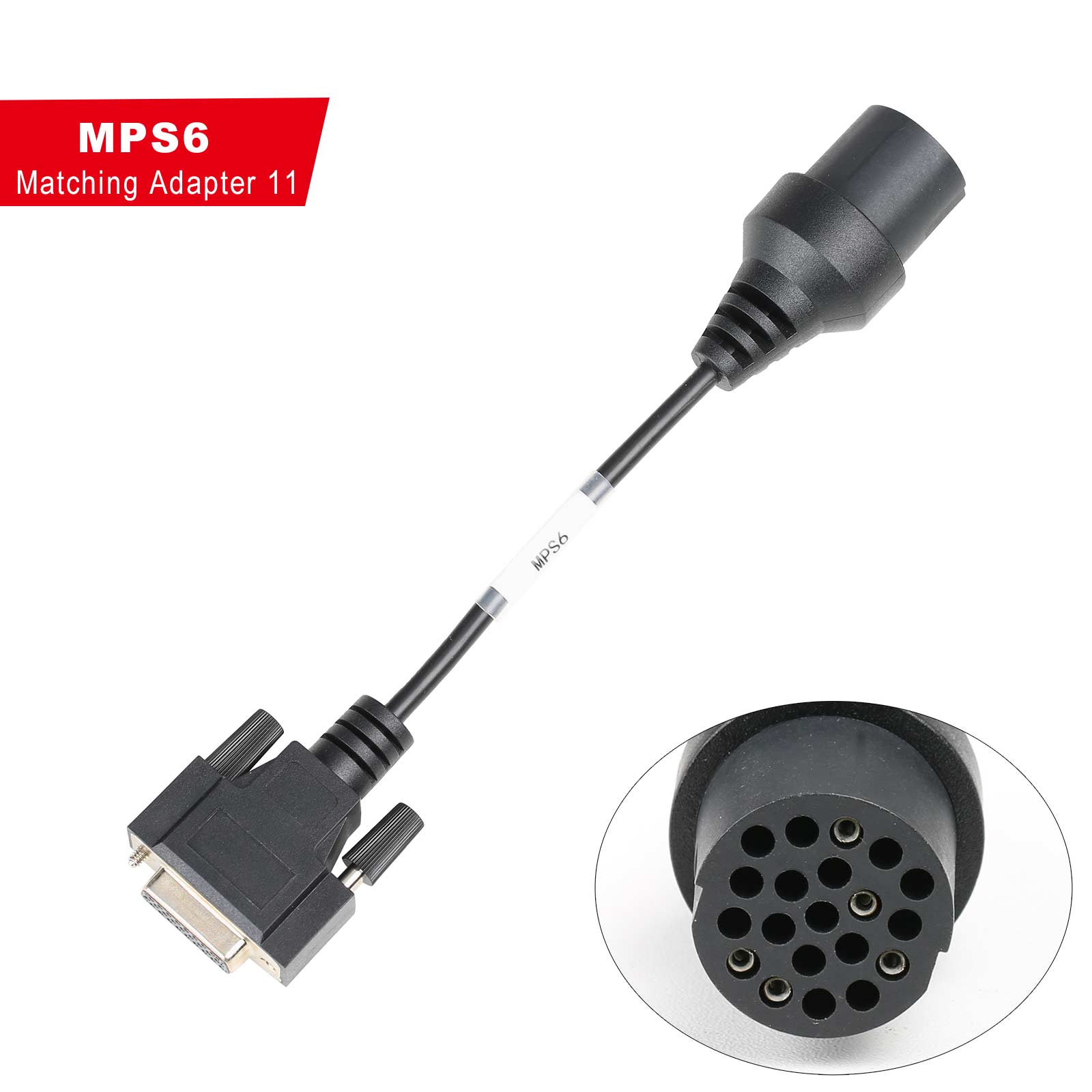

| 11 | X-PROG3 Adapter Cable 11 (MPS6) | 307110087 | Used to connect the MPS6/MPS6_GEN3 gearbox, and available models include Ford, Renault, Chrysler, Dodge, Land Rover, Volvo, etc. |

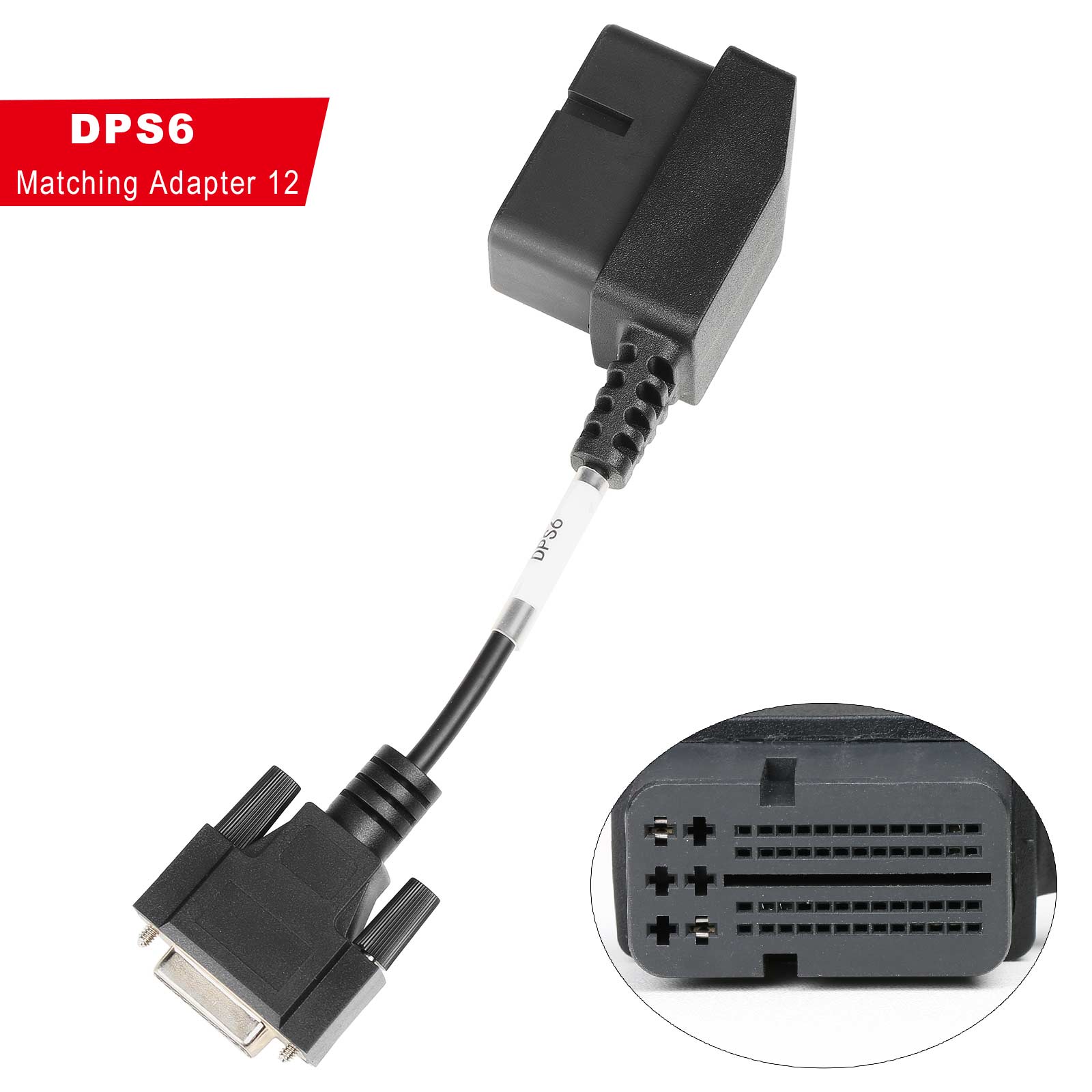

| 12 | X-PROG3 Adapter Cable 12 (DPS6) | 307110088 | Used to connect the DPS6 gearbox, and available models include Ford, etc. |

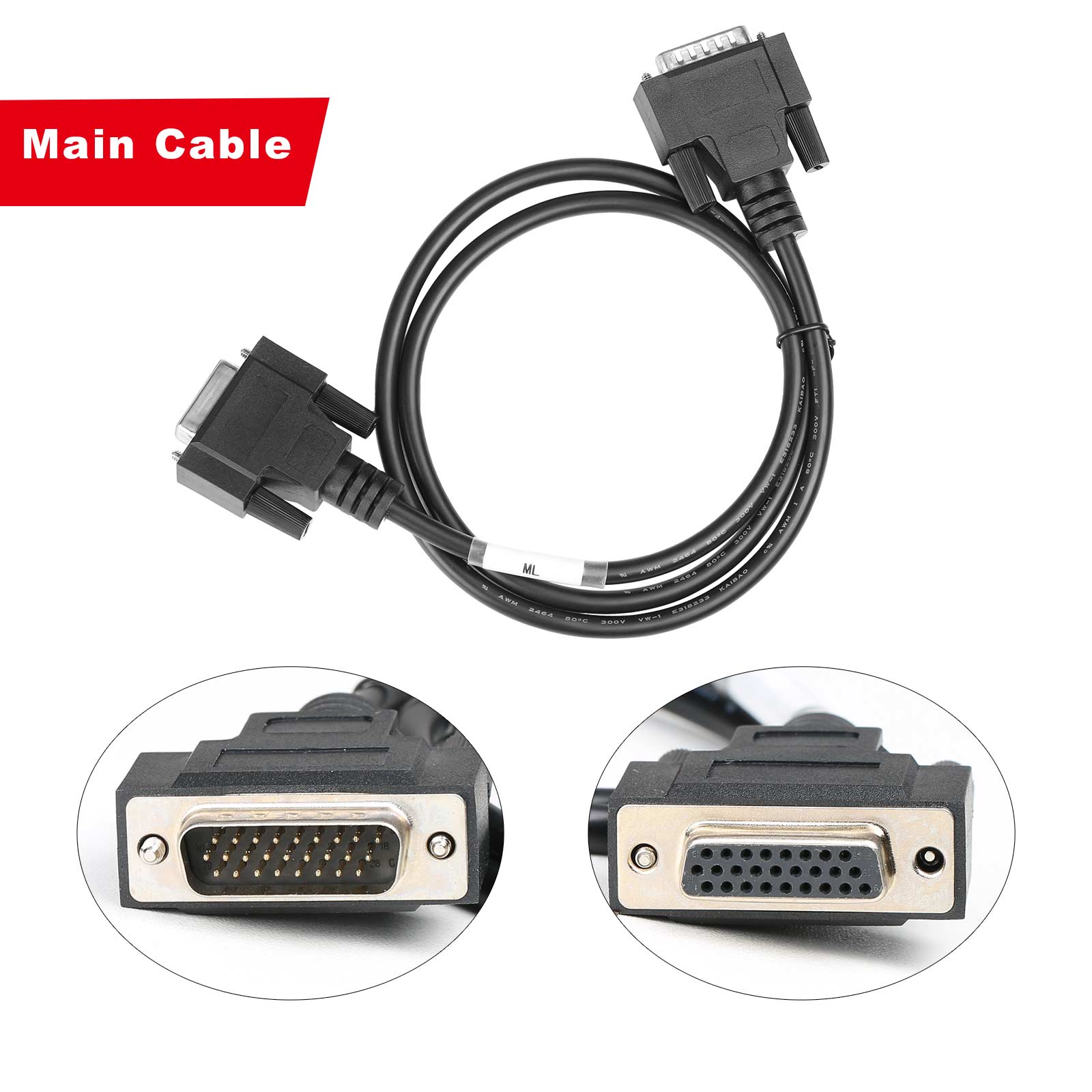

| 13 | X-PROG3 Adapter Cable Main Line (ML) | 307110089 | The extension wire of the gearbox harness, with one end connected to the immobilizer programmer and the other end connected to the gearbox harness |
| Weight | 3.4 kg |
|---|
