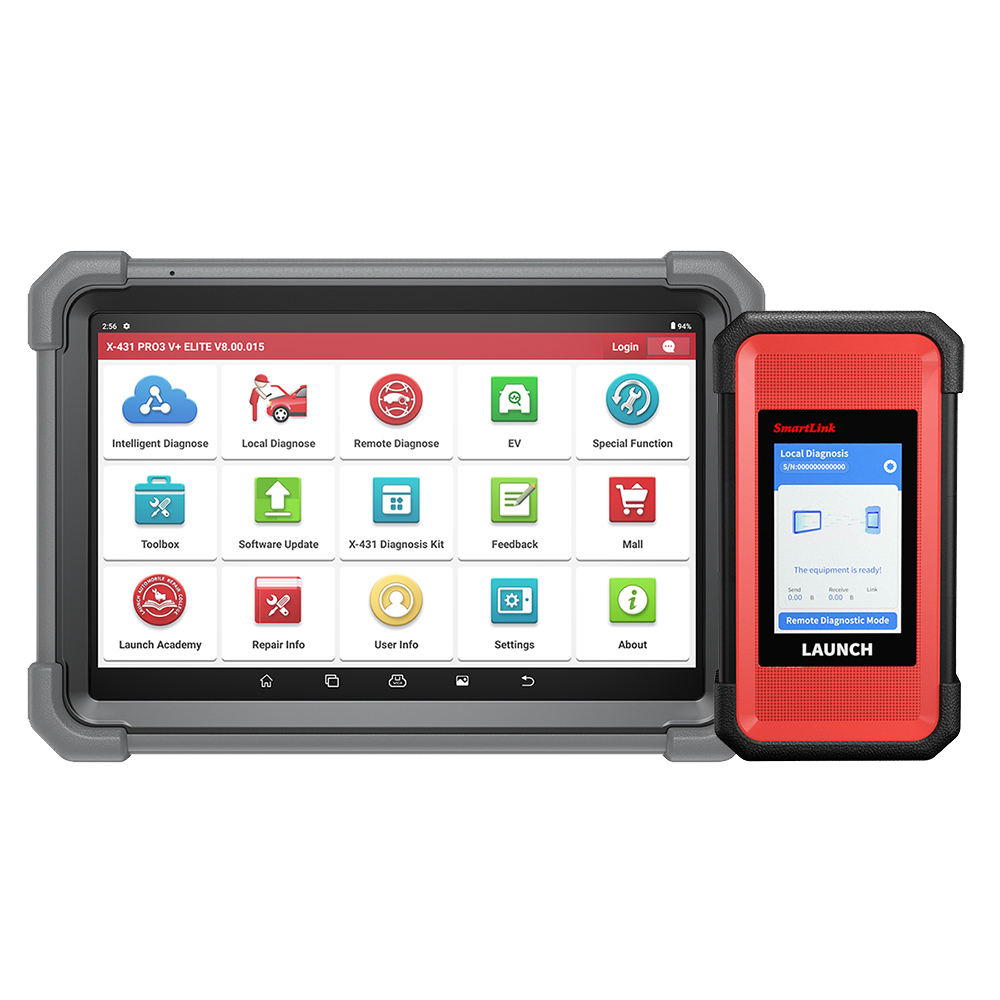

LAUNCH X431 PRO3 V+ Elite J2534 Type C Scanner With Smartlink VCI, OBD PIN Detection, CANFD/ DoIP, Active Test, Topology Map, Online Coding, 60+ Reset

LAUNCH X431 PRO3 V+ 5.0 Elite 2024 Upgraded Bidirectional Scan Tool with Topology Map, AutoAuth for FCA SGW, ECU Coding, 37+ Services

Upgraded Hardware

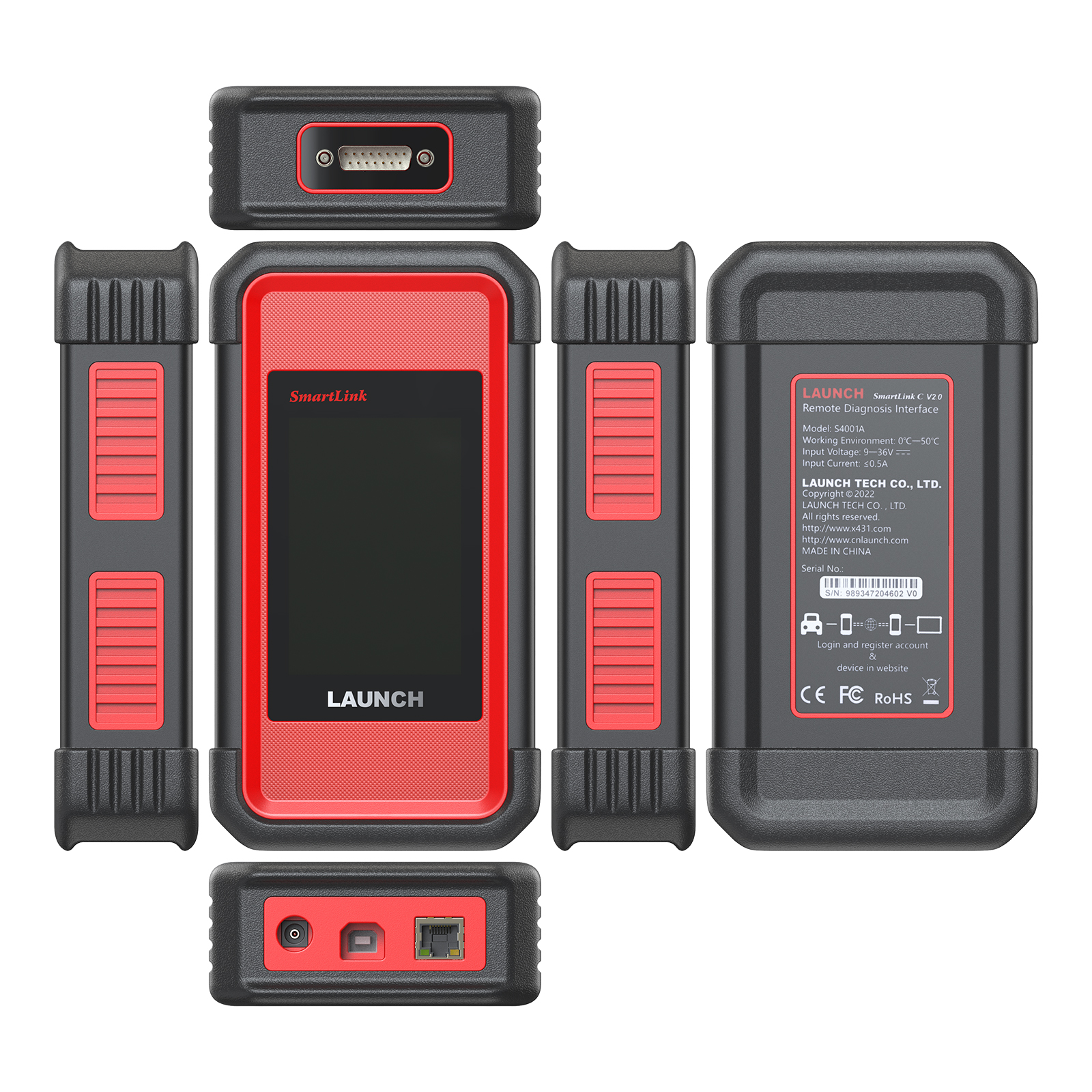

• Upgraded SmartLink C 2.0 VCI
• 5 Years Warranty. We offer free aftersale service within 5 years.
• Fully upgraded settings scan tool, with OBD16→DB15 for a stronger connection;
• CAN2.0/J2534/D-PDU support, CANFD/DOIP for enhanced communication;

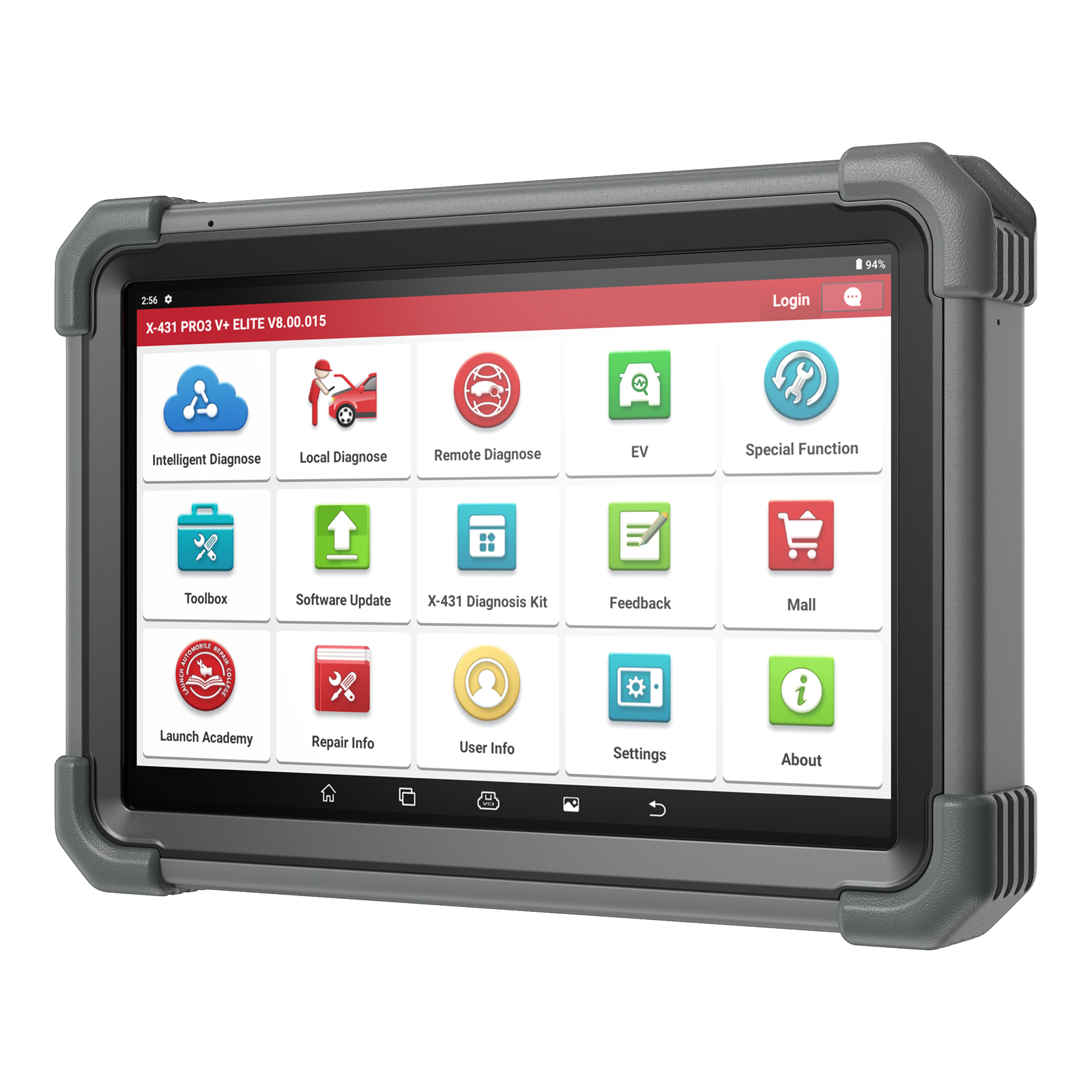

• 10.1inch screen 1280*800 sharp touchscreen for clear display even in sunlight
• 4+64G memory based on Android 10.0 for more stable system running and wider compatibility
• 6300mAh battery for higher power and expanded usage time, replaces OBD 16 with DB15 for stronger connection, etc.

Powerful Software

• CAN2.0/J2534/D-PDU support, CANFD/DOIP for enhanced communication;
• Supports WiFi wireless and USB connection (new tablet comes with Type C)
• Update Service: We offer a 2-year free update service. After 2 years, 450usd/2 year; you can still use it without any limitation.
• OE-Level car coverage. 100+ car brands, 20,000+ models from the US, European, and Asian car markets; still expanding.
• With one-click updates, you gain access to the latest functions and software versions, ensuring you never waste a moment of your time.
• Wider Compatibility: Not only available for X431 devices, but SmartLink also supports specialized detection equipment and third-party diagnostic tools to perform more features.
• No Device/Distance Limit: You won’t be bothered by your scanner with limited support, as all available services depend on the capability of the remote diagnostic equipment.
• Easier Operation: The vehicle side only requires a SmartLink remote diagnostic box. All are based on a good Internet environment, with no need for third-party remote desktop control software or a computer.
• 25 Language Support: English,Simplified Chinese, Traditional Chinese, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Serbian, Finnish, Swedish, Czech, Italian
  APP language: English, German, Russian, French, Traditional, Portuguese, Japanese, Spanish, Italian
• X431 PRO3 V+ Elite is the upgraded version of X431 V+ 5.0；  It adds: 1. J2534 Programming; 2. J2534/D-PDU support, CANFD/DOIP for enhanced communication; 3. Pin Detection & Pre/ Post Scan; 4. Fully upgraded settings scan tool, with OBD16→DB15 for a stronger connection. 5. With Smartlink VCI, support remote diagnostic.

X-431 PRO3 V+ ELITE Main Functions:

• Topology Module Mapping Support
• Full system diagnostic + ECU coding + Active Test
• Upgraded SmartLink C adopts much more cars including EVs  (need to buy EV software)
• Optional truck license (Does not work with HDIII, you will need to purchase truck software adapter set)
• Diagnostic Report Printing; One-click Updating; Data Recording; 4-in-1 Data Stream Display
• Compatible with J2534 protocols and can do ecu online programming via Smartlink Super Remote diagnosis.
• Unlock FCA, Benz and Renault SGW security gateway * Need to purchase European SGW Function license in Mall.
• OBD PIN Detection: Detect the vehicle protocols and OBDII pin voltage status to help technicians judge the OBD2 interface.
• Full Bidirectional Active Test, AutoVIN & AutoScan powers all-systems DTC scans that clock in at an average of < 3 minutes.
• Supports Immobilizer key programming and VW Audi/BMW 8HP gearbox Cloning with the x-prog3 and IMMO software package
• VAG Guided Function: Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.
• With new SmartLink C 2.0 Passthru. Dual diagnosis mode (local diagnosis and smartlink super remote diagnosis) Remote diagnosis (needs activation card)
• Universal Vehicle Coverage: Serve passenger cars and heavy-duty trucks. Cover 99% of American, Asian, European models and 10000+ vehicles (1996-2022). Truck requires
• All 60+ Reset Service Include the maximum repair functions in the aftermarket. Solve your 99% of vehicle problems and take care of every ECUs on your cars.
• FCA AutoAuth Access: Bypass SGM in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Need AutoAuth subscriptions.
• Add Modules to Expand Features: ADAS Calibration Toolkit; VSP-600 VideoScope; X431 TPMS TSGUN/i-TPMS; BST360 Bluetooth Battery Tester; X-PROG & X-PROG3 Immobilizer, WiFi printer
• J2534 OEM Programming is compatible with J2534 Reprogramming, DoIP, CAN FD, and Heavy-Duty Truck (DC9-36V) protocols. Smartlink has built-in CAN FD and DoIP protocols, and doesn’t need DoIP cable.
• Online Functions: Give you quick access to obtain massive online data from the OEM server. Online ECU Coding compatible with VW, Audi, BMW, Porsche. Online Calibration; Online Code Search; Online Feedback; Online Repair Resource.

LAUNCH X431 PRO3 V+ ELITE Extended Functions

• WiFi printer: print out diagnostic data and information
• Adds EV diagnostic kit for new new Energy Battery Vehicles
• X-PROG & X-PROG3 Immobilizer: key programming & ECU TCU cloning.
• S2-2 SensorBox diagnosing/testing/simulating most vehicle sensor faults
• O2-2 ScopeBox, detects high level faults on various electrical components, such as sensors, acturators and circuits.
• ADAS (Cali-bration):  It supports ADAS calibration function with ADAS PRO or ADAS MOBILE (optional), which can realize the calibration of adaptive cruise control, lane departure warning, rear collision warning, panoramic monitoring, blind spot monitoring, night vision system, etc.
• IMMO Software pack: advanced key programming & IMMO service. (function is available with the new Smartlink, must use with X431 XPROG-3 GIII Key Matching will expand the anti-theft function just like IMMO PLUS)
• Heavy duty package: LAUNCH SmartLink C v2.0 Add-on Module is an essential truck module which can turn your X431 scan tools into full function heavy-duty truck diagnostic tools, working on both heavy-duty (Class 4 through 8) and medium-duty trucks (Such as heavy trucks, city buses, bulldozers, excavators, etc.)
• Launch X431 key programmer: generate/copy remote transponder functions. (Direct connection, don’t need OTG converter).
• LAUNCH VSP600 Videoscope:  To check unseen parts of the engine, fuel tank, braking system, etc.; Helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment. It will work with LAUNCH X-431 scanners or any Android device and streams live video on it. Technicians can view, record and save images and videos(EXTRA BUY).
• LAUNCH X431 TSGUN: It can be used with a tire pressure tool (optional) for sensor activation, reading, tire pressure diagnosis, learning, programming, detection, and other functions.
• LAUNCH BST360 Battery Tester: Connecting with this battery tester, X431 PRO ELITE is endowed with battery diagnostic features such as battery health test, start system test and charging health test, etc., which help you to detect battery-related issues of vehicles accurately and timely
• EM101N Multimeter

PRO3 V+ ELITE Value Bundles:

1. X431 PRO3 V+ ELITE + X431 O2-2  Oscilloscope
2. X-431 PRO3 V+ Elite With X-431 Sensorbox S2-2
3. X-431 PRO3 V+ ELITE + X431 Launch i-TPMS

What is new features of X431 PRO3 V+Elite

Upgrade of X431 V+5.0.

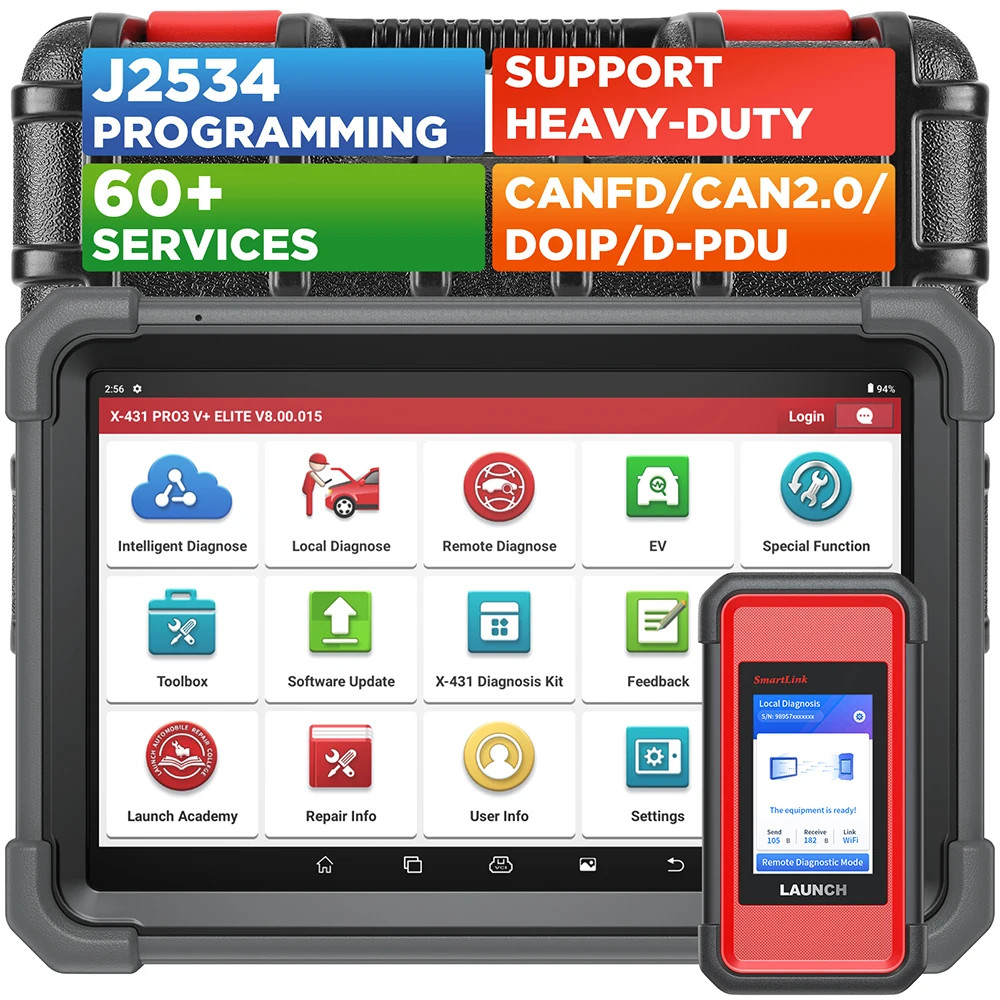

1) J2534 Programming to save 500+;
2) CAN2.0/J2534/D-PDU support, CANFD/DOIP for enhanced communication;
3) Pin Detection & Pre/Post Scan;
4) Fully upgraded settings scan tool, with OBD16→DB15 for a stronger connection;
5) Major Upgrade– Upgraded SmartLink C adopts much more cars including EV, Trucks（need to buy EV/Turck software license)

Launch X431 PRO3 V+ Elite VS X431 V+ 5.0 (PRO3):

Items		Launch X-431 PRO3 V+ Elite	Launch X-431 V+ 5.0 (PRO3)	Note
Hardware Configurations	CPU	4-Core 2.0GHz	4-Core 2.0GHz
	RAM	4G	4G
	ROM	64G	64G
	battery capacity	6300mAh, 7.6V (47.880Wh)	6300mAh (200.85g) , 7.6V
	Android version	Android 10.0	Android 10.0
	Screen size	10.1 inch	10.1 inch
	Screen resolution	1280*800	1920×1200
	Wi-Fi	2.4 & 5 GHz	2.4 & 5 GHz
	Camera	Rear 8.0 MP	Rear 8.0 MP/ Front 5.0 MP
	HDMI	X	X
	Communication	VCI/Bluetooth (SmartLink C)	VCI/Bluetooth (DBSCar VII)
Main Features	J2534 Programming	Yes, with Launch SmartLink C	No
	Full-System Diagnostic	√	√
	Service Functions	60+	41
	Active Test	√	√
	Auto VIN	√	√
	Remote Desk	√	√
	Diagnostic Topology Display	√	√
	ECU Coding	√	√
	Reflash hidden features	√	√
	Pre& Post scan	√	X
	VAG Guided Function	√	√
	Repair data	√	√
	FCA Secure Gateway	√ (Renault and Benz SGW Unlock: purchase in Mall)	√	Third-Party Platform
	Bus Protocols: DoIP/CAN FD	Only supports CAN FD, Need to buy DoIP cable separately	Only supports CAN FD, Need to buy DoIP cable separately
	J2534/ D-PDU protocol	√ (same as Autel Ultra series)	X
	Diesel vehicle diagnosis (HD)	√(Buy SmartLink C 2.0 HD Truck Module or HDIII）	√(Buy SmartLink C 2.0 HD Truck Module or HDIII）	HD software, OBD special adapters are optional accessories
Add-on Tools	ADAS	√ (Need X431 ADAS Calibration )	√ (Need X431 ADAS Calibration )
	TPMS(TSGUN)	√	√
	X-PROG 3	√	√	No need to bind or activate, the software has built-in version update. The X-PROG3 is required.
	Battery Tester	√	√
	Oscilloscope	√	√
	Endoscope	√	√
	Launch VSP600 Camera VideoScope	√	√
	WIFI Printer	√	√
Software	Upgrade Fee (End User)	2 Years Free Update	2 Years Free Update
Language	Software Language	24 Languages: English, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian, Finnish, Hungarian, Swedish, Turkish, Serbian, Simplified Chinese, Traditional Chinese, Japanese, Korean	24 Languages: English, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian, Finnish, Hungarian, Swedish, Turkish, Serbian, Simplified Chinese, Traditional Chinese, Japanese, Korean

LAUNCH X-431 PRO3 V+ ELITE Functions Display

All System Diagnosis

• Local Diagnosis

1. Wide coverage of vehicle models, and accurate diagnosis.
2. Full vehicle model and full system testing.
3. Support the Volkswagen Audi boot function.
4. Support topology map.
5. Multi-system parallel communication to improve diagnostic efficiency.

• Super Remote Diagnosis

• Pin Detection

• You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:
• Oil Maintenance Light Reset: reset the oil service lamp; re-calculate the optimal oil life change interval.
• Steering Angle Reset: reset the steering angle to zero to keep the car running straight.
• Injector Coding: write the new injector code into the system to correct cylinder injection quantity.
• Electronic Parking Brake Reset: help replace and reset the brake pad.
• ABS Bleeding: help exhaust the air in ABS system in an easy way.
• Throttle Matching: initialize the throttle actuators to the default state.
• Battery Matching: register the battery after replacement.
• DPF Regeneration: help remove the particulate matter to keep the trap stable.
• Anti-theft Matching (IMMO Service): disable lost keys to prevent the car from being stolen, and add new keys. *Limited in default; can be fully upgraded with X-PROG & X-PROG3.
• Tire Pressure Reset: reset the tire pressure.
• Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.
• Headlight Matching: initialize the adaptive headlamp system.
• Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.
• Sunroof Initialization: initialize the sunroof when to be locked off, or closed.
• Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.
• And many more with expanding. Function menus vary by manufacturer, year, and model. Reach us for compatibility check.

1. Color-coded system structure faithfully reflects true relationships between all vehicle modules, serving as a valuable reference for practical repair, saving time and money for a dealership visit.
2. Multi-system parallel communication allows for comprehensive analysis of all systems within the car in seconds, providing detailed diagrams of all components.
3. Graphic display of different states of each system helps quickly and accurately locate the fault of the car, greatly improving work efficiency.
–Topology Fault Code

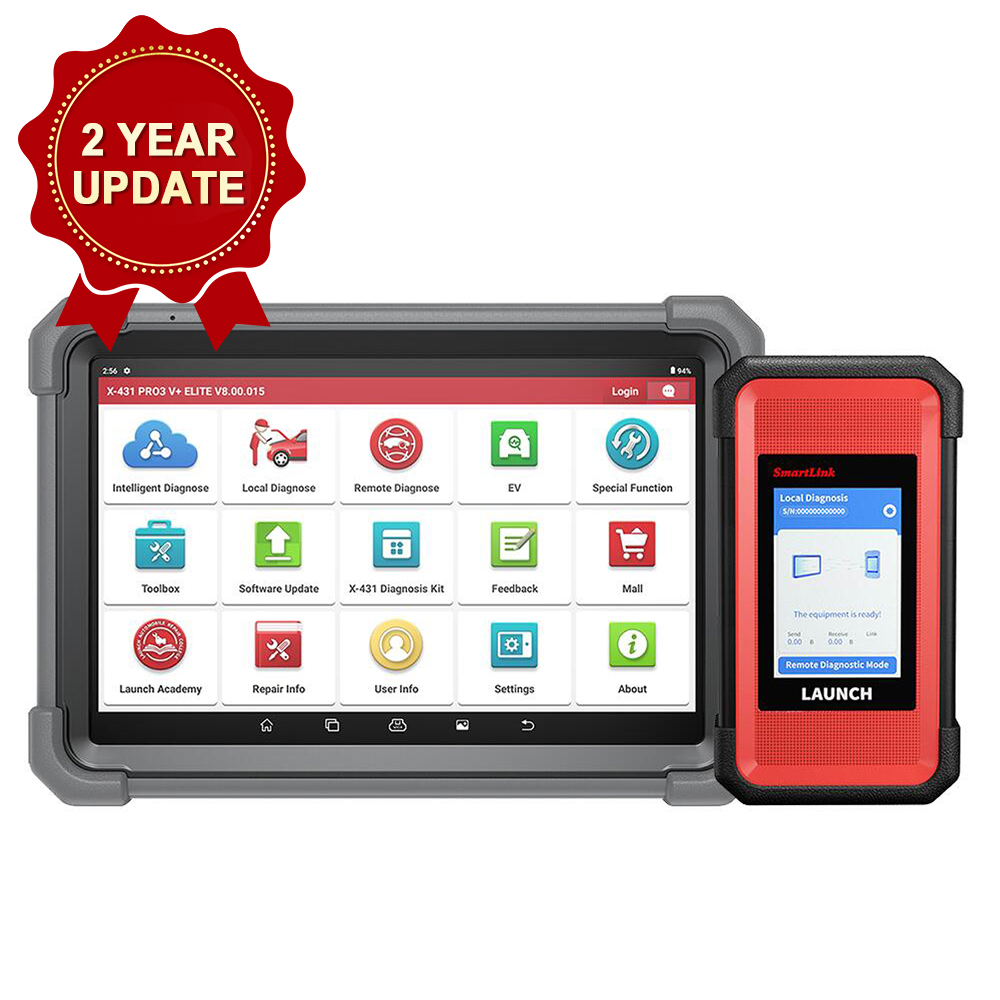

Update ServiceWe offer a 2-year free update service. After 2 years, you can still use it without any limitation.
The software updates quickly and can be upgraded online with one click. The newly added smart upgrade function can automatically filter out commonly used software according to the user’s software usage to improve efficiency.

Specification

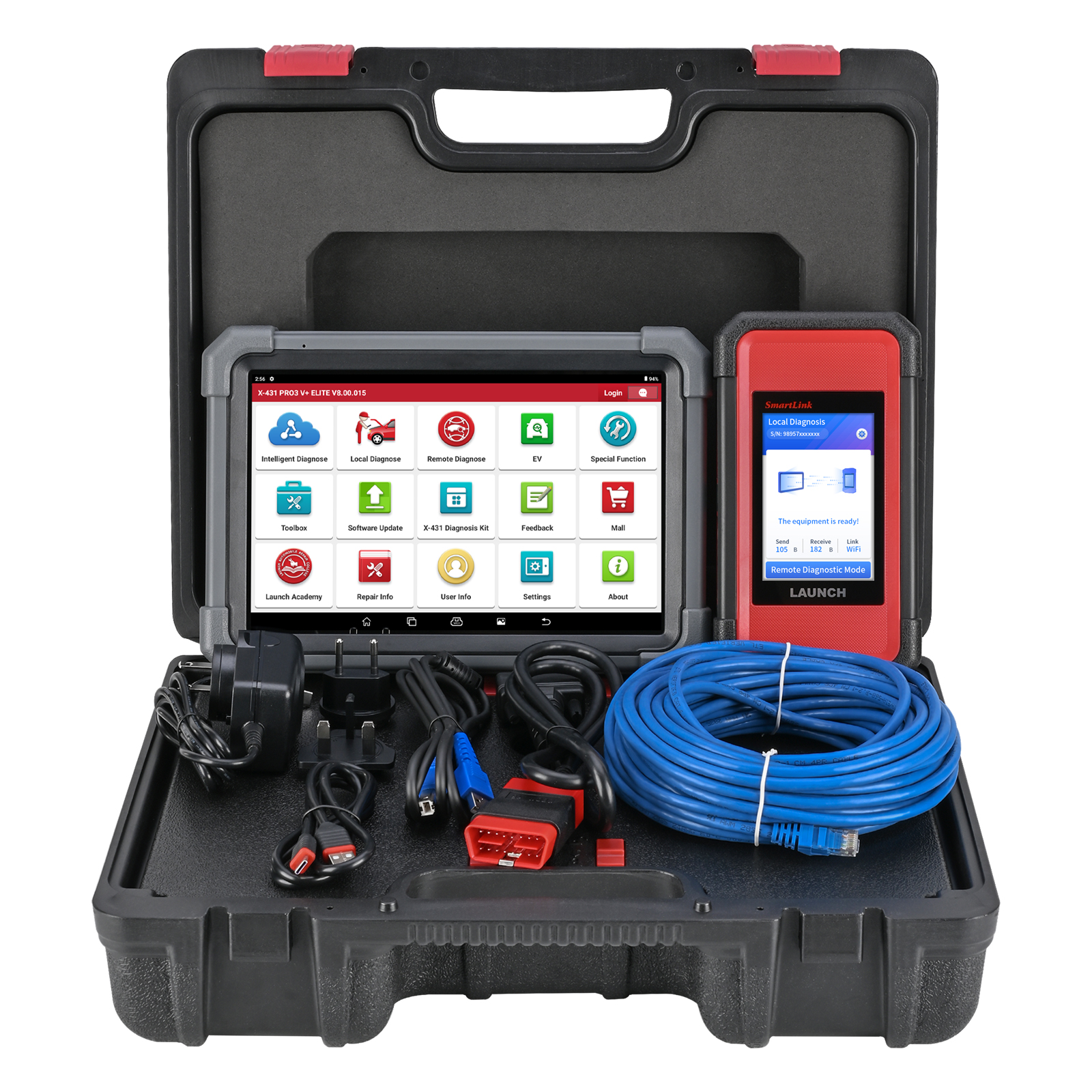

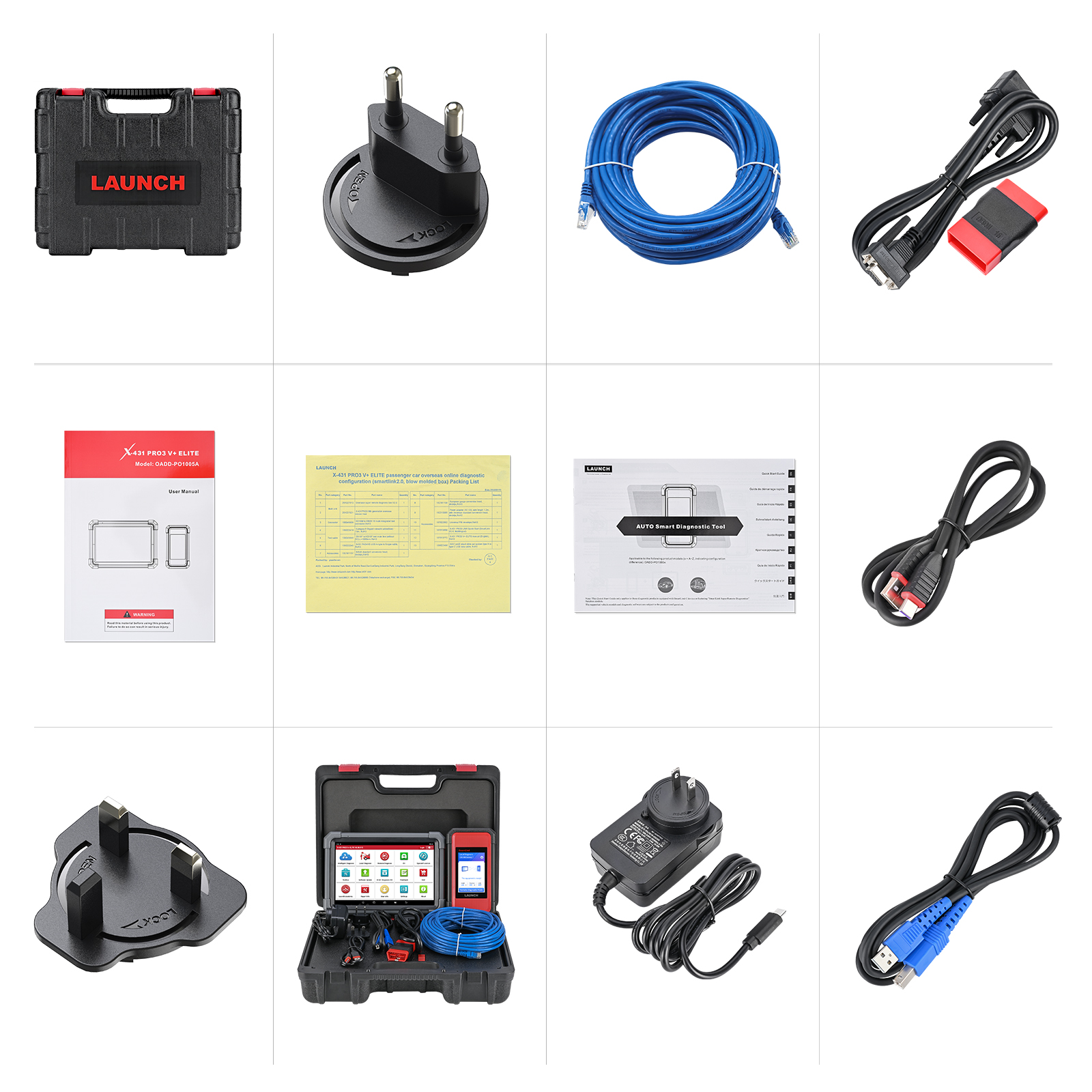

Package List

1pc x LAUNCH X431 PRO3 V+ Elite tablet
1pc x SmartLink C
1pc x main cable
1pc x OBD adapter
1pc x USB-B cable
1pc x type-C cable
1pc x Ethernet cable
1pc x US standard plug
1pc x UK standard plug
1pc x EU standard plug
1pc x Quick Start Guide
1pc x User Manual
1pc x Packing List
