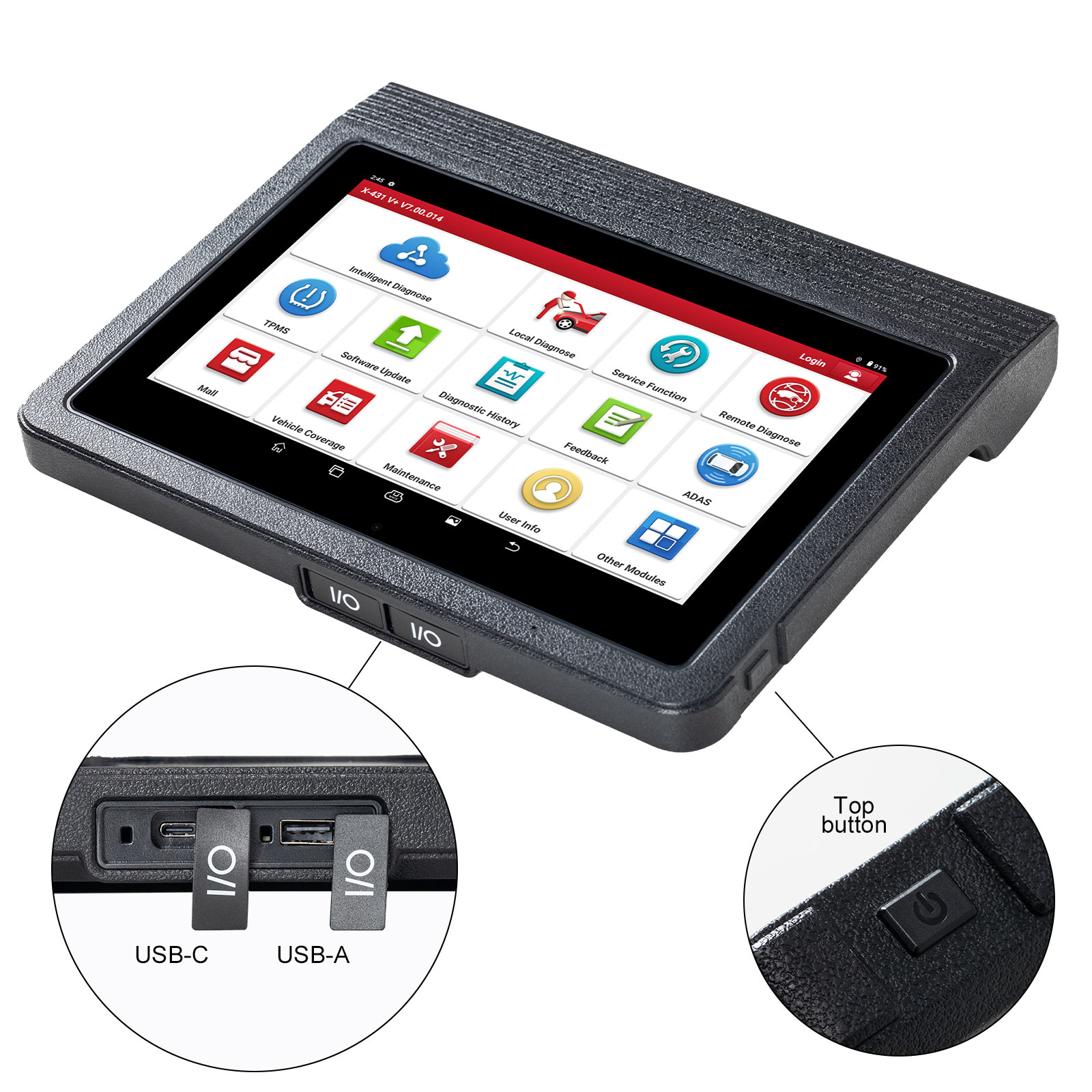

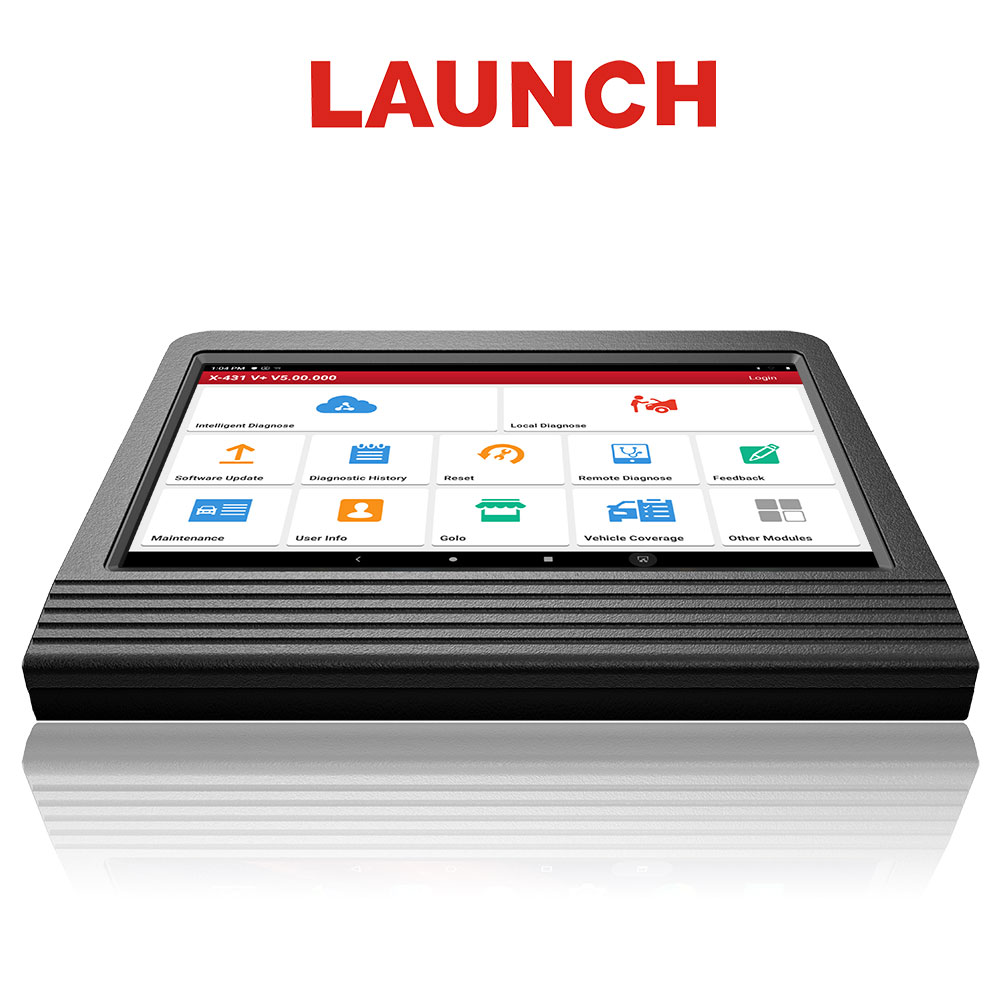

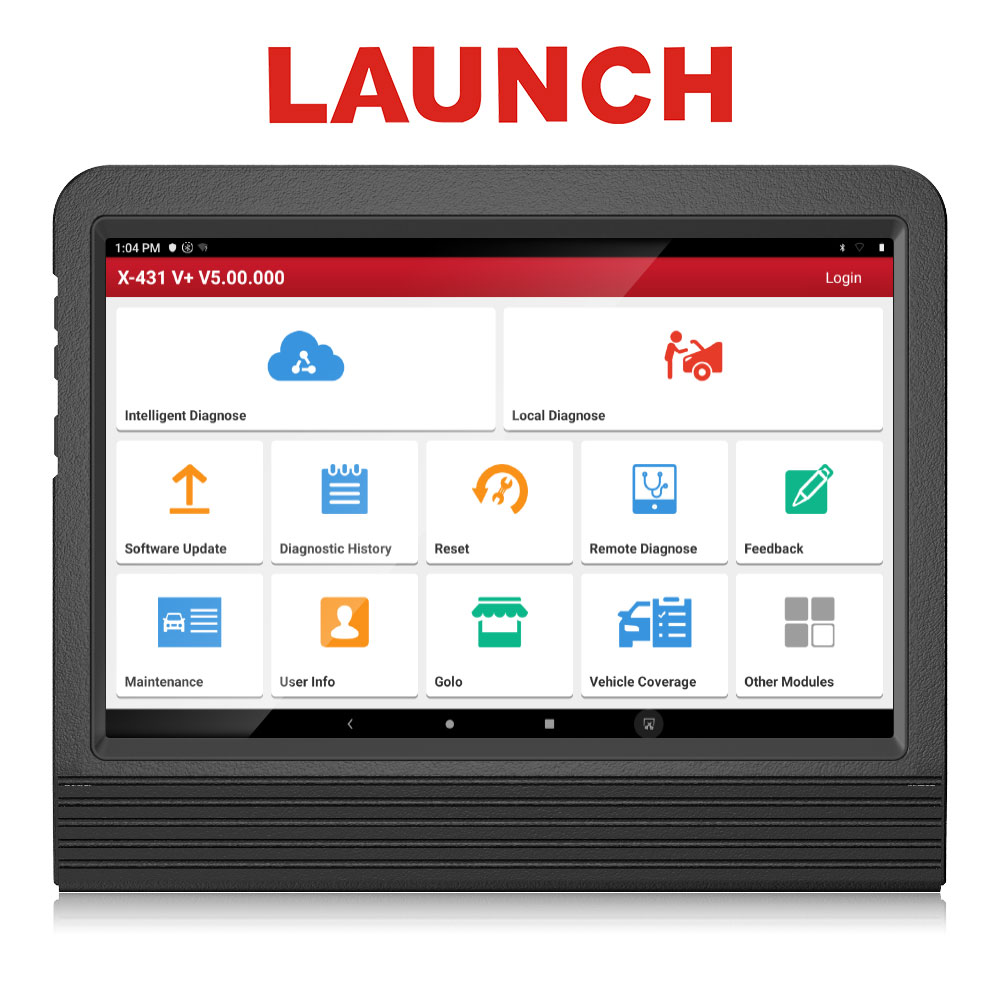

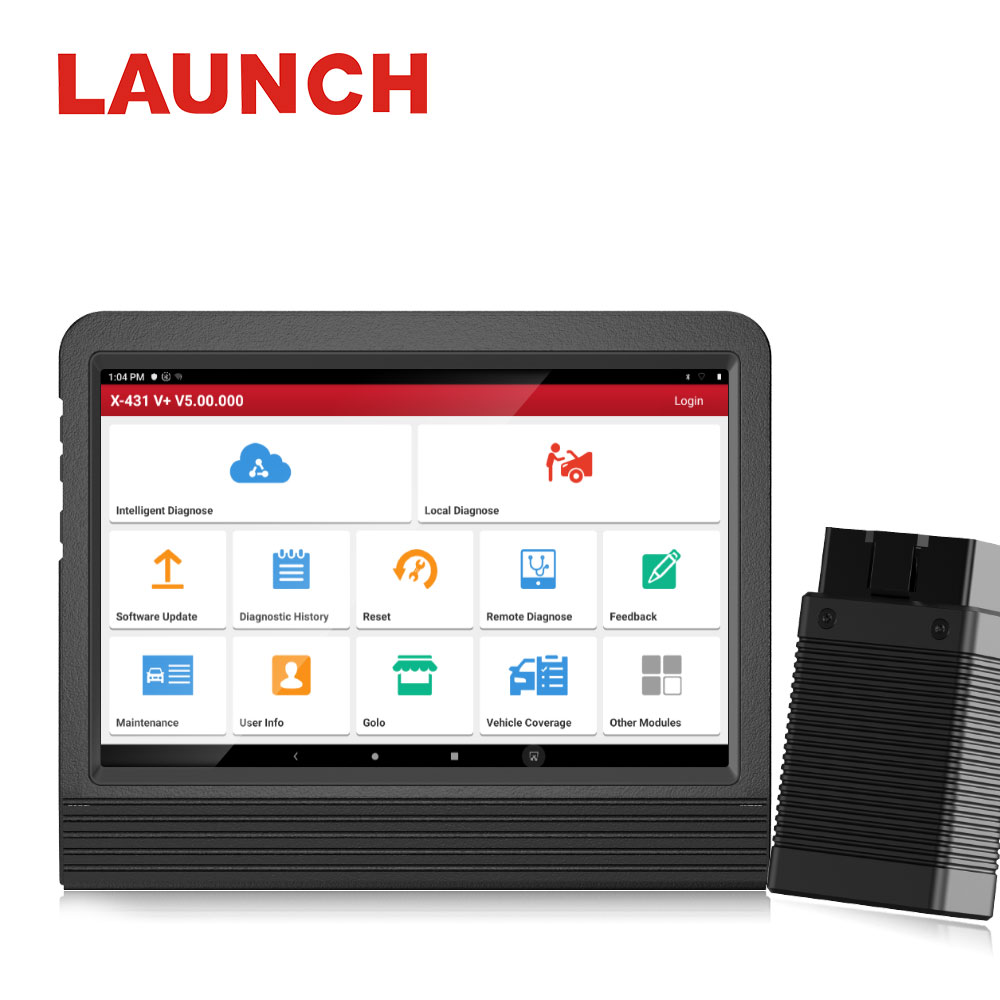

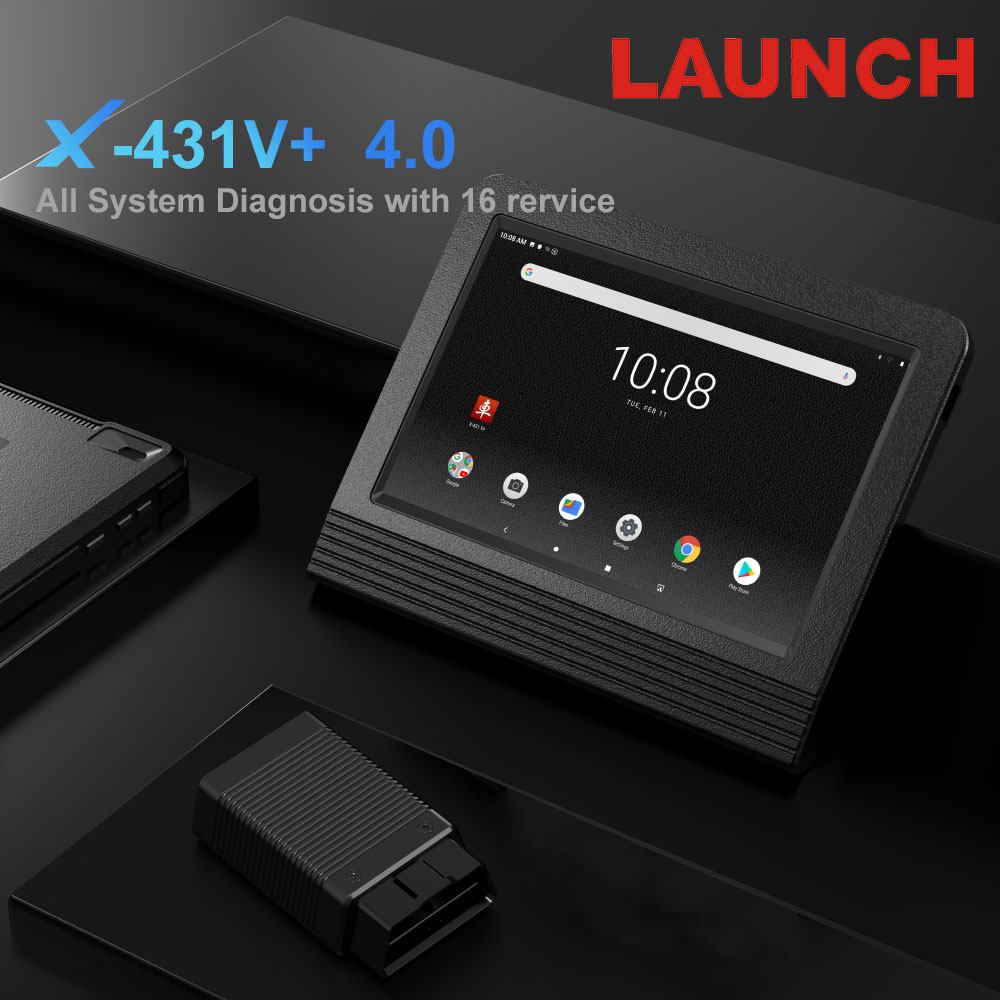

LAUNCH X431 V+ V5.0 is a typical diagnostic device contributed by Launch to diagnostic industry concerning Internet application, which is a 10.1-inch advanced smart car diagnostic device developed based on Android 10.0 system. It uses a 2.0Ghz 4-core high-efficiency processor, 4GB RAM + 64GB ROM large storage, and is equipped with a high-endurance battery. It runs faster, more stably and lasts longer. V+ not only supports passenger car diagnosis but also supports commercial vehicle expansion modules, making the diagnostic function more powerful. X-431 PRO3(V+ 5.0) covers more than 98% of the cars on the market.
Launch X431 V+ 5.0 10.01 Inch X431 X431V PLUS Wifi/Bluetooth Full System Diagnostic Tool (Updated Version of V+ 4.0)
X-431 V+ is a new Android-based vehicle trouble diagnostic device developed for internet applications via Bluetooth/Wi-Fi. X431 V+ combines the advantages of X-431 IV and X-431 Diagun III. X-431 V+ is suitable for a wide vehicle coverage, it can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circles. X-431 V+ could support 12V light trucks. Moreover, X-431 V+ could coordinate with X431 Smartlink C2.0 Truck Module, then could support 24V trucks.
Highlights:
1. Global Version, No IP Limitation 2. Vehicle Coverage: Supports about 80 car brands from USA, European, Asian and so on. 3. 2 Years Free Update Online. When Free Update Expired, Update Cost will be $450 for One Year and $599 for Two Years. 4. Supports More Advanced Functions, including Actuation Test and Guiding Functions (compatible with VW, AUDI, SKODA, SEAT). 5. Diagnostic Services: (OE-LEVEL Full System Diagnosis, Auto VIN & Scan, Bi-bidirectional Control) 6. Maintenance Services: (37+ Reset Service Maintenance, ECU Online Coding, Initialization, VAG Guided Functions, Programmable Modules Installation, Flash Hidden Functions, etc ) 7. Support Multi-Language: English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Dutch, Danish, Korean, Finnish, Swedish, etc 8. Support Diagnosing Heavy Duty Trucks with Extra X431 Smartlink C2.0 HD Module: You can purchase additional heavy-duty truck diagnostic module (a Bluetooth adaptor) that works with X431 V+ to diagnose all systems on trucks. 9. Support Extension Modules: (So that you can perform more comprehensive vehicle inspections with LAUNCH X431 V+)
* X431 PRO G3 (IMMO For VAG Group Above 3.5)
* Launch BST-360 (Test Your Battery with Accuracy and Simplicity)
* X431 Heavy Duty Module (Diagnose gasoline vehicles & Diesel Trucks)
* X431 TSGUN (Activate all sensors, tpms relearn, program only Launch Sensors)
Newly-Added Functions, Realize More Possibilities
LAUNCH has always valued suggestions, and it is the driving force behind our continuous innovation and improvement, we bring more new features for our high-end car scanning tablet X431 V+, such as:
Pilot Quantity Learning: Carry out a procedure to teach the ECU the ideal Pilot Injection for the engine.
FSC (Forward Sensing Camera) Aiming: Store the camera shot angle in the FSC by reading a target used for aiming into the FSC. The FSC aiming procedure is performed after replacing the FSC, the FSC clip.
Seat Belt Reminder Warning: Turn on or turn off the seat belt warning according to your preference.
Transmission Adapting: Reset the transmission’s control unit such that the stored shift pressure and timing values that have been learned over time are reset to default values.
Au-di /VW firmware protection cancel features: One feature most techs really want is to remove firmware protection from their cars. This feature helps mechanics replace car parts. Carry out car modifications.
(PMI) Programmable Module Installation: LAUNCH X431 V+ 5.0 escaner para autos support PMI function, Compatible with Ford /Lincoin/ Mazda etc.This function is used when you need to replace a module (replace ECU) or initialize a module.No need using the J2534 or buying a subscription.
Functions:
ECU Coding – Help the newly replaced ECU/module to work properly
Why does the car not work properly after replacing the ECU/module?
When the ECU/module is damaged, replacing it with a new ECU/module is necessary. After processing the replacement, you must follow the manufacturer’s strict procedures for matching, learning, coding, and even programming it to get the car to run properly. Otherwise, the car could not start, or some parts will not work. Launch scanner X431 V+ 5.0 can help you do that.
Code Adaptive Data: Every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH X431 V+ escaner automotriz professional has the ECU coding function to recognize new actuators after you change the fault actuators or parts. Recognize Replaced Modules: ECU coding enables multiple car systems to recognize each other and then the actuators can start to work. Flash Hidden Functions: This feature is used to activate hidden features that most car manufacturers include that are not available to the average car owner. Examples include corrective fuel consumption calculation, seat belt warning, auto start/stop, hidden menus, daytime running lights, cruise control, automatic locking and unlocking of the central locking, comfort windshield washer, welcome lights, etc. To enable most of these functions, it is enough to activate them (in the car’s “brain”), while for some others it is necessary to install additional missing modules in the car.
1. Variant Coding (Offline Programming): Compatible with Ford, Mazda, Vauxhall, Opel, etc.
Variant coding is programming ECUs to meet vehicle variants, such as left-hand drive or right-hand drive. Some states/countries require the automatic activation of the headlights while driving, which results in another vehicle variant. Variant coding includes the enabling and disabling of software-driven functions.
2. Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Having the boot function means that you have an expert who is ideal for your repairs. It frees you from the hassle of finding automatic channel numbers and login codes. It consists of a detailed operating guide and operating instructions. For different car models, the X431 V+ scanner will provide you with specific instructions on auto-login, matching, setup and coding.
3. IMMO Keys: Compatible with Volkswagen / Audi / Skoda / Seat etc.
Disable lost keys to prevent the car from being stolen, add new keys, and match replaced IMMO module. For more advanced IMMO programming functions, X431 V+ can use with PROG 3 key programmer.
4. Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.This function matches and synchronizes the components with each module after you replace the module, such as Gearbox Matching / Air Suspension Matching / Seat Matching / Headlight Fitting / Door and Window Initialization Study / Sunroof Initialization / Injector Calibration / Multimedia Video Reset / Cluster Reset / Immobilizer Service / Tire Change Reset…etc.
5. ADAS Calibration:
Compatible with LAUNCH X431 ADAS Mobile to calibrate advanced driver-assistance systems, such as ACC, AEB, and more. ADAS Calibrate a wide range of camera-based & radar-based driver assistance systems, Operate ADAS calibration to vehicle cameras, LKA system, ACC system, LDW system, and AVM system. ADAS is designed to improve driver, passenger and pedestrian safety by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver remain in control in order to prevent an accident and, if necessary, reduce the severity of an accident if it can’t be avoided.
6. (PMI) Programmable Module Installation:
LAUNCH X431 V+ 5.0 escaner para autos support PMI function, Compatible with Ford /Lincoin/ Mazda etc.This function is used when you need to replace a module (replace ECU) or initialize a module.No need using the J2534 or buying a subscription.
7. Power balance Test:
Cylinder power balance-test can help uncover hidden engine issues related to engine misfires, lack of power or just a poor running engine, which is commonly missed with other tests. So, cylinder power balance-test, is one of the best and easiest ways to find the source of a engine misfire. Furthermore, cylinder powerbalance-test is often used along with a cylinder compression and cylinder leakage tests to further pinpoint the problem.
8. Audi /VW firmware protection cancel features: One feature most techs really want is to remove firmware protection from their cars. This feature helps mechanics replace car parts. Carry out car modifications. 9. Cylinder Balance test/Cylinder leakage test/Cylinder Pressure variations/Relative Compression Test.
All System Diagnosis – Reads/Erase Trouble codes, data stream info. and more
LAUNCH X431 V+ can read DTCs and data streams for ALL systems to diagnose car comprehensively including Fuel system, Emission system, Transmission, Engine, Body, Powertrain and more, thus users don’t have to buy other tools for diagnosing systems for time & money saving.
All System Bidirectional Scan Tool: LAUNCH X431 V+(Bigger,Bidirectional,Better )
With this diagnostic tool’s Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control: Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door l-ock … （Available test varies by the vehicle manufacturer, year, and model.）
Auto VIN & Scan
Instead of entering the Vehicle VIN number manually, this professional diagnostic scanner comes with efficient Auto VIN Technology for retrieving vehicle information in just one touch, so the users are capable of quickly diagnostic all the ECUs on their vehicles and running a diagnosis on the selected systems.
37+ Mechanics Frequently USED Service Functions (21 special functions in Menu, many special function are done in car software, please note):
ECU CODING – The Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements. OIL RESET – Reset the oil life systems every time the oil and oil filter are changed; INJECTOR CODING– Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed; BRAKE RESET – Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.; SAS RESET – Perform steering angle sensor calibration and clear records; BAT.RESET – Evaluate the battery charge state, monitor the closed-circuit current, register the battery replacement, etc.; ABS BLEEDING– When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity; ELEC.THROTTLE RLRN – Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state; TPMS RESET – Tire pressure resetting is required to be performed after maintenance is performed; DPF REG – Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance; GEAR LEARN – Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced; KEY PROGRAMMING – Help ECU to recognize the new keys when you need to add new keys. MORE ADVANCED FUNCTIONS ADDED: Windows Calibration + Seats Calibration + Tyre reset + Language Change + A/F Reset A/F + Coolant Bleed + Transport Mode + Adblue Reset + NOx Sensor Reset NOx + Stop/Start Reset + SCN Coding(!!! only LAUNCH X431 V + has this function while V PRO does not)
GROWING FUNCTIONS:
Accompany with continuous update of Launch X431 software and program, More functions has been added : Head light Fitting, Seat Matching, Door and Window Initialization Study, Sunroof Initialization, Air Suspension Matching, Gearbox Matching, Injector Calibration, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change Reset, (depending on the specific car models, not for all cars, ). and more and more function will be improved and optimized.
Remote Technical SupportBy using this function, users can receive ad-hoc remote support from LAUNCH’s technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the TeamViewer software.
Extensive Vehicle Coverage – 108 Car Brands and 10000+ Cars supported:
Aisa: Changcheng, Daewoo, Huachen, Zhongxing, Indian Tata, JAC, Maruti, Perodua, Chery, Isuzu, Jinlong, Suzuki, Saipa, HM, Hmazda, Ikco, Malaysia Proton, Luxgen, Toyota, Changan, Futian, Honda, Wuling, V-class, Jpisuzu, Kia, Indian Maruti, Indian Mahindra, Malaysia Perodua, Hafei, Lifan, Mahindra, Nissan, Xiali, Zhongshun, Tata, Changhe, China GM, Saicmg, Mazda, Zhongtai, Daihatsu, BYD Flyer, Hyundai, Proton, Subaru, Ssangyong, Joylong, Mitsubishi,Gonow, Qoros, Maxus, Mvm
1. LAUNCH X431 V+ supports Guiding Functions for VW,AUDI,SKODA,SEAT, while X431 V dose not support. 2. You can use LAUNCH X431 V+ longer and avoid frequent charging, because its battery life is 1.49 times that of V. 3. LAUNCH X431 V+ is based on Andoird 9.0 , with 8-core 1,8GHz CPU, while LAUNCH X431 V is based on Andoird 7.0 with 4-core 1,4GHz CPU 4. The screen size of LAUNCH X431 V+ (10.1 inches) is larger than V(8 inches). One screen can display 15 data stream (Graphic and textual), three more than V, which is easy to navigate. 5. LAUNCH X431 V+ is compatible with LAUNCH X431 heavy duty modules (need to be purchased separately) and becomes a diesel-integrated diagnostic device with more powerful functions. LAUNCH X431 V Pro is not compatible with heavy-duty module. When you need to diagnose heavy-duty trucks, you need to purchase the heavy-duty full system diagnostic tool for $1,299 if you have a V. However, if you have V+, you only needs to purchase the heavy-duty module for $799, which is more economical and convenient.
FAQ:
Q: How to save power? A: Please turn off the screen while X-431 PRO3 keeps idle. Set a shorter standby time. Decrease the brightness of the screen. If WLAN connection is not required, please turn it off. Disable GPS function if GPS service is not in use.
Q: Can you verify if this does most diesel as well like toyota, isuzu, and mitsubishi mostly japanese models. A: Dear sir, here is the vehicle coverage: if you need to confirm , please tell us the VIN ,car model and year for confirmation. Ford, Chrysler, GM, Mercedes Benz, BMW, Fiat, Peugeot, Saab, GMSA, EOBD2 Cars, Jaguar, Renault, Smart, Sprinter, VAZ, VW, Dacia, Land Rover, Romeo, Porsche, Volvo, AUDI, Citroen, Lancia, Acura, Daweoo, Lexus, Holden, Maruti, Tata, Infiniti, Proton, Isuzu, Mazda, Suzuki, Daihatsu, Mitsubishi, Toyota, Hyundai, Kia, Nissan, Subaru, Honda
Q: Does this tool offer super car diagnostics? ferrari, maserati, lamborghini? clutch pid, service reset etc A: X431 V+ can test ferrari, maserati but not lamborghini, it can not only do clutch pid, service reset these basic function on your ferrari, maserati, but also can do such as battery reset, brake reset, oil reset, ABS bleeding, throttle adaptation, TPMS reset, DPF regeneration, gear learning and IMMO, etc
Q: Can this scanner perform crank position relearn and idle relearn and can it do a crank position relearn on a 2007 subaru 2.5 A: Sure, of course, still it can do key match, battery match, throttle match, epb reset, tpms reset, sas reset ,oil light reset, injector program, and this red outlook version is with 2 years free update, very economical, and now we are conducting promotion, please don’t hesitate, have any problem just contact us.
Q: Does it give full diagnostic on diesel vehicles? A: This diagnostic tool can work on some 12V diesel vehicles, if you need to confirm, please email us your car model, year and VIN, we will tell you the result.
Q: How to do if the system runs slow? A: In this case, please do the followings: > Check all running applications and stop the unnecessary applications (Steps: Settings > Apps > Running > Tap the desired application and then tap “Stop”). > Check all installed applications, remove the unnecessary applications (Steps: Settings > Apps > Downloaded > Tap the desired application and then tap “Uninstall”). If all steps mentioned above are finished and the system still works slowly. Please try to close the system and reboot your X-431 PRO3.

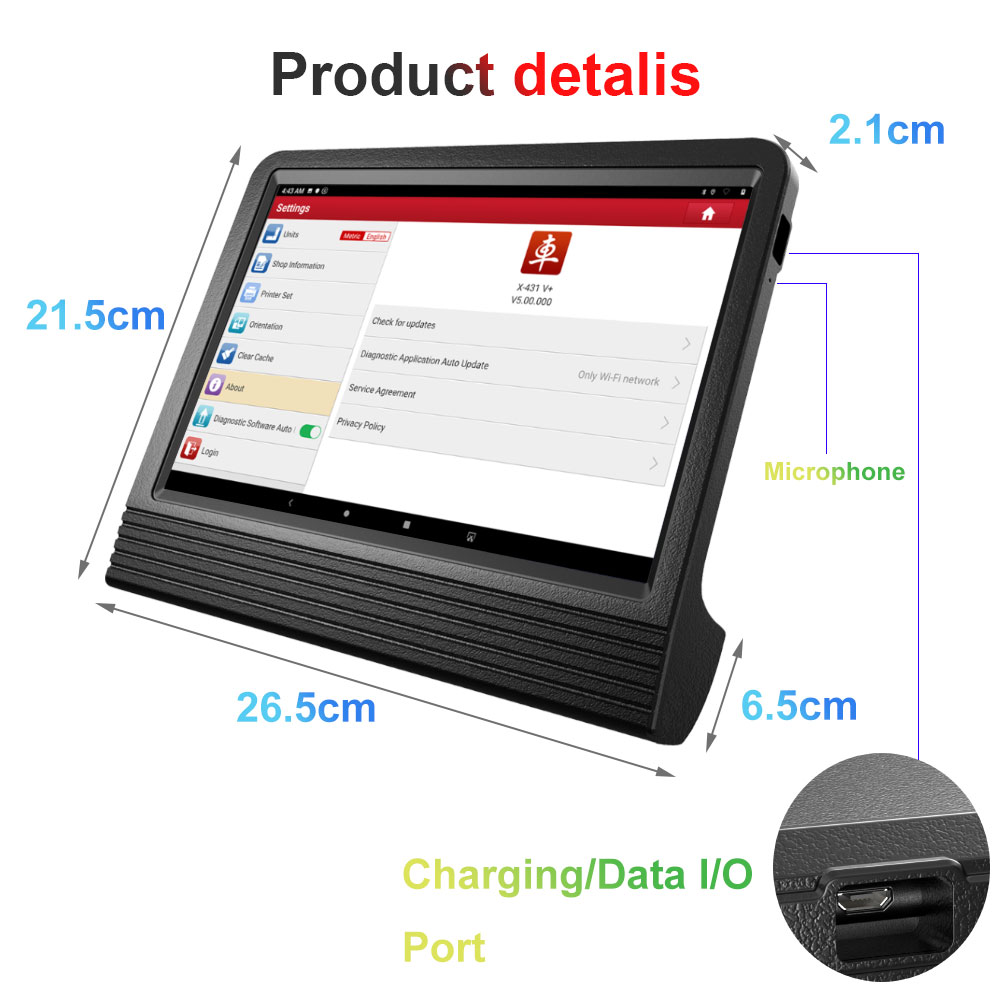

X431 V+ Tablet Parameters
Operating System
Android 10.0
CPU
4-core 2.0GHz
Battery
6300mAh rechargeable polymer lithium battery
Memory
4GB
Storage Capacity
64G (can be expanded to 128GB)
LCD
10.1 inch
LCD Resolution
1920*1200 IPS
Touch Screen
Capacitive Touch Screen
Cameras
5.0 mega pixels front and 8.0 mega pixels rear
Wi-Fi
802.11a/b/g/n/ac (2.4GHz / 5GHz)
Bluetooth
Supported
Working Temperature
0℃ ~ 45℃
Storage Temperature
-20℃ ~ 70℃

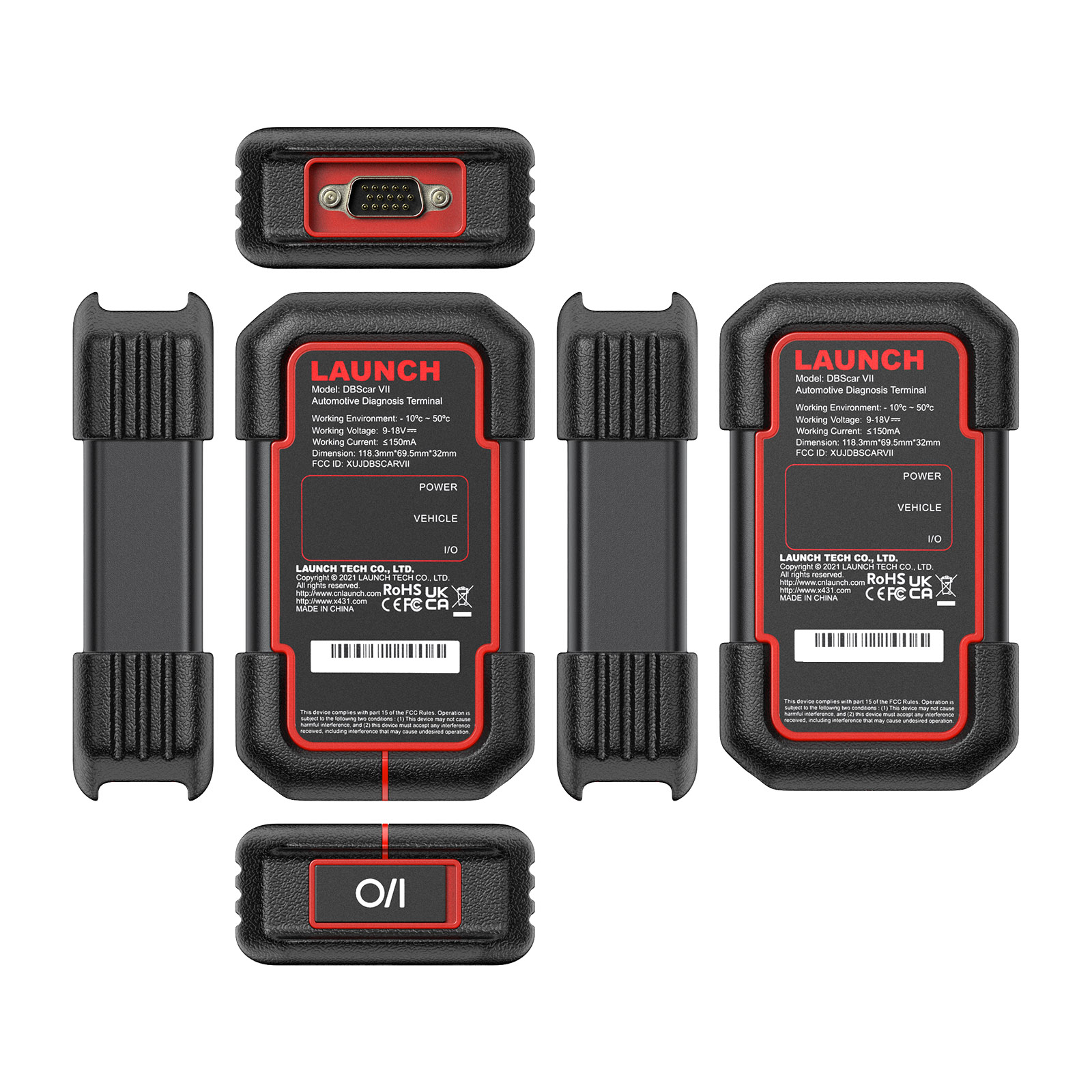

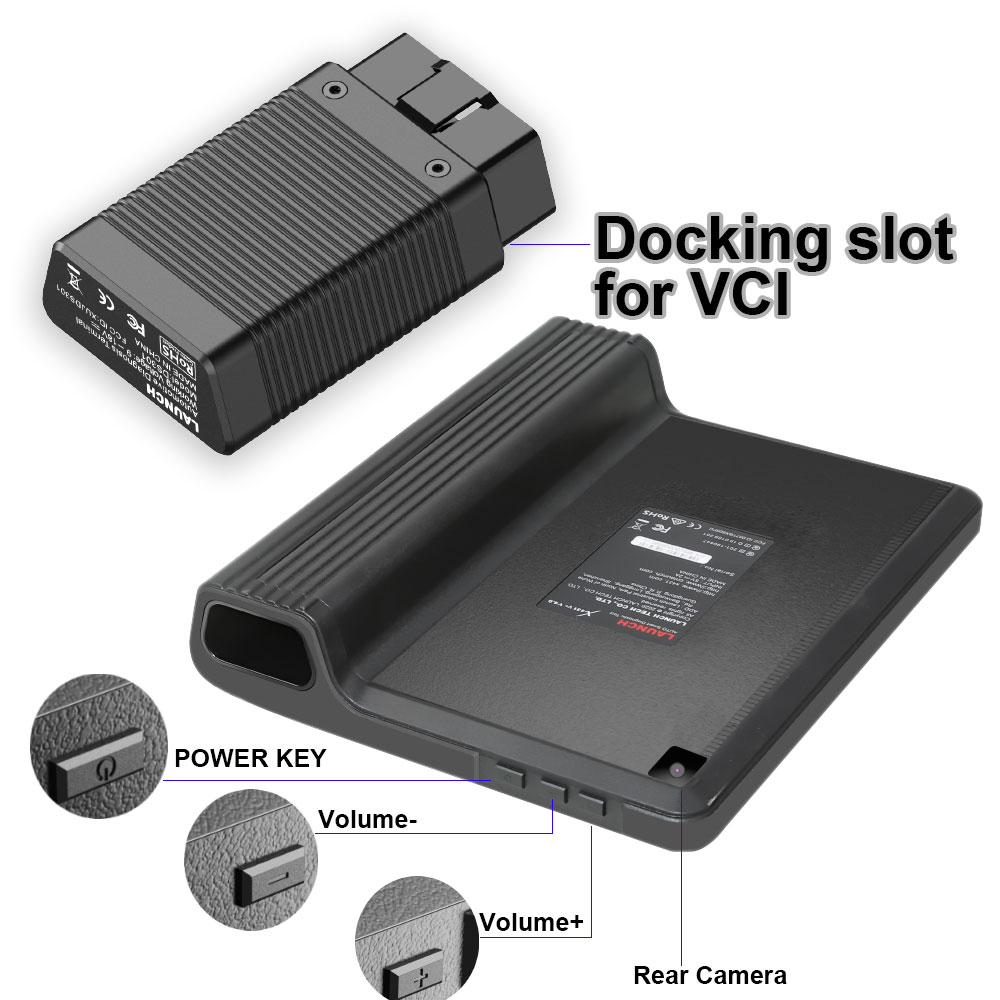

DBSCar Connector Parameters
Connection
Bluetooth
Typical Power Consumption
(12V)Static current 25 mA
overall unit average current
35 mA
Working Temperature
0 °C~50°C
Working Voltage
powered by vehicle battery, DC 9V-18V

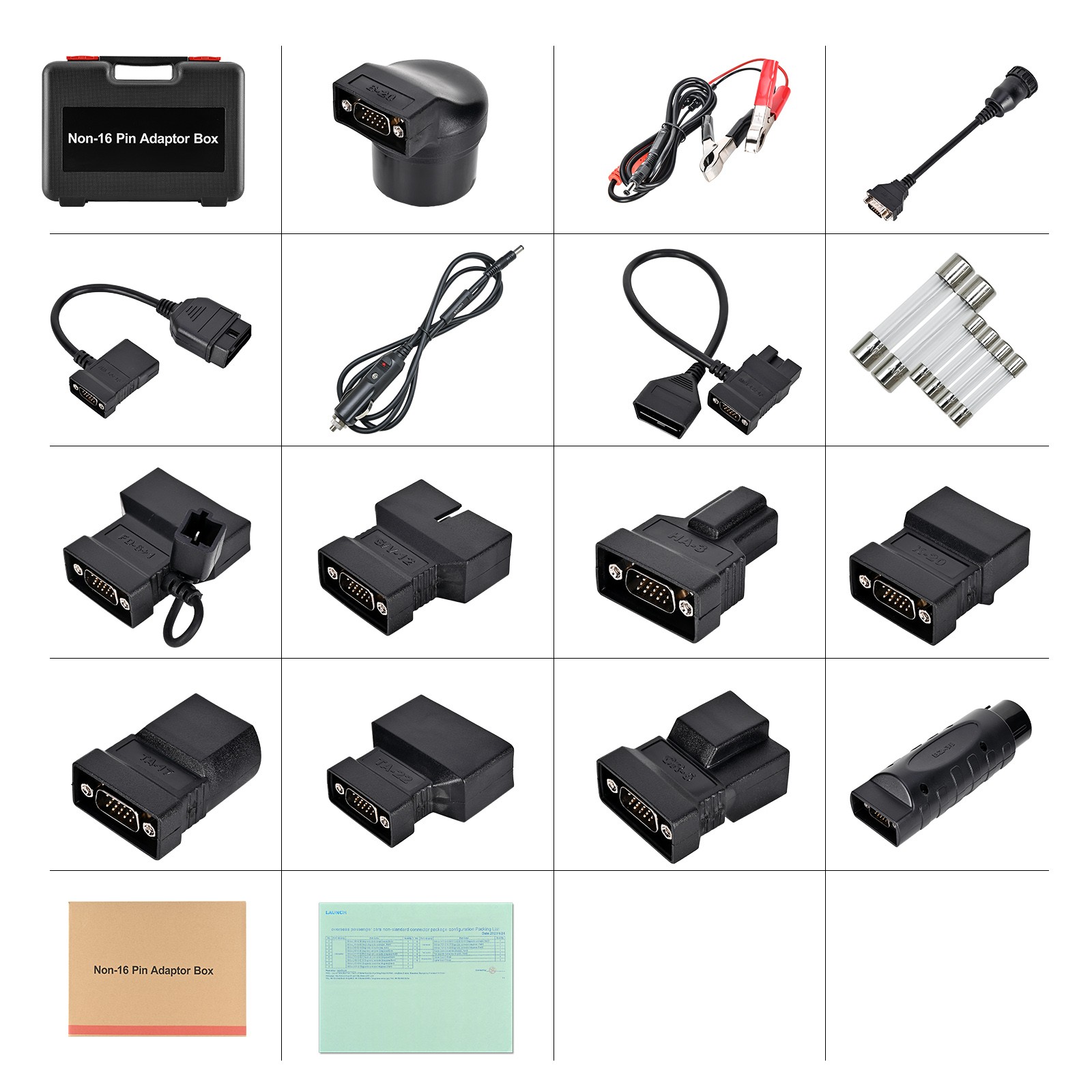

Kindly note:Because of unnecessary needs of diagnostic market , LAUNCH factory doesn’t provide COMBI-4,FUSE,SEDAN-3,FORD-20,SMART OBD 22-16E these 5 adpaters. You can also check the packing list for details when you receive LAUNCH X431 V Plus,thank you!

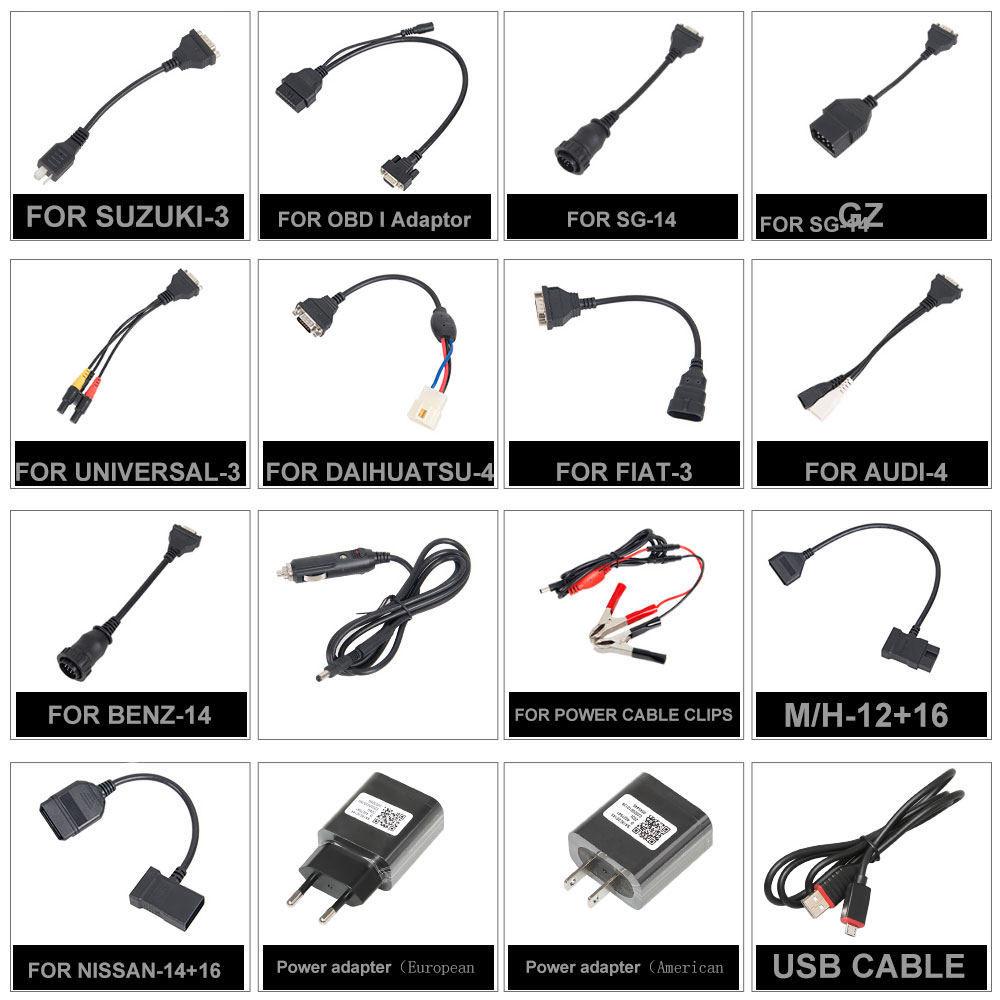

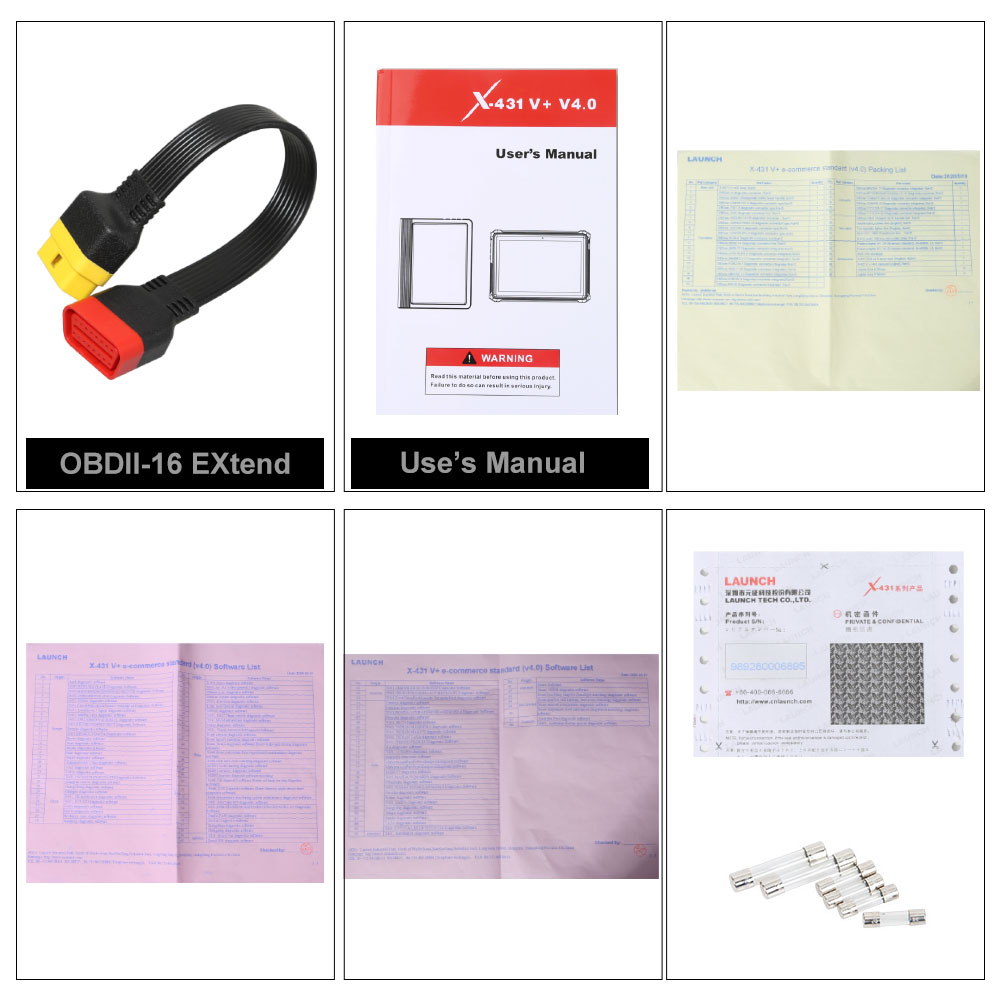

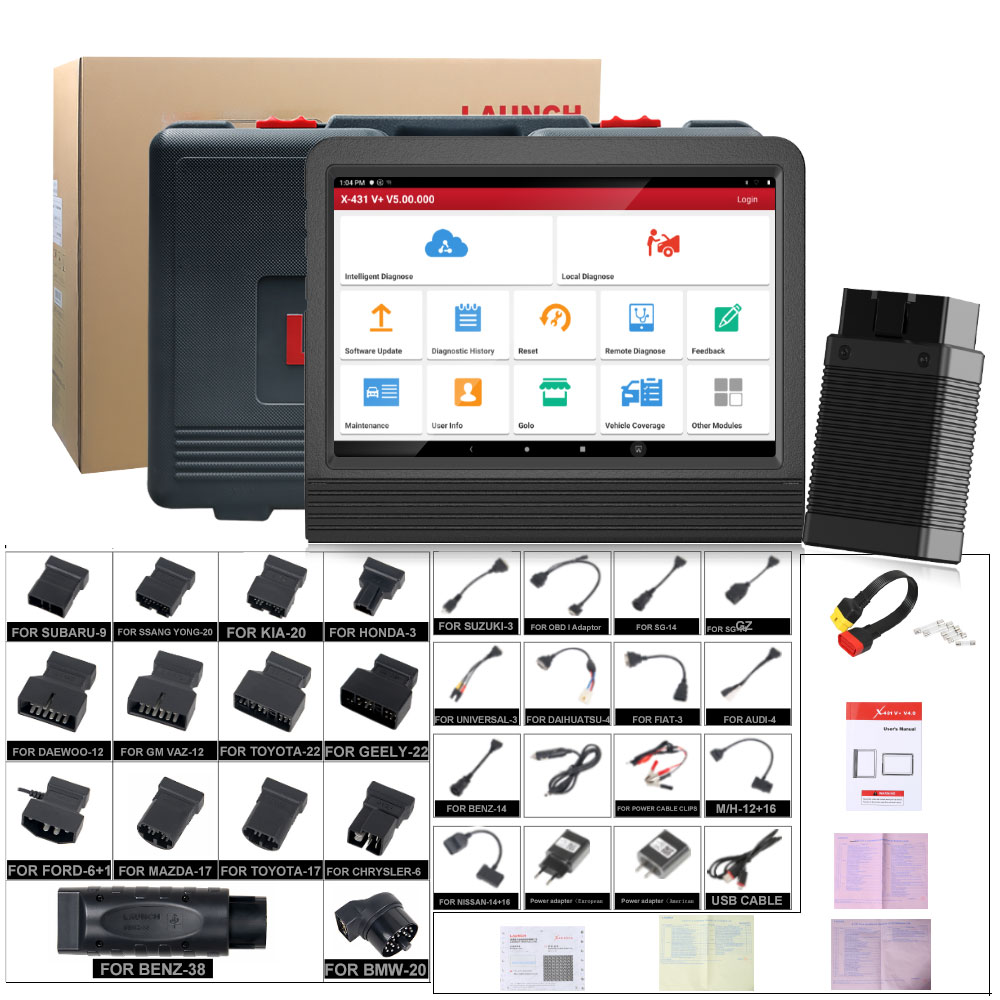

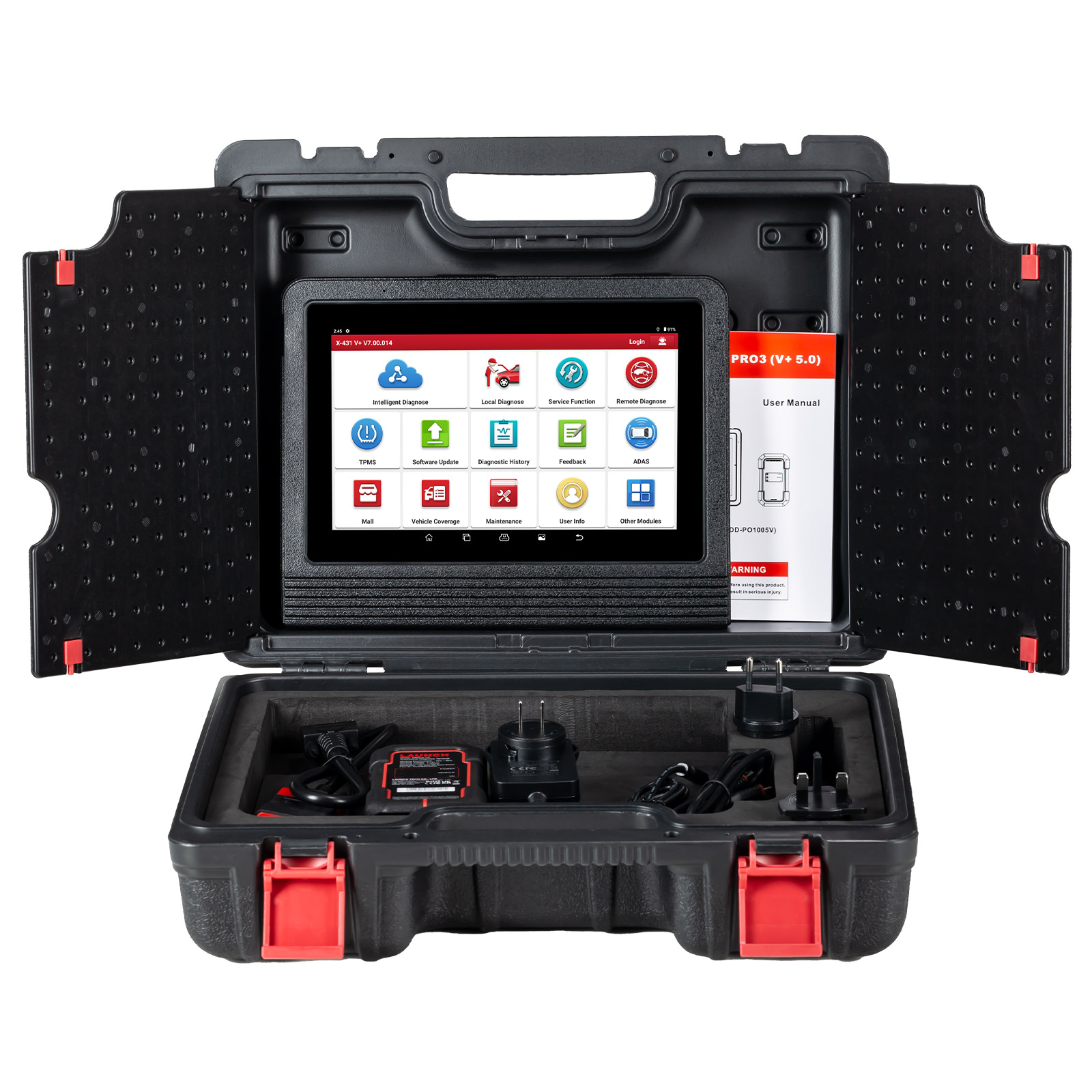

Package Includes:
1pc x tablet

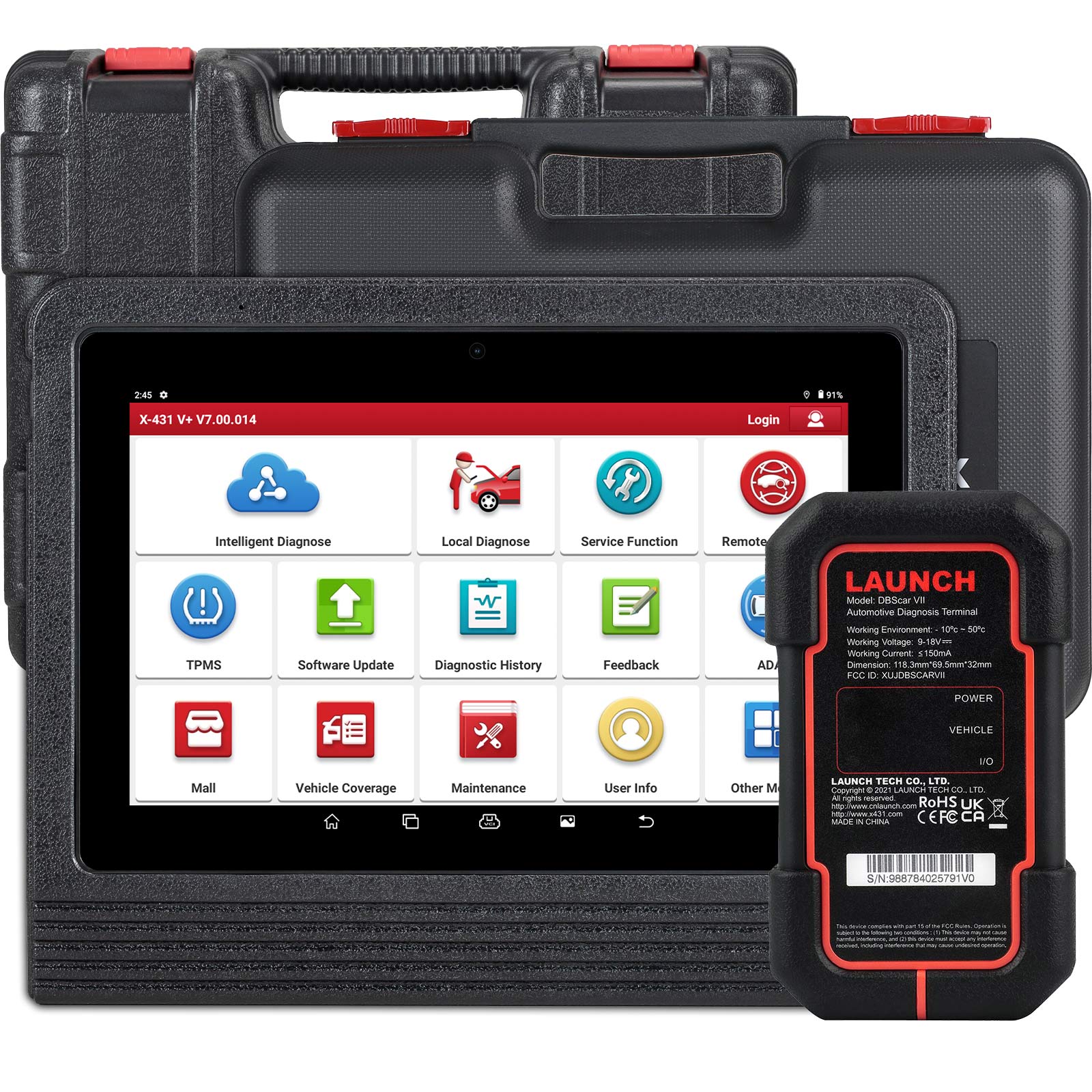

1pc x DBSCar VII diagnostic connector
1pc x Power adapter
1pc x OBD main cable
1pc x USB cable

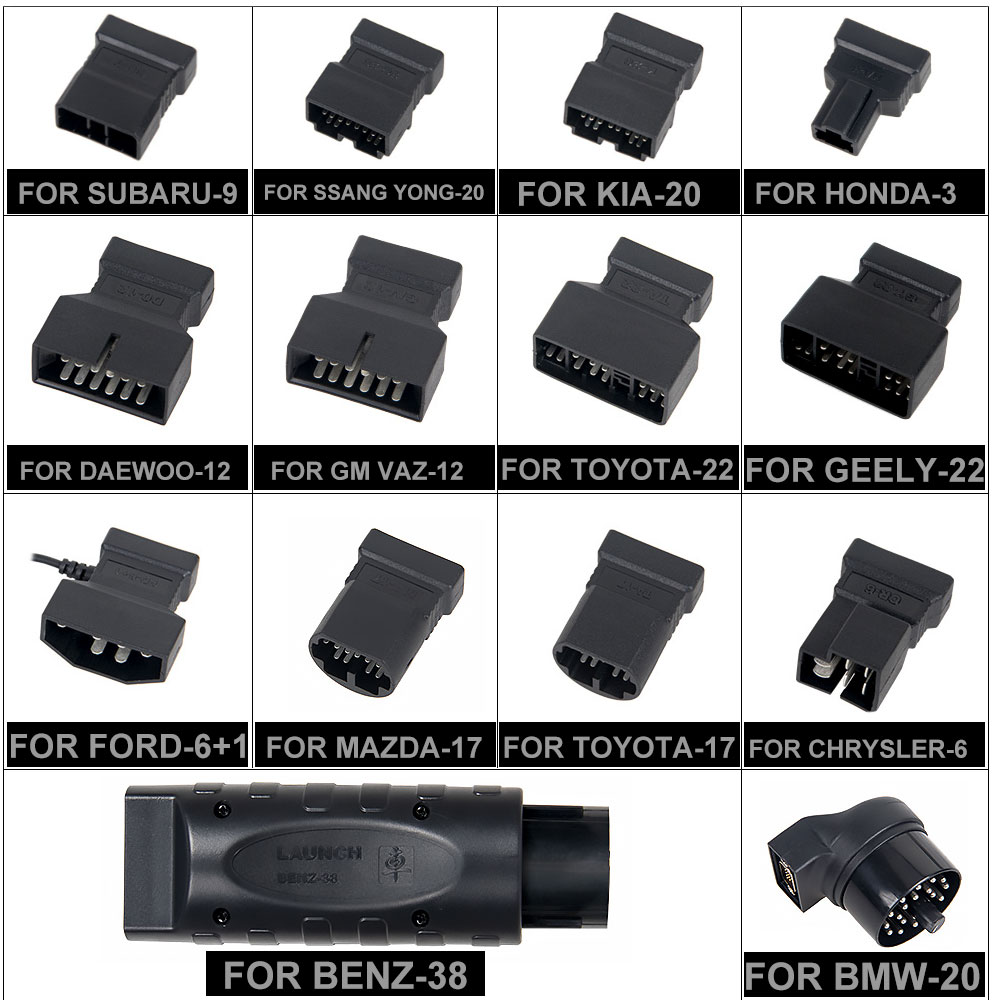

1pc x BENZ-38 connector
1pc x BENZ-14 connector
1pc x NISSAN-14+16 connector
1pc x BMW-20 connector
1pc x CHRYSLER-6 connector
1pc x FORD-6+1 connector
1pc x GM/VAZ-12 connector
1pc x HONDA-3 connector
1pc x KIA-20 connector
1pc x MITSUBUSHI/HYUNDAI-12+16 connector
1pc x TOYOTA-17 connector
1pc x TOYOTA-22 connector
1pc x Double clamp power line connector
1pc x The cigarette lighter connector
1pc x UK standard conversion head
1pc x EU standard conversion head
1pc x US standard conversion head
1pc x Password envelope
1pc x Manual
1pc x Quick start
