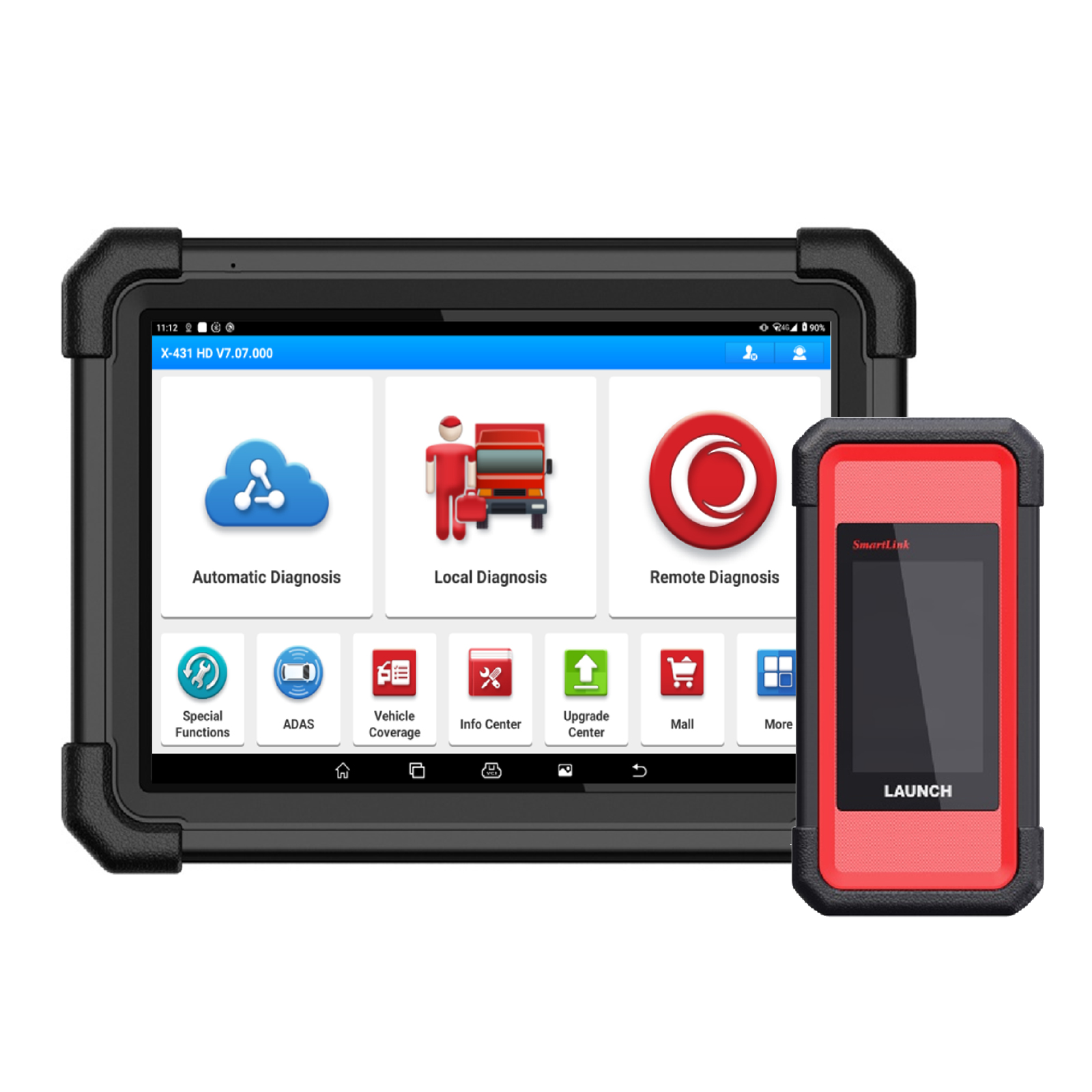

LAUNCH X431 V+ SmartLink HD Commercial Vehicle New HDIII Heavy Duty Truck Diagnostic Scanner Automotive Diesel Machinery Bus Scan Tool

LAUNCH X431 V+ SmartLink HD Commercial Vehicle New HDIII Heavy Duty Truck Diagnostic Scanner Automotive Diesel Machinery Bus Scan Tool

LAUNCH X431 V+ SmartLink HD diagnostic tool is suitable for Customers who mainly repair trucks /Diesel vehicles /machinery / Commercial Vehicles. ‎LAUNCH X431 V+ SmartLink HD includes software Truck, Trailer, Bus, Construction Machinery, Agricultural Machinery, Vessel, Commercial vehicles. Which is the updated version of: LAUNCH Heavy Duty Diesel Truck Diagnostic Tool

Launch X-431 V+ SmartLink HD Features:

• Based on Android 10.0 system
• Designed with a bracket for easy lifting and hanging
• It uses a 1.8Ghz 4-core high-efficiency processor, 4GB RAM + 64GB ROM large storage
• It is equipped with a high-endurance battery to run faster, more stably, and last longer.
• Powerful hardware upgrade; Industrial grade anti-fall design; Strong battery life
• Come With standard new SmartLink C 2.0 diagnostic connector makes the diagnostic function more powerful
• Supports system-wide fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action testing.

Launch X-431 V+ SmartLink HD Main Functions

Including intelligent diagnosis, traditional diagnosis, remote diagnosis, special functions, ADAS, testable models, information center, upgrade center, mall, and more functions. More pages include personal center, diagnostic records, diagnostic feedback, product manuals, FAQs, and toolboxes.

Remote diagnosis
Super remote diagnosis is based on SmartLink C-side diagnostic box and vehicle link. Maintenance technicians can use X431 diagnostic equipment, original equipment or other third-party brand equipment to remotely detect, diagnose and program the vehicle through the Launch server platform. This feature requires purchasing a point card to use.

Intelligent diagnosis
Adopts modular design to reduce redundant scanning steps and make diagnosis more accurate and efficient.

Traditional diagnosis

The diagnostic software in the traditional diagnostic function is classified by brand and vehicle type to solve the problem of menu confusion in the past. Technicians can quickly select the required diagnostic software through different menus to improve work efficiency.

Read data stream
Supports diverse data stream display modes and user-defined standard data streams.

ADAS
Commercial vehicle ADAS calibration function, product introduction, product manual, adjustment steps, vehicle model coverage and other document functions.

​

Special function

It supports 6 special functions commonly used in most car models, such as DPF, parameter setting, cylinder cutoff test, maintenance reset, injector programming, speed limit adjustment, etc., and is continuously updated.

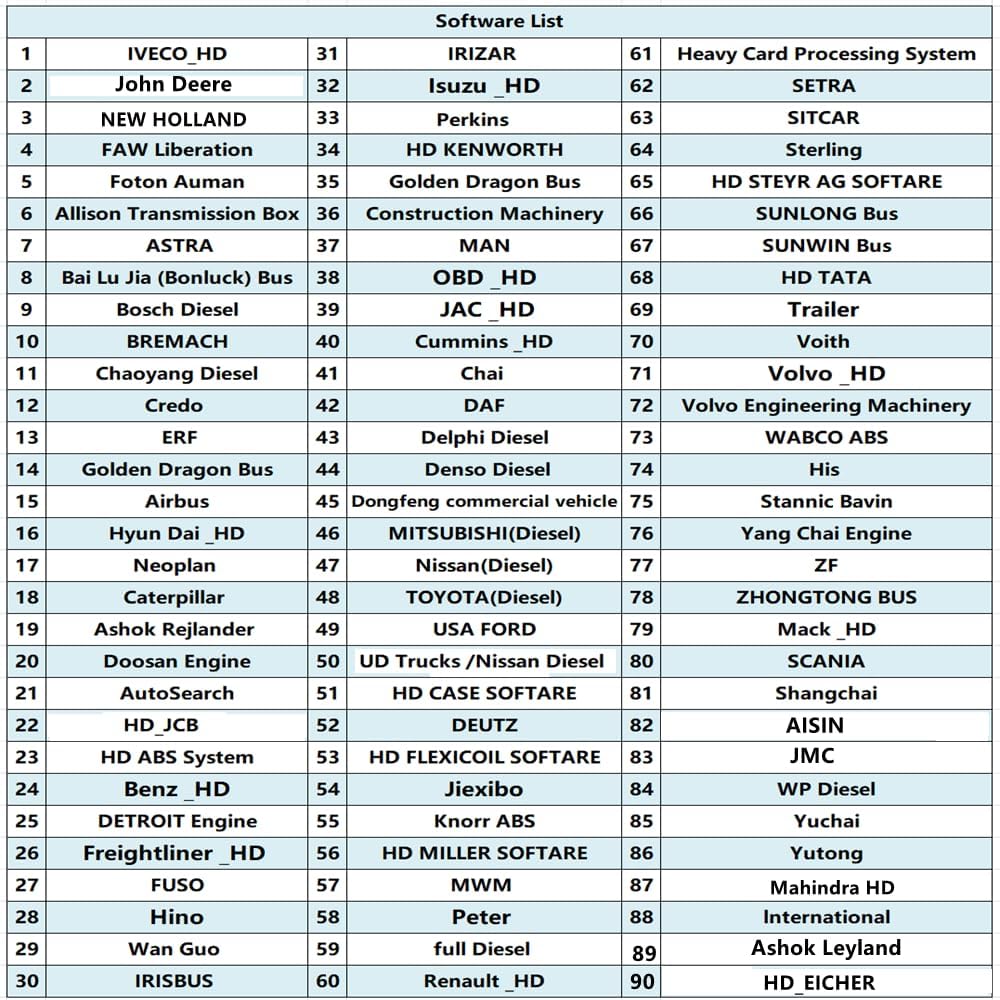

Support Car List

Launch X-431 V+ SmartLink HD Parameters
Processor 2.0GHz 4 core
Operating system Android 10.0
Memory 4GB
Storage 64GB
Battery 47880mWh (7.6 V, 6300mAh)
Display 10.1 inches 1280*800
Camera rear 8 million pixels
WIFI 2.4GHz/5GHz (dual band)
Interface TYPE A *1 &TYPE C*1
Working temperature 0~50℃
Size 274*190.5*40.5mm

SmartLink C 2.0 Parameters

CPU dual processor Cortex-A7+Cortex-M7
Operating system Linux
Resolution 320×480
Power consumption < 6w
Storage 8GB
Memory 256M
Working temperature 0℃~50℃
Working voltage 9V DC—36V DC
Dimensions: 200mm×110mm×47mm
Communication method WIFI/Bluetooth/Ethernet
